BOLA Propeller Stirrer Shafts EX (PTFE-EX ) - L 350 mm Ø 8 mm aØ 75 mm
Regular price
$ 380.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Propeller Stirrer Shafts EX (PTFE-EX ) - L 350 mm Ø 8 mm aØ 75 mm
Product Description
PTFE-EX jacketed stainless steel shaft, propeller completely made of PTFE-EX with three 45° angled round or angular blades. Good chemical resistance the product is only exposed to PTFE-EX.
Applications

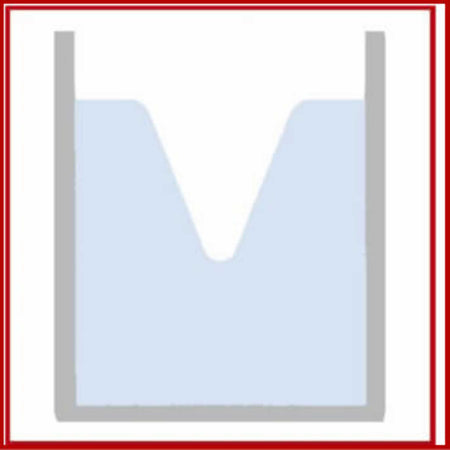

The product is sucked bottom-up, good axial flow with low shear force. Earthing is made for example via a stirrer bearing made of PTFE-EX (Cat. No. C 423-08).
Specifications:
| Model | C278-12 |
| Chemical resistance | ++ very good |
| Conductivity | 1.000 kOhm |
| Material | PTFE EX |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 6,5 |
| Dimensions according to drawing [A - B - C mm] |
75 - 18 - 3,0 |
| Length [mm] | 350 |
| Shaft dia. [mm] | 8 |
Downloadable links:
Technical information
Material Safety Data Sheets
