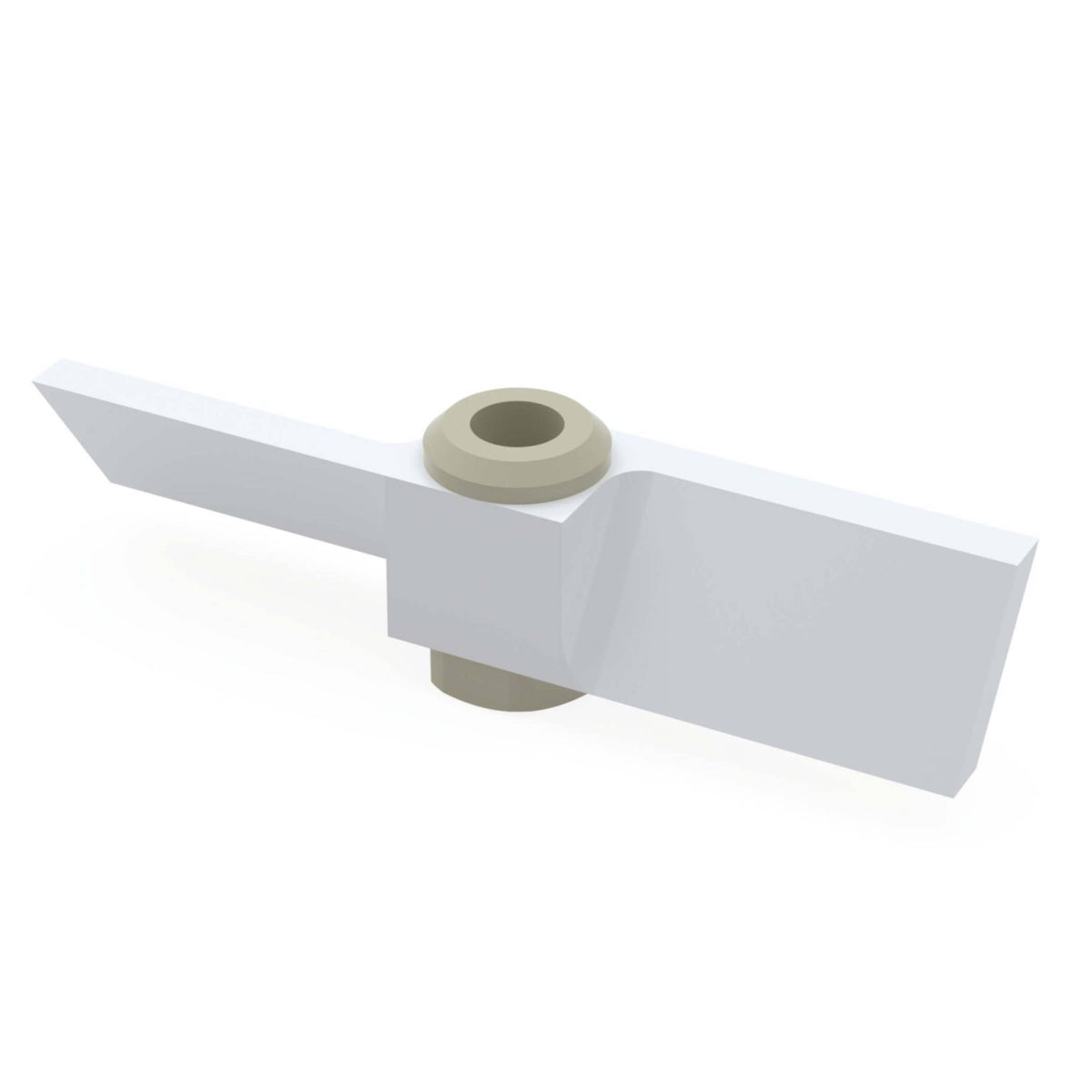

BOLA Paddle (PTFE/PEEK Comp. ) - Ø 10 mm a Ø 110 x 20 mm
Regular price
$ 128.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Paddle (PTFE/PEEK Comp.) - Ø 10 mm a Ø 110 x 20 mm
Product Description
These solid stirrer blades are made of PTFE and have a set of clamp screws made of a PTFE/PEEK compound. The blades can be fixed tightly on BOLA Stirrer Shafts by means of the clamp screws. A spanner wrench is included for easy assembly.
Applications
The product is sucked bottom-up, very good axial flow with shear force.
Specifications:
| Model | C446-12 |
| Chemical resistance | +++ universal |
| Material | PTFE/PEEK |
| Stirring effect | bottom-up |
| Temperature resistance | from -200°C to +250°C |

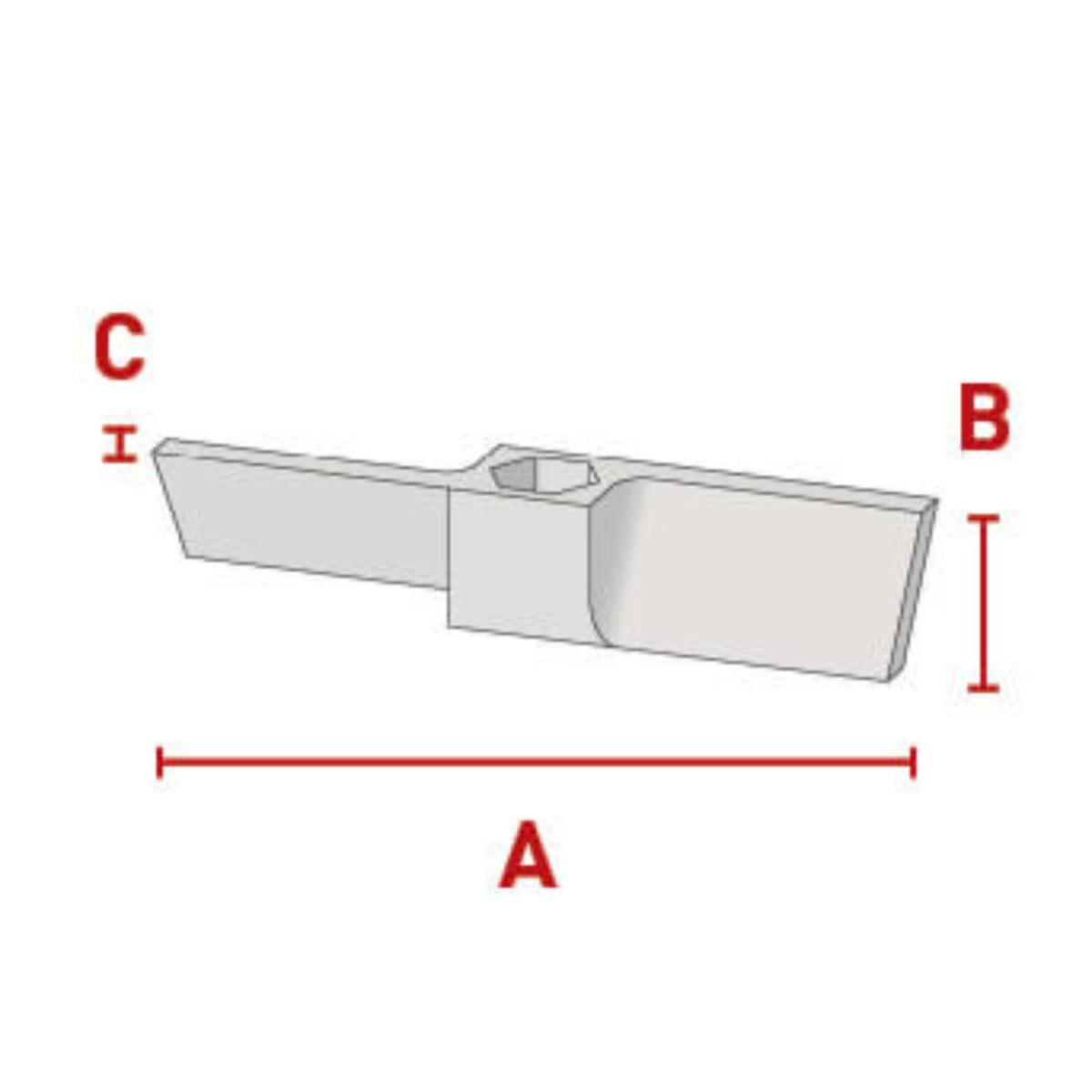

| Dimensions according to drawing [A - B - C mm] | 110 - 25 - 5 |
| Shaft dia. [mm] | 10 |
| Wrench size | 19 |
Downloadable links:
Material Safety Data Sheets
Operating Instructions
