BOLA Moon-Shaped Stirrer Shafts RCD (PTFE ) - L 600mm, Ø 16 mm, 125x35x3 mm
Regular price
$ 477.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Moon-Shaped Stirrer Shafts RCD (PTFE ) - L 600mm, Ø 16 mm, 125x35x3 mm
Product Description

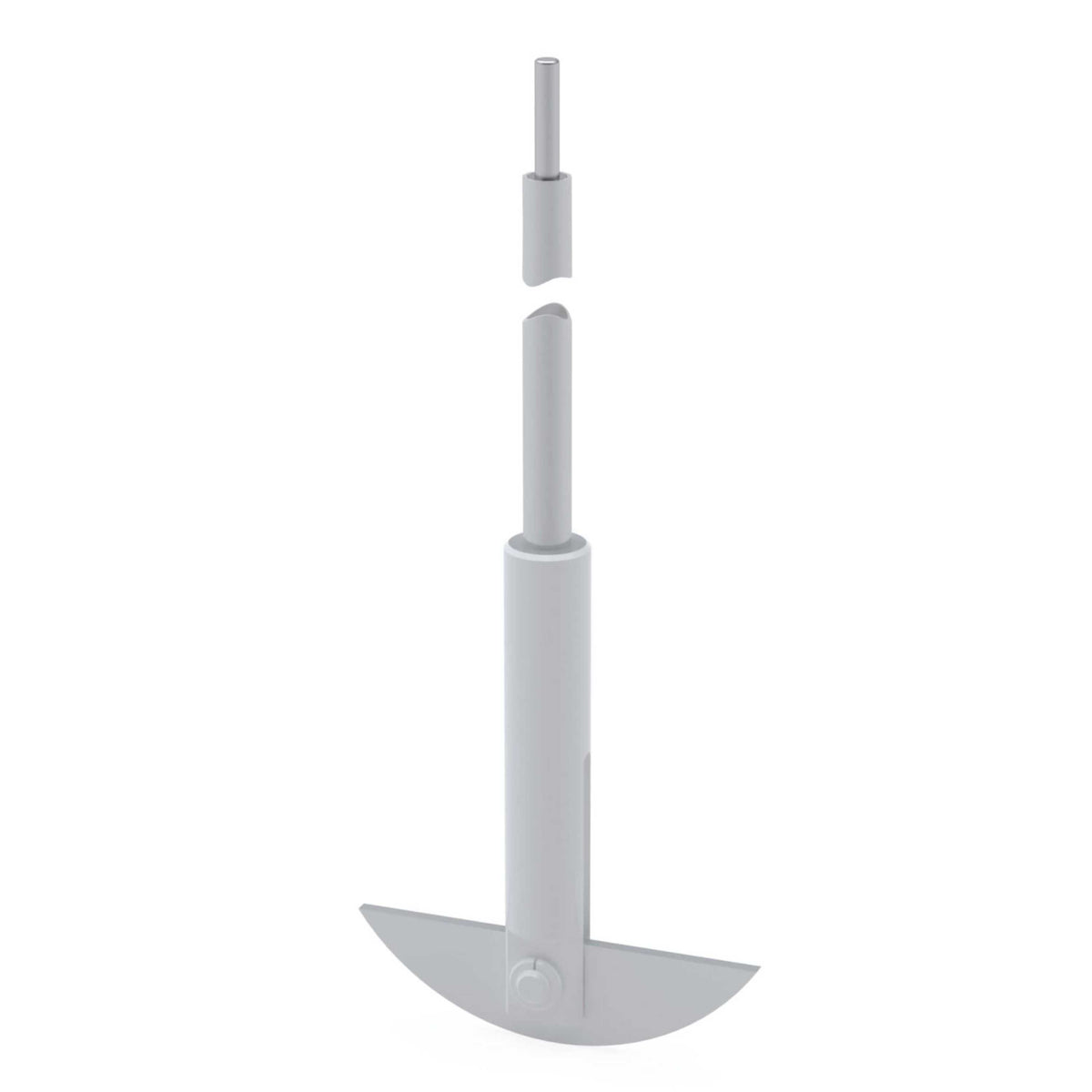

PTFE-jacketed stainless steel shaft, tilting half-moon stirrer blade with double-sided groove and access for the stirrer shaft completely made of PTFE. Universal chemical resistance since the product is only exposed to PTFE. Blade dimensions see Cat. No. C 376-..
Applications
Tangential flow with little turbulence. The tilting half-moon blade is ideal for stirring in round-bottom flasks with ground joint necks. Blades are available separately and can be mounted additionally.
Specifications:
| Model | C576-20 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 10 |
| Dimensions according to drawing [A - B - C mm] |
125 - 35 - 3 |
| For ground [joint NS] |
45/40 |
| Length [mm] | 600 |
| Shaft dia. [mm] | 16 |
Downloadable links:
Technical information
Material Safety Data Sheets
