BOLA Mini-Propeller-Stirrer Shaft (PTFE ) - L 350 mm, Ø 6 mm, NS 45/40
Regular price
$ 209.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Mini-Propeller-Stirrer Shaft (PTFE) - L 350 mm, Ø 6 mm, NS 45/40
Product Description

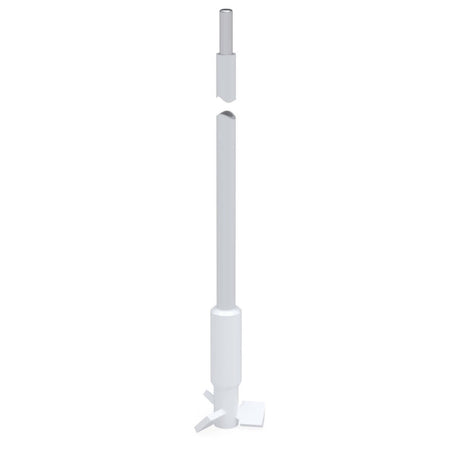

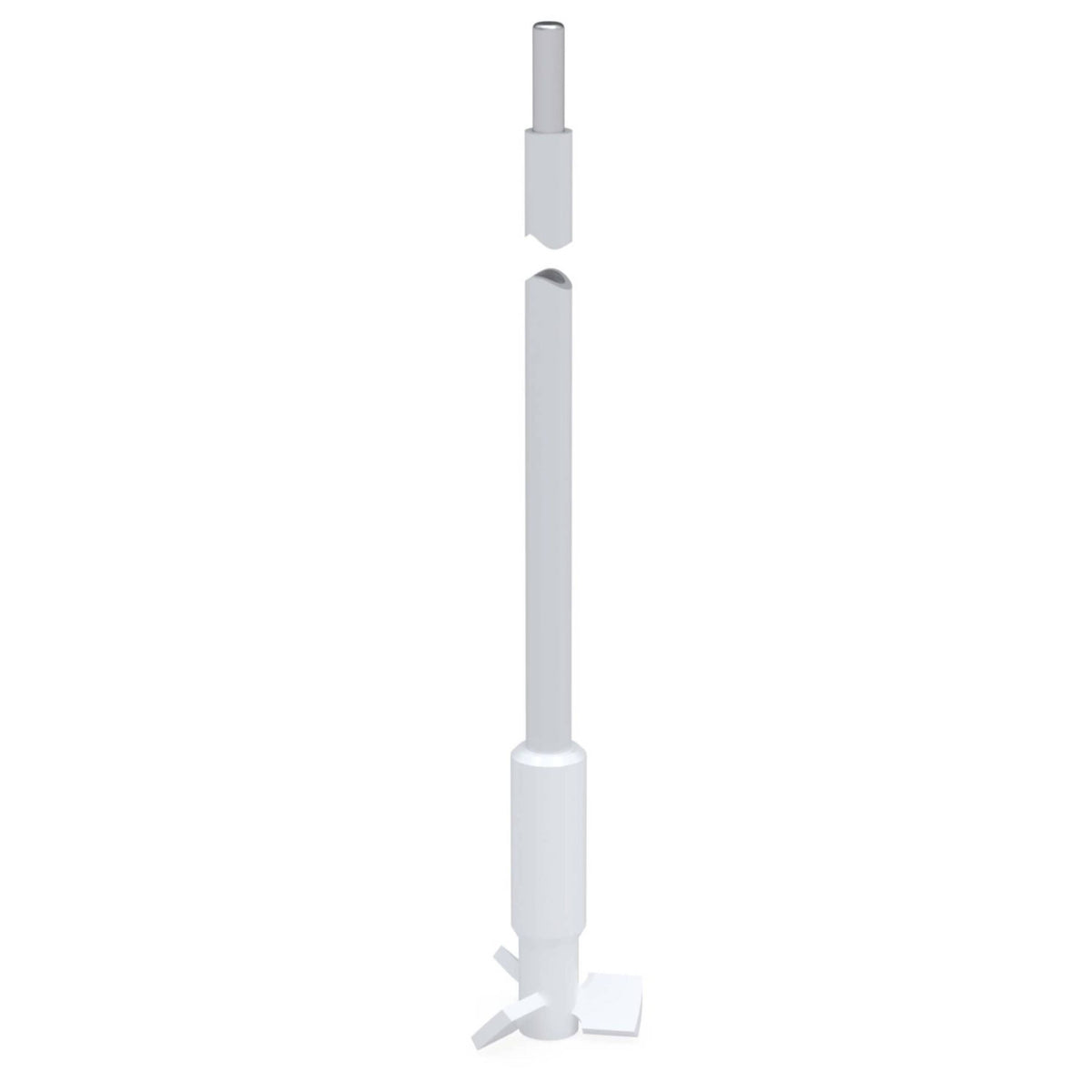

PTFE-jacketed stainless steel shaft, propeller completely made of PTFE with three 45° angled angular blades. Universal chemical resistance since the product is only exposed to PTFE.
Applications

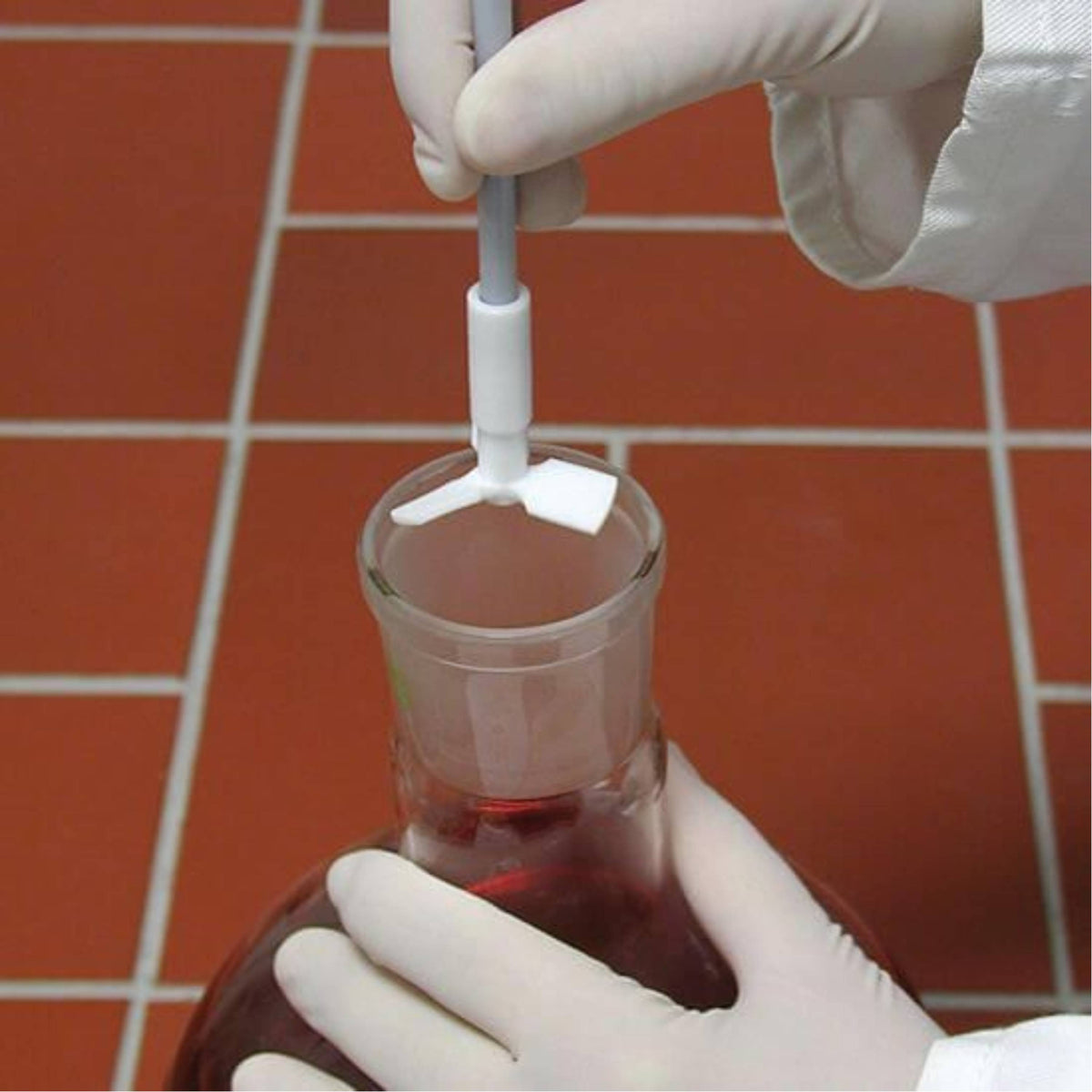

The product is sucked bottom-up, good axial flow with low shear force. The small stirring diameter allows stirring in narrow mouth vessels or in vessels with ground joint openings.
Specifications:
| Model | C482-24 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Stirring effect | bottom-up |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 4 |

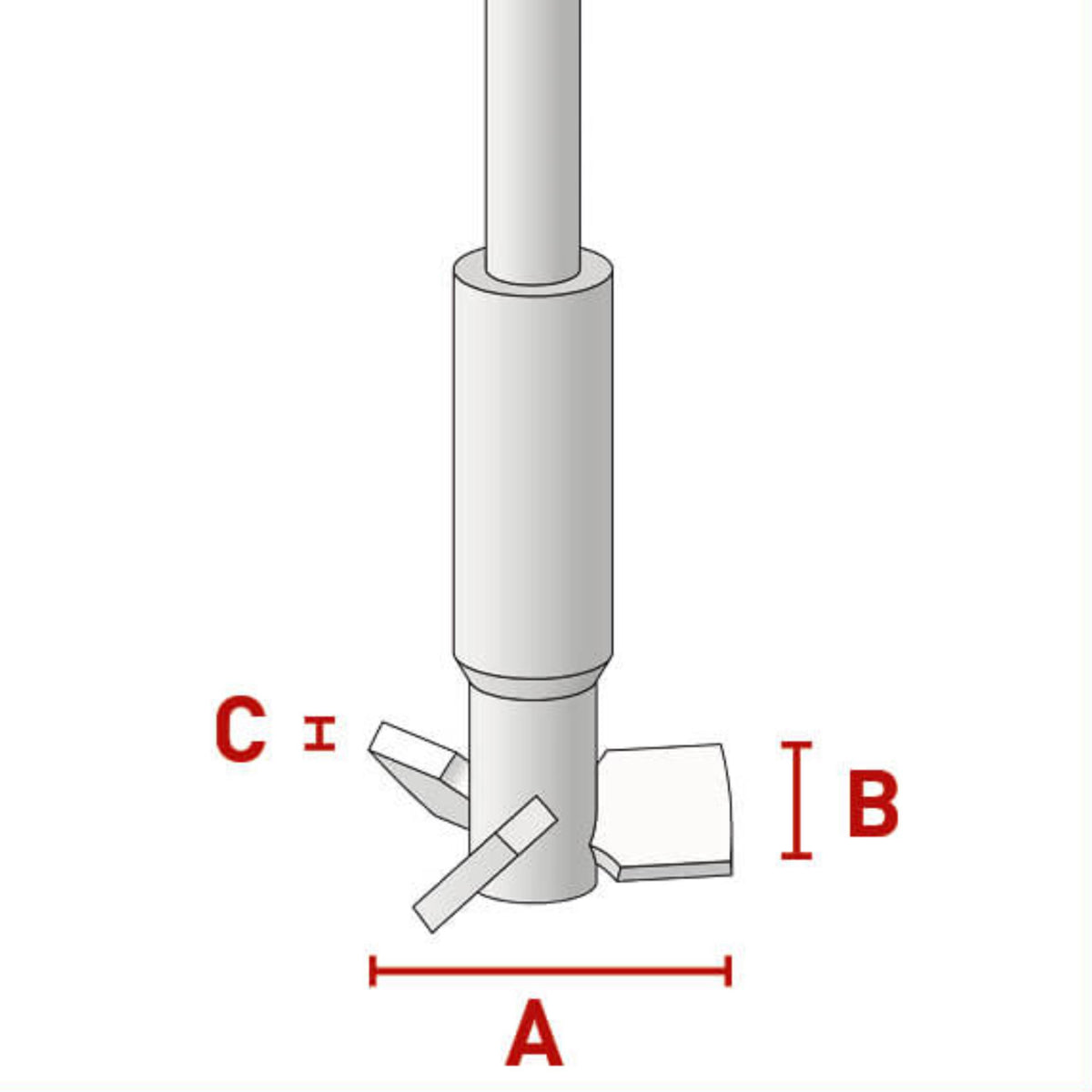

| Dimensions according to drawing [A - B mm] | 40 - 12 - 2 |
| Length [mm] | 350 |
| Shaft dia. [mm] | 6 |
| Suitable for [NS] | 45/40 |
Downloadable links:
Technical information
Material Safety Data Sheets
