BOLA Maxi-Propeller Stirrer Shafts RCD (PTFE ) - L 1000 mm Ø 16 mm Rk 200 mm
Regular price
$ 1,270.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Maxi-Propeller Stirrer Shafts RCD (PTFE) - L 1000 mm Ø 16 mm Rk 200 mm
Product Description

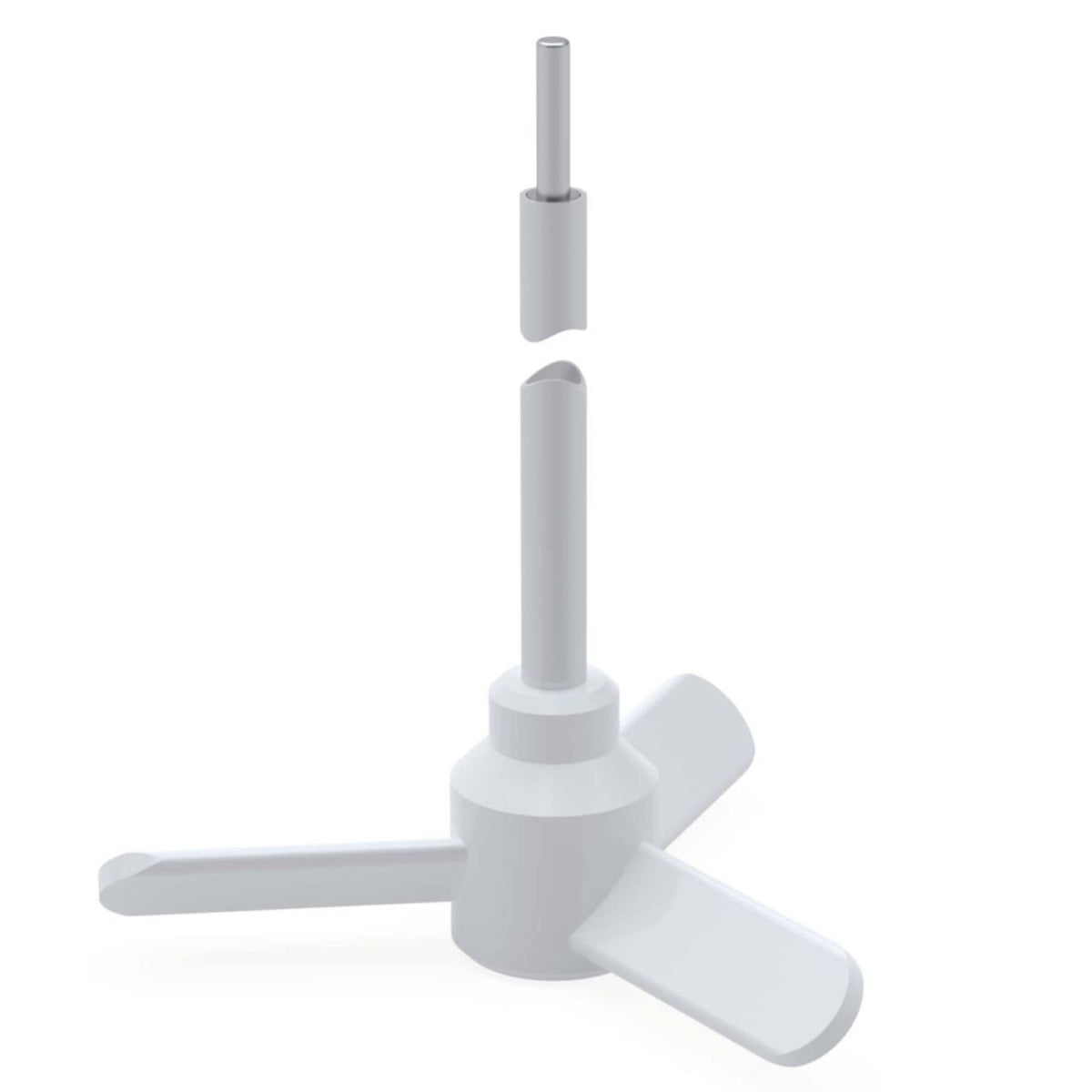

PTFE-jacketed stainless steel shaft, propeller completely made of PTFE with three 45° angled blades. Universal chemical resistance since the product is only exposed to PTFE. Blade dimensions see Cat. No. C 392-..
Applications
The product is sucked bottom-up, very good axial flow with low local shear force.
Specifications:
| Model | C592-64 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 10 |
| Dimensions according to drawing [A - B mm] | 200 - 26 - 6 |
| Length [mm] | 1.000 |
| Shaft dia. [mm] | 16 |
Downloadable links:
Technical information
Material Safety Data Sheets
