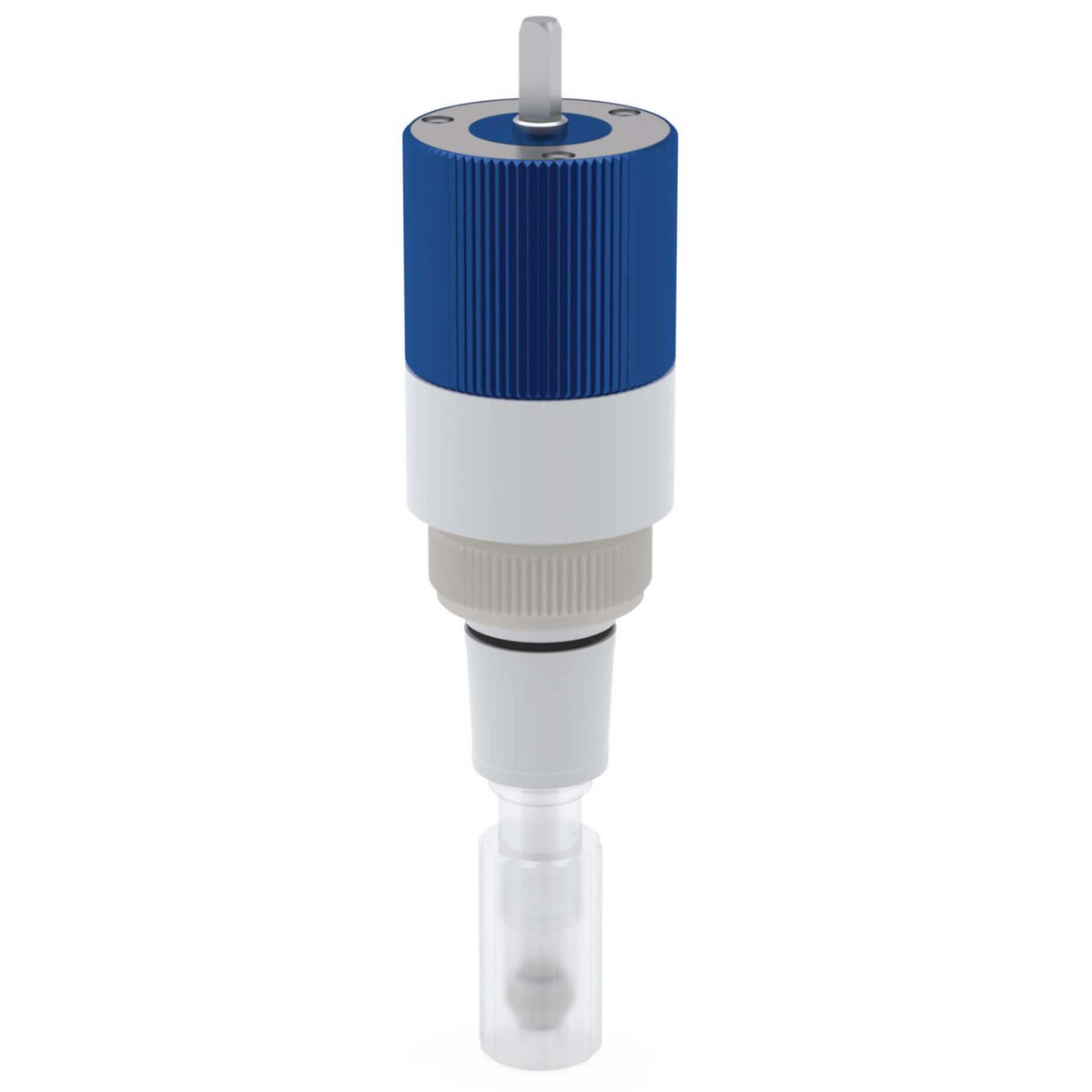

BOLA Magnetic Stirrer Heads with Ground Joint (PTFE/PFA ) - 20 Ncm, NS 29/32
Product Description
Gastight permanent magnetic coupling with ball bearing encapsulated in ceramics and square connection for cardan joint. PTFE cone size 29 with release nut made of PTFE with glass fiber for easy removal of the ground joint. All products which are exposed to the medium do not contain any metals. The 8 mm shaft guide provides guidance without friction of stirrer shafts up to a speed of 800 rpm. The stirrer head can also be fixed directly into the chuck by mounting the included metal adapter on the square connection (6 mm).
Applications
For absolute vacuum.
Specifications:
| Model | C450-16 |
| Chemical resistance | +++ universal |
| Material | PFA, PTFE |
| Temperature resistance | from -15°C to +250°C |
| Vacuum | suitable |
| Ground joint [NS] | 29/32 |
| Speed [rpm max.] | 800 |
| Torque [Ncm] | 20 |
| Total length [mm] | 215 |
| Viscosity [up to mPas] | 1.500 |
| Volume [up to ml] | 2.000 |
