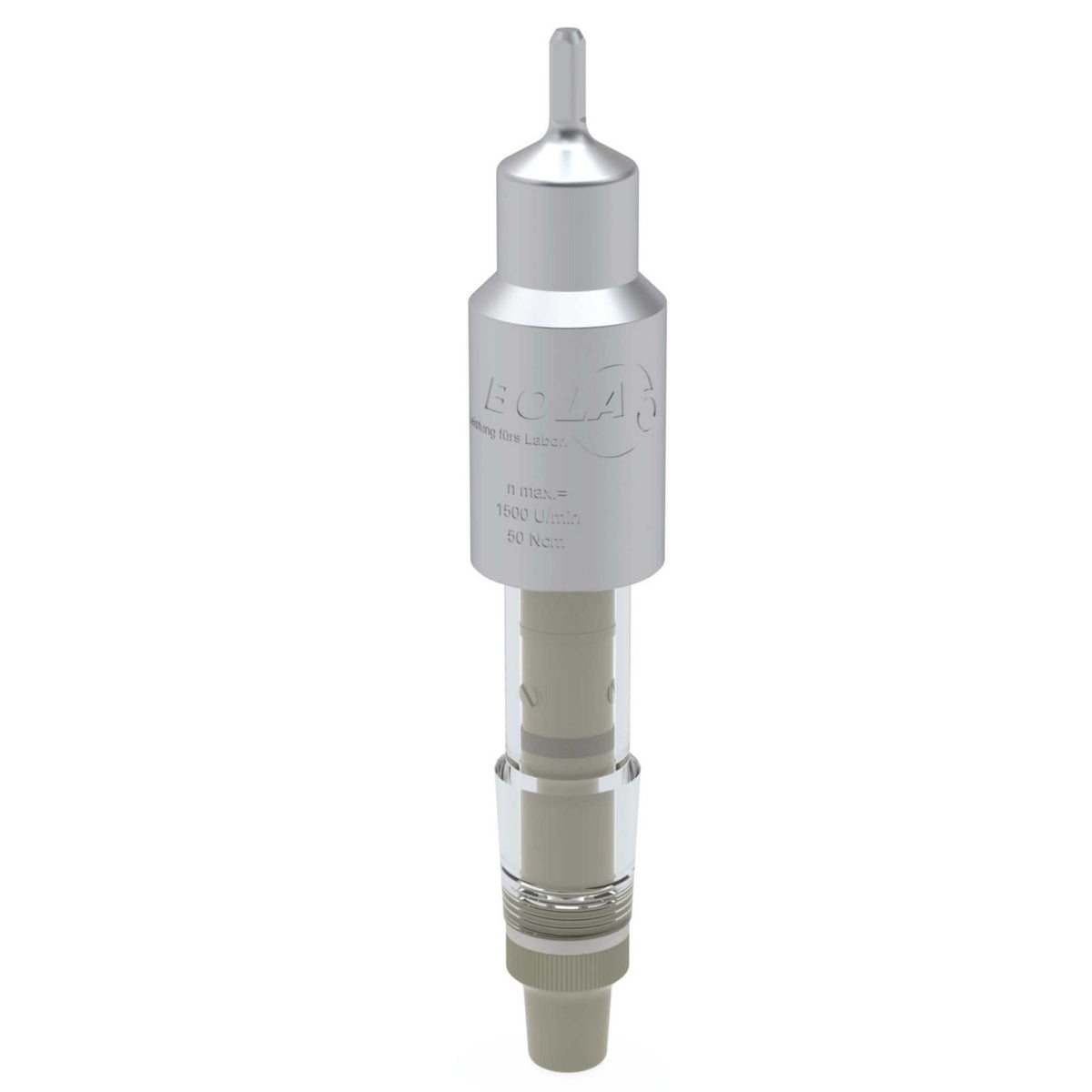

BOLA Magnetic Stirrer Heads SG-MRK (PTFE/PEEK/GLAS ) - NS 19/26, Ø 6 mm
Regular price
$ 1,813.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Magnetic Stirrer Heads SG-MRK (PTFE/PEEK/GLAS ) - NS 19/26, Ø 6 mm
Product Description
Perfect combination of drive shaft with ball bearings, rotor and lower bearing made of PTFE/PEEK and a conductor made of borosilicate glass. Requires little space due to compact construction. No leakage or memory effects due to non-porous, welded rotor. This rotor holds the stirrer shaft by means of three stud screws which are fixed in the counterbores of the stirrer shaft. This provides optimum power transmission and a safe fixing. The 6 mm square can be fixed into the stirrer coupling or into the agitator.
Product advantages
- Powerful transmission
- For ground joint size 19/26: 15 Ncm
- For ground joint size 29/32 and 45/40: 50 Ncm
- No grease required
- All products which are exposed to the medium do not contain any metals
- High speed of up to max. 1.500 rpm
- High working temperatures up to +250°C are possible
- Excellent chemical resistance
- Safe to run dry
- Long durability
- Space-saving drive shaft O.D.'s
- For ground joint size 19/26: 28 mm
- For ground joint size 29/32 and 45/40: 38 mm
Applications
Ideal for reactor lids with a center ground joint, suitable for stirrer shafts made of glass or stainless steel with counterbores for a safe fixing into the rotor.
- L1 Internal height from the top of the ground joint to the vessel bottom.
- L3 maximum total length of stirrer shaft = L1+L2
Specifications:
| Model | C512-08 |
| Chemical resistance | +++ universal |
| Material | Glass, PTFE |
| Temperature resistance | from -100°C to +240°C |
| Conductor [NS] | 19/26 |
| Dia. of stirrer shaft [(d) mm] | 6 |
| Height [(H) mm] | 90 |
| Insertion length [of stirrer shaft mm L4] | 28 |
| Top of ground joint to [top of stirrer shaft mm L2] | 15 |
