BOLA Magnetic Stirrer Heads (P-MRK) with Flat Flange (PTFE/PEEK/STEEL ) - DN 40, Ø 10mm
Product Description

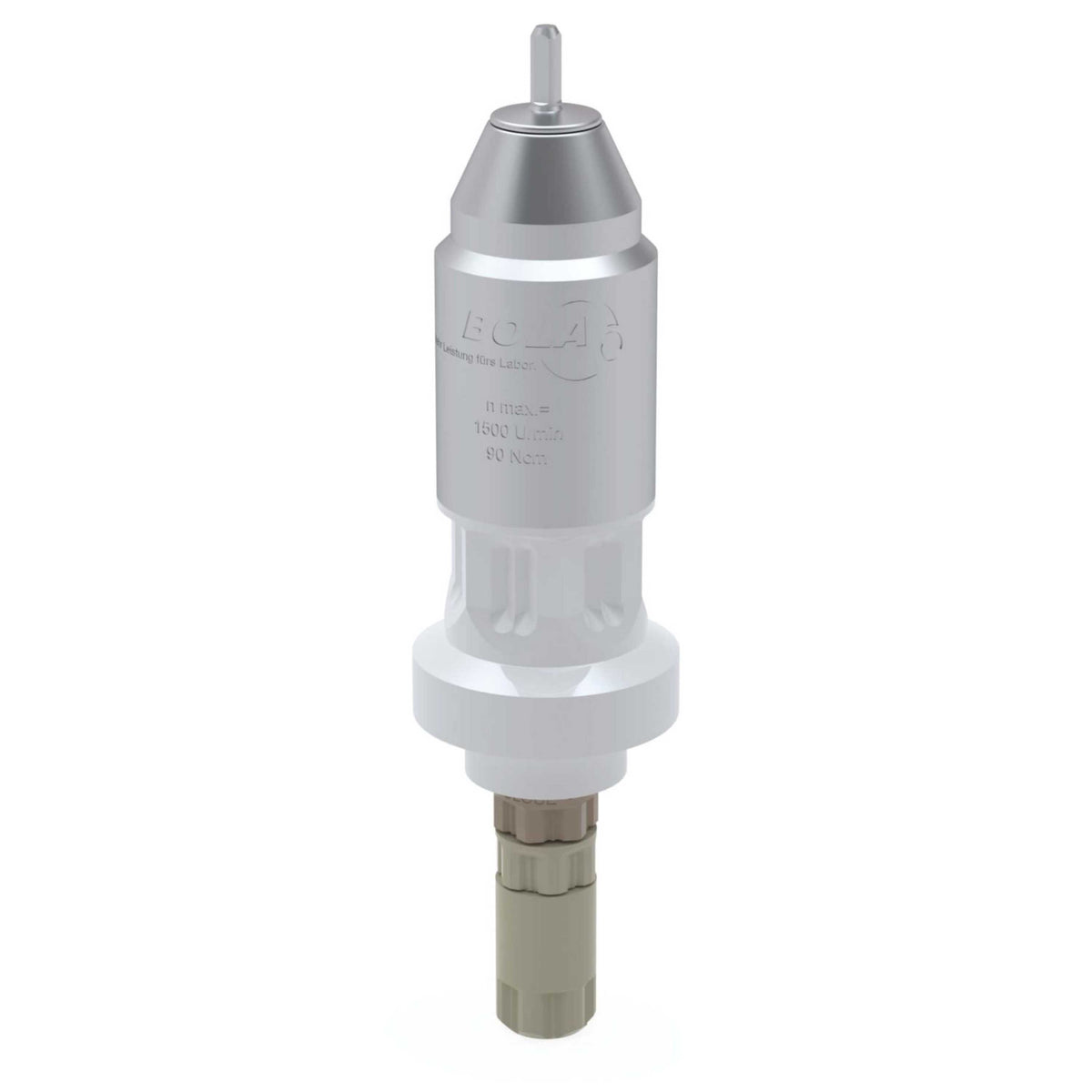

Ideal stirrer head for PTFE-jacketed stirrer shafts from BOLA. Consisting of capsuled drive shaft (stainless steel) with ball bearings, rotor and lower bearing made of PEEK-Compound and a Hastelloy® receiver. Requires little space due to compact construction. No leakage or memory effects due to non-porous, welded rotor. Compression fittings made of PEEK-Compound for safe fixing of stirrer shaft and optimum power transmission. Suitable for flat flanges of Duran (former Schott AG), sealing to be made with a gasket of your choice. Square size 6 mm for accepting an agitator or a stirrer coupling.
Product Advantages
- Gastight stirrer head for perfect vacuum
- Stirrer shaft's height adjustable, approx. 40 mm
- Also suitable for shortened stirrer shafts
- Powerful transmission of up to 90 Ncm
- Excellent chemical resistance
- No grease required / save to run dry
- High speed of up to max. 1.500 rpm
- Drive shaft fixed for your safety
- High durability
- Easy disassembly of all parts for cleaning
- With receiver made of Hastelloy® for improved durability
Applications

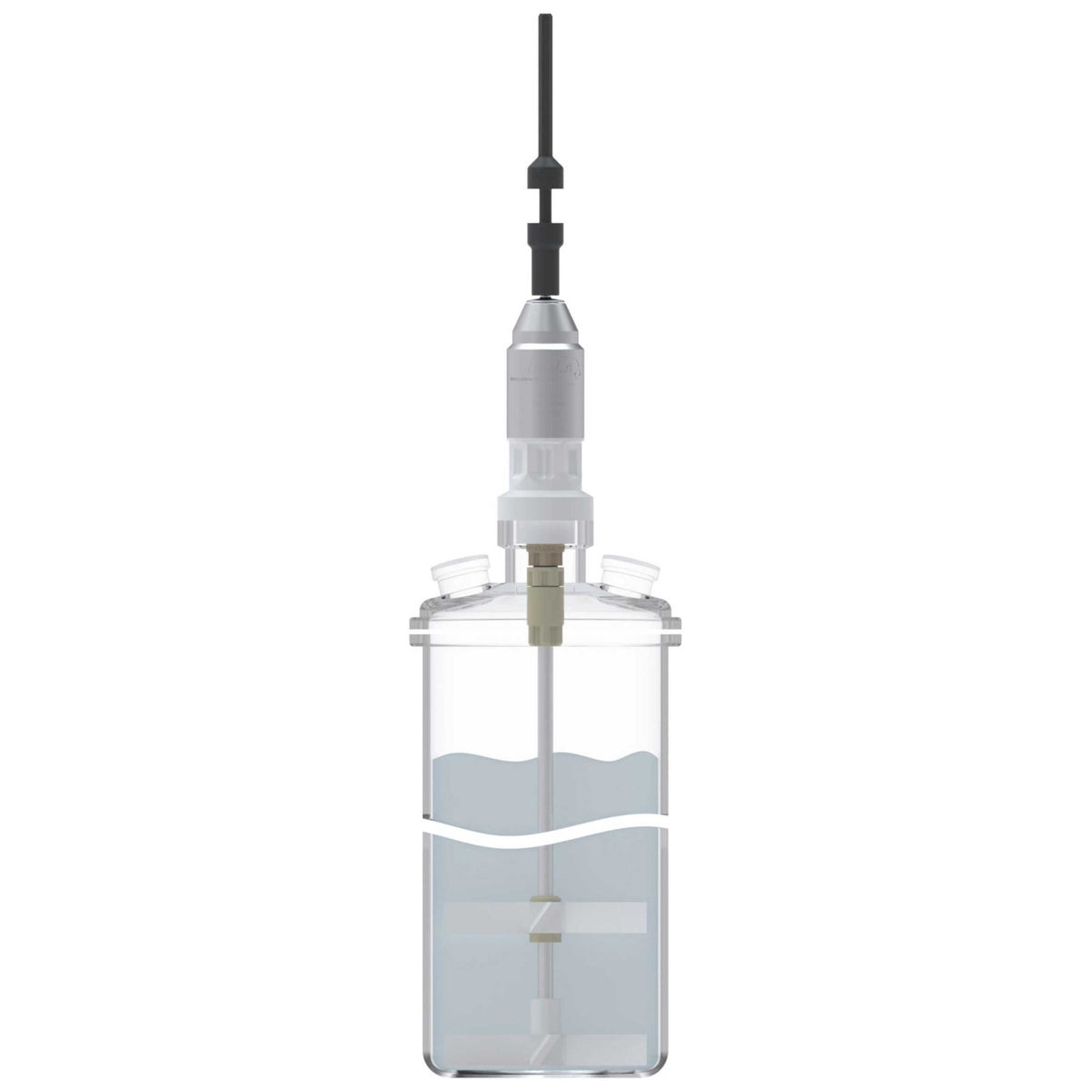

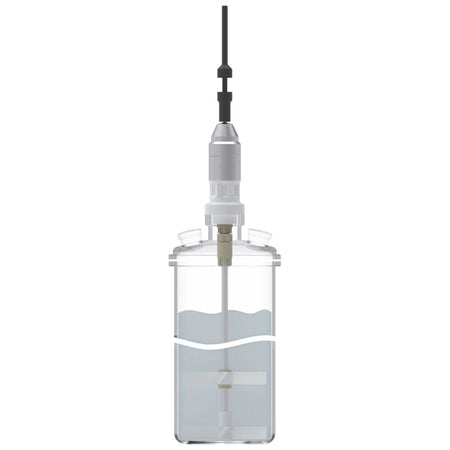

- Suitable for all BOLA Stirrer Shafts jacketed with PTFE. Ideal for reactor lids with flat flange.
- L1 The max. shaft length corresponds to the internal height from the top of the ground joint to the vessel bottom.
Specifications:
| Model | C532-22 |
| Chemical resistance | +++ universal |
| Material | Hastelloy®, PTFE |
| Temperature resistance | from -100°C to +240°C |
| Drive shaft O.D. [(D) mm] | 50 |
| For stirrer shaft [dia.(d) mm] | 10 |
| Height [(H) mm] |
160 |
| Insertion length [of stirrer shaft mm L4] | 95 |
| for flat flange [DN] | 40 |
