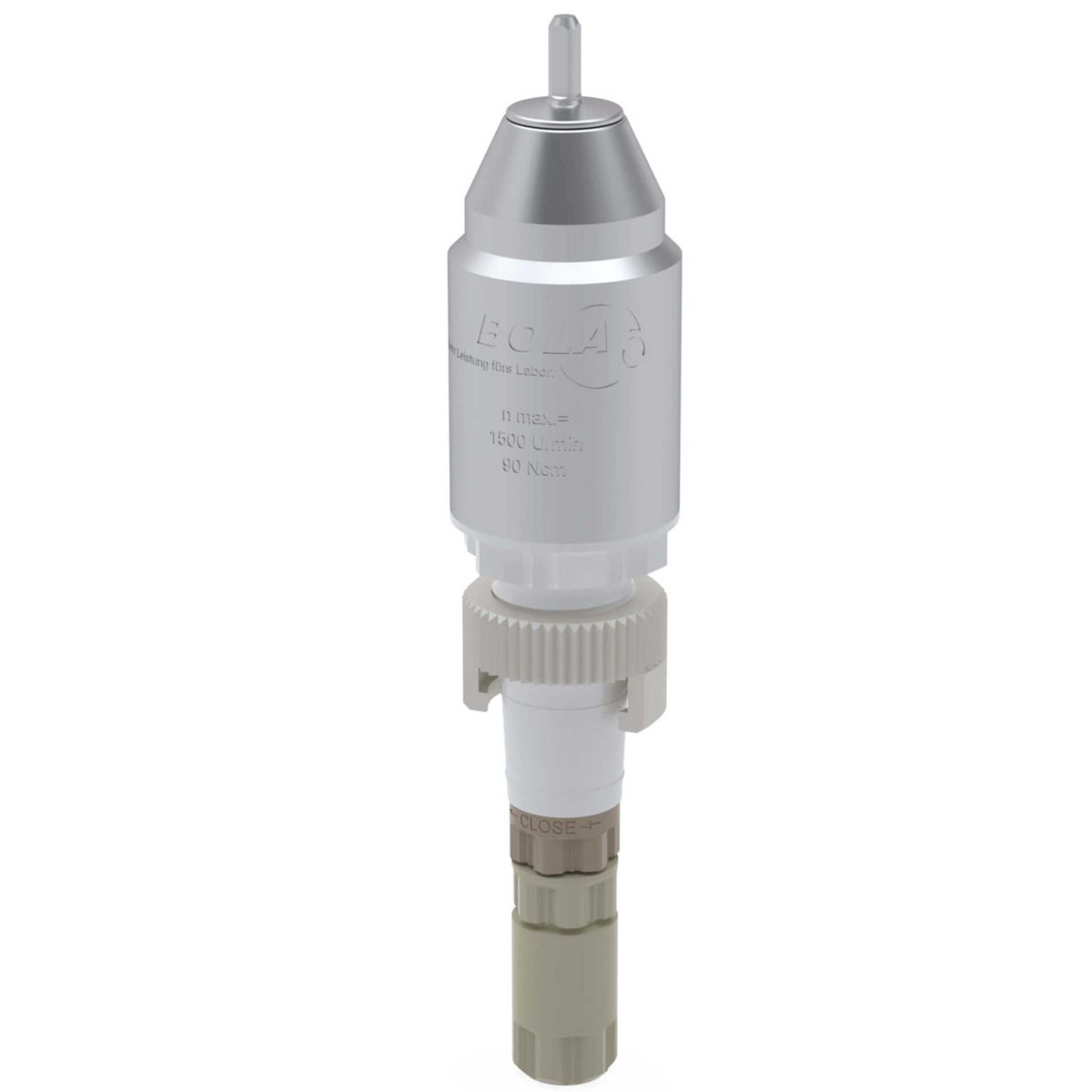

BOLA Magnetic Stirrer Heads (P-MRK) (PTFE/PEEK/GLAS ) - NS 45/40, Ø 10 mm
Regular price
$ 1,867.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Magnetic Stirrer Heads (P-MRK) (PTFE/PEEK/GLAS ) - NS 45/40, Ø 10 mm
Product Description
Ideal stirrer head for PTFE-jacketed stirrer shafts from BOLA. Consisting of capsuled drive shaft (stainless steel) with ball bearings, rotor and lower bearing made of PEEK-Compound and a borosilicate glass receiver. Requires little space due to compact construction. No leakage or memory effects due to non-porous, welded rotor. Compression fittings for safe fixing of stirrer shaft and optimum power transmission. Joint-Cone with nut (Safe-Lab) made of PTFE for easy locking and unlocking of the ground joint. Square size 6 mm for accepting an agitator or a stirrer coupling.
Product advantages
- Gastight stirrer head for perfect vacuum
- Stirrer shaft's height adjustable, approx. 40 mm
- Also suitable for shortened stirrer shafts
- Powerful transmission of up to 90 Ncm
- Excellent chemical resistance
- No grease required / save to run dry
- High speed of up to max. 1.500 rpm
- Drive shaft fixed for your safety
- High durability
- Easy disassembly of all parts for cleaning
- Receiver made of borosilicate glass for universal chemical resistance
Applications
- Suitable for all BOLA Stirrer Shafts jacketed with PTFE. Ideal for reactor lids with center ground joint.
- L1: The max. shaft length corresponds to the internal height from the top of the ground joint to the vessel bottom.
Specifications:
| Model | C520-48 |
| Chemical resistance | +++ universal |
| Material | Glass, PTFE |
| Temperature resistance | from -100°C to +240°C |
| Drive shaft O.D. [(D) mm] |
50 |
| For ground [joint NS] | 45/40 |
| For stirrer shaft [dia.(d) mm] | 10 |
| Height [(H) mm] | 145 |
| Insertion length of shaft [(L2) max. mm] | 95 |
Downloadable links:
Technical information
- BOLA Magnetic stirrer couplings – what you should know about.
- Stirrer shafts - maximum revolutions per minute
Material Safety Data Sheets
Operating Instructions
