BOLA Impeller Stirrer Shafts (PTFE ) - L 450 mm, Ø 10 mm, a Ø 60 mm
Regular price
$ 506.95
Couldn't load pickup availability
Still have questions? Ask our experts!

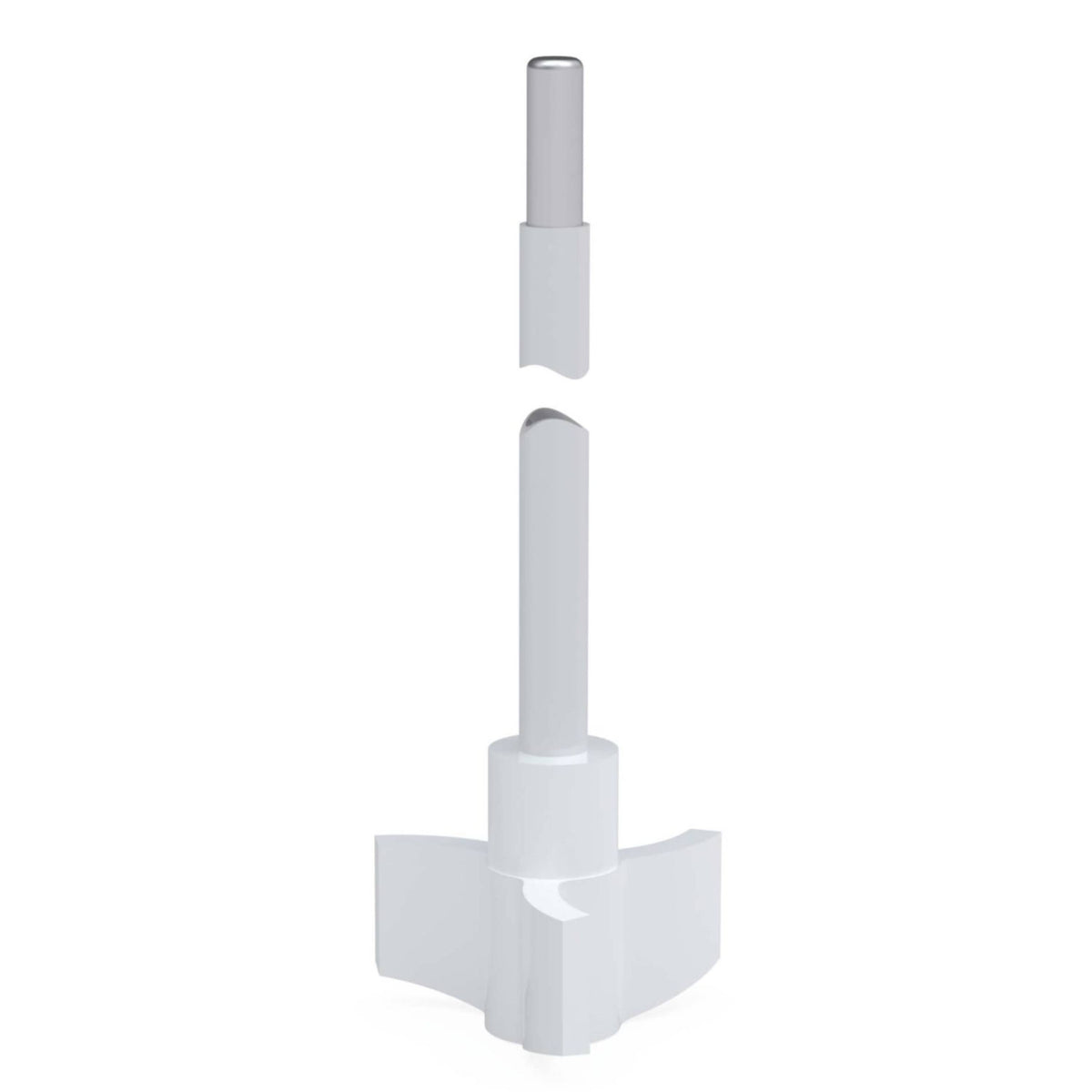

BOLA Impeller Stirrer Shafts (PTFE) - L 450 mm, Ø 10 mm, a Ø 60 mm
Product Description
PTFE-jacketed stainless steel shaft, impeller completely made of PTFE with three blades bent backwards, lower side of impeller either even or 15° angled. Universal chemical resistance since the product is only exposed to PTFE
Applications

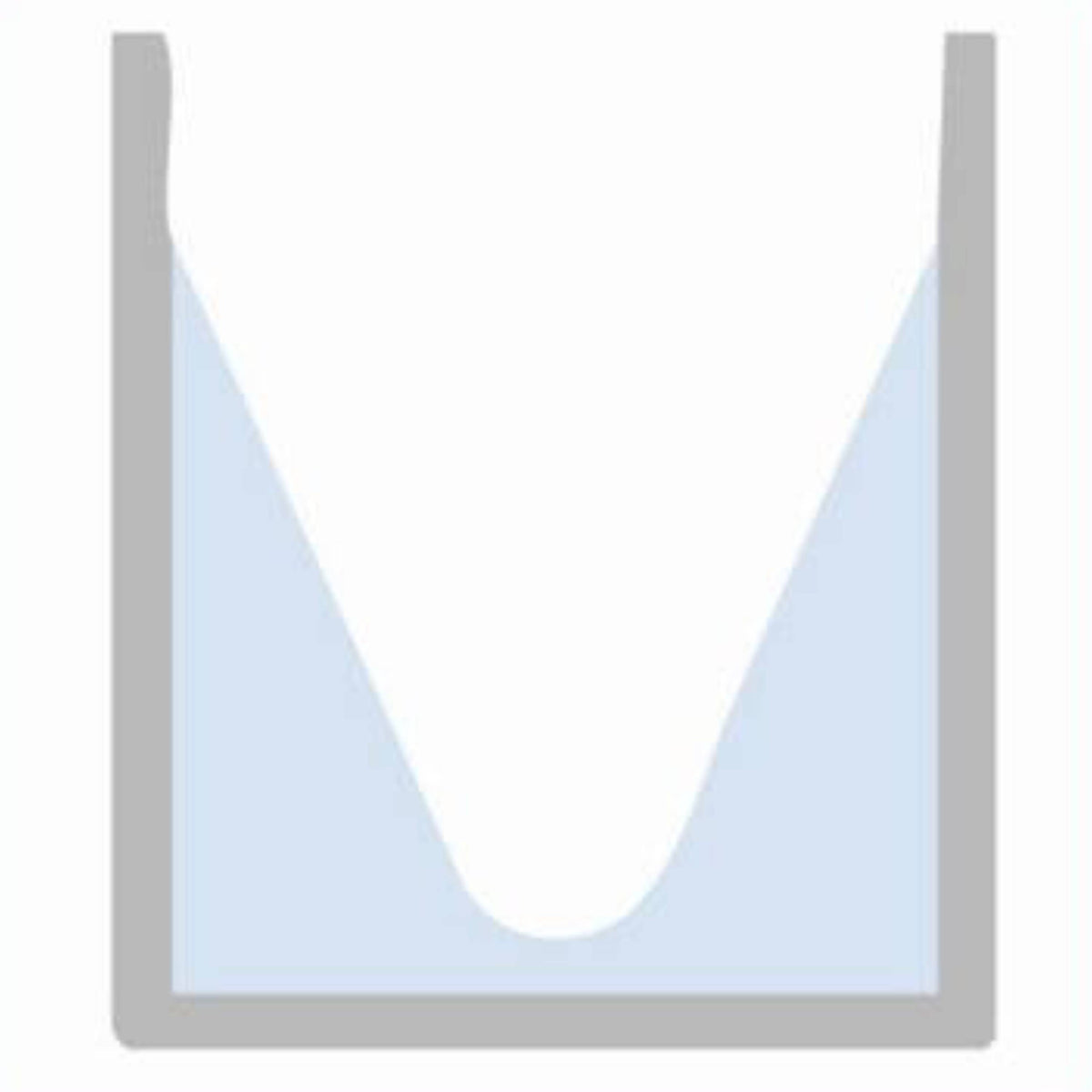

Very good and gentle stirring due to blades which are bent backwards, low shear force. The 15° angled impellers are ideal for stirring in vessels with round bottom.
Specifications:
| Model | C389-22 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -200°C to +250°C |
| Angle | 15° |
| Chucking dia. [mm] | 8 |

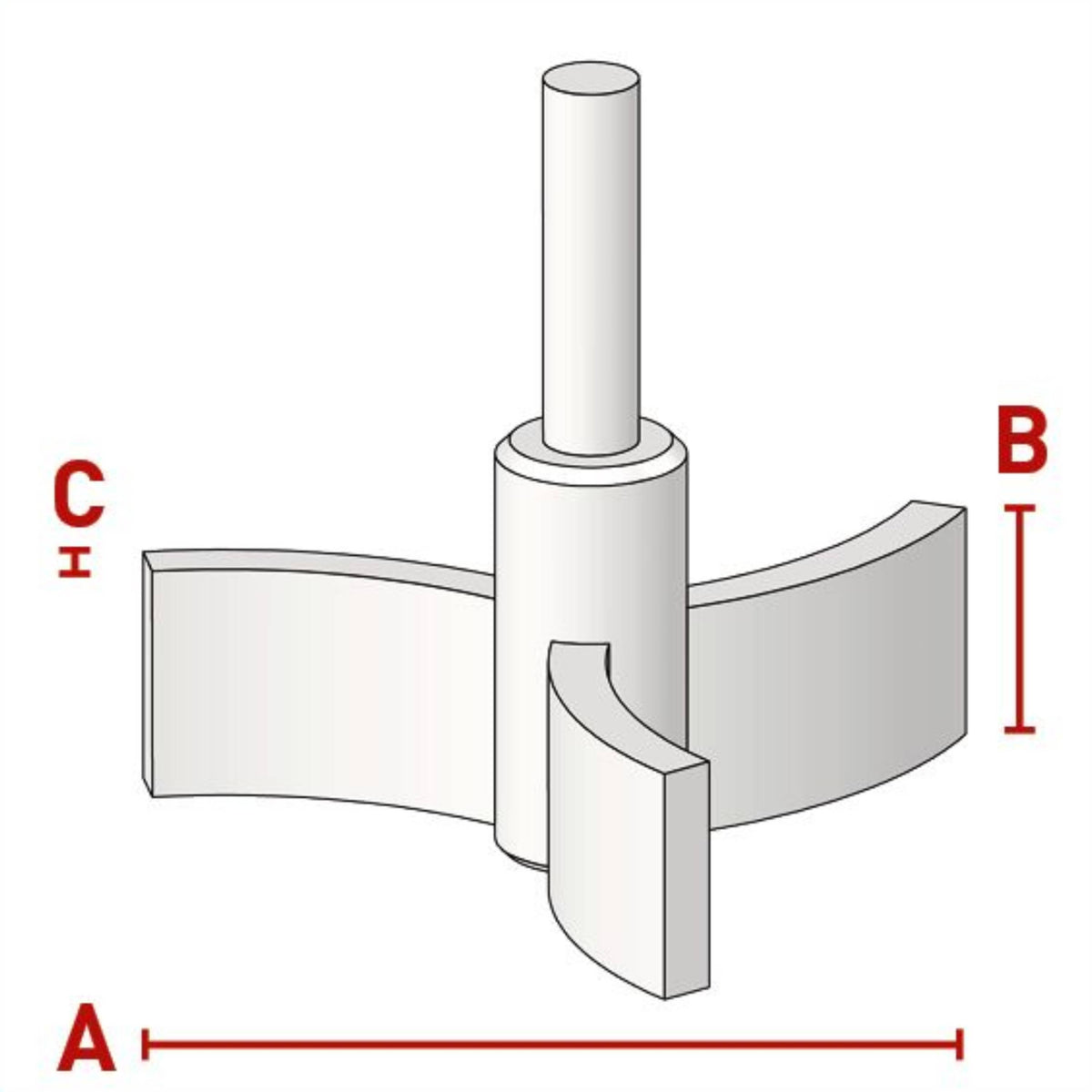

| Dimensions according to drawing [A - B - C mm] | 60 - 25 - 5 |
| Length [mm] | 450 |
| Shaft dia. [mm] | 10 |
Downloadable links:
Technical information
Material Safety Data Sheets
