BOLA HT Replacement Inner Parts (PPS/PTFE ) - GL 45 Ø 30,0 mm
Regular price
$ 163.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA HT Replacement Inner Parts (PPS/PTFE ) - GL 45 Ø 30,0 mm
Product Description

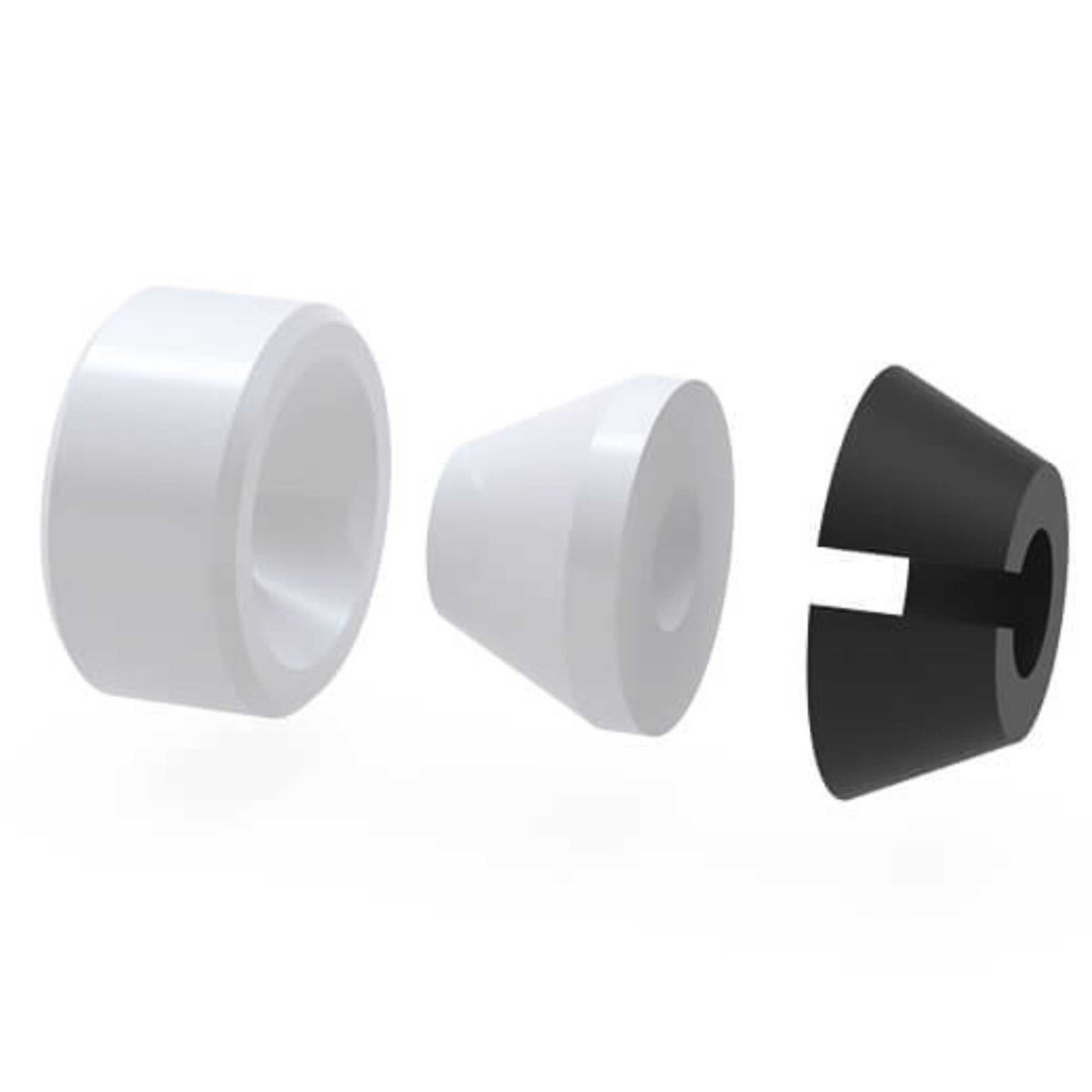

Consisting of a v-ring (PPS), a tapered ring and a sealing ring (both PTFE) as well as an o-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). Good chemical resistance, the medium is only exposed to PTFE.
Specifications:
| Model | D642-84 |
| Chemical resistance | +++ universal |
| Material | PPS, PTFE |
| Pressure | 10 bar |
| Temperature resistance | from -20°C to +200°C |
| Vacuum | suitable |
|
For tubing O.D. [max. mm] |
30,0 |
|
Thread [GL] |
45 |
