BOLA HT Laboratory Screw Joints (PPS/PTFE ) - GL 18 Ø 9,52 mm SW 22
Regular price
$ 102.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA HT Laboratory Screw Joints (PPS/PTFE ) - GL 18 Ø 9,52 mm SW 22
Product Description

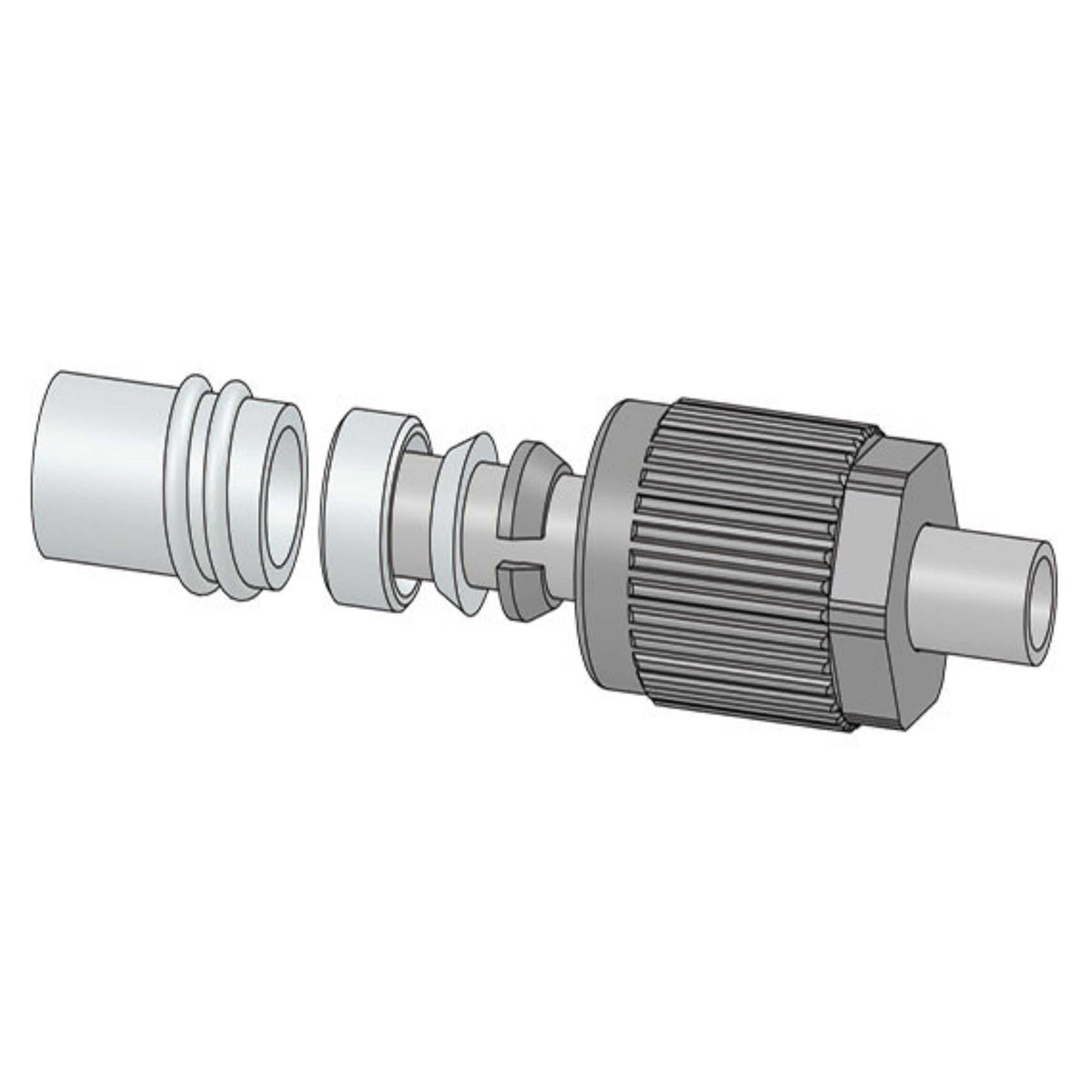

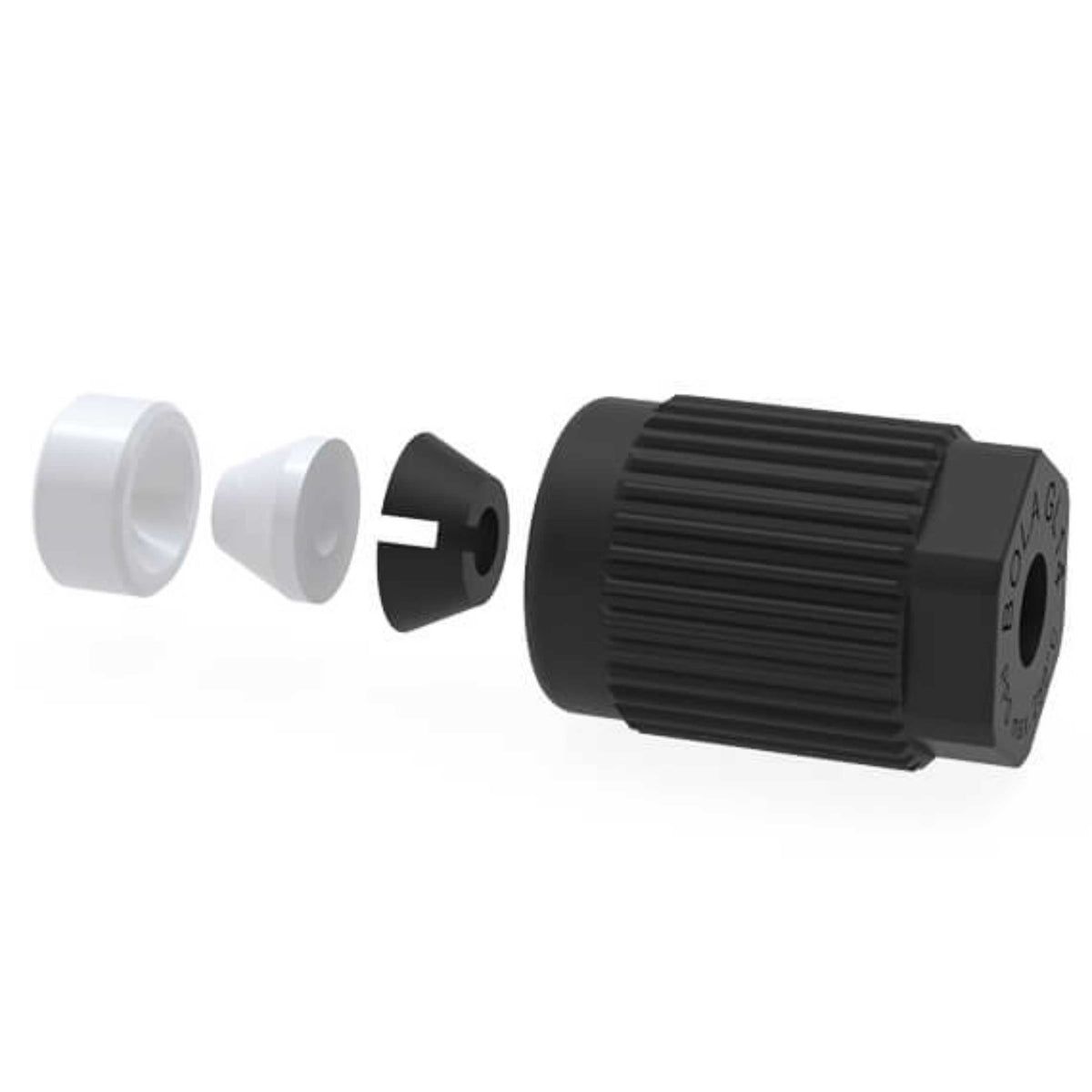

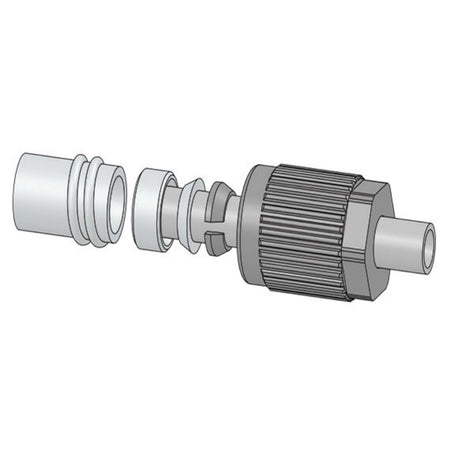

Black screw cap made of PPS, inner parts consisting of a v-ring (PPS), a tapered ring and a sealing ring (both PTFE) as well as an o-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). Good chemical resistance, the medium is only exposed to PTFE.
Applications

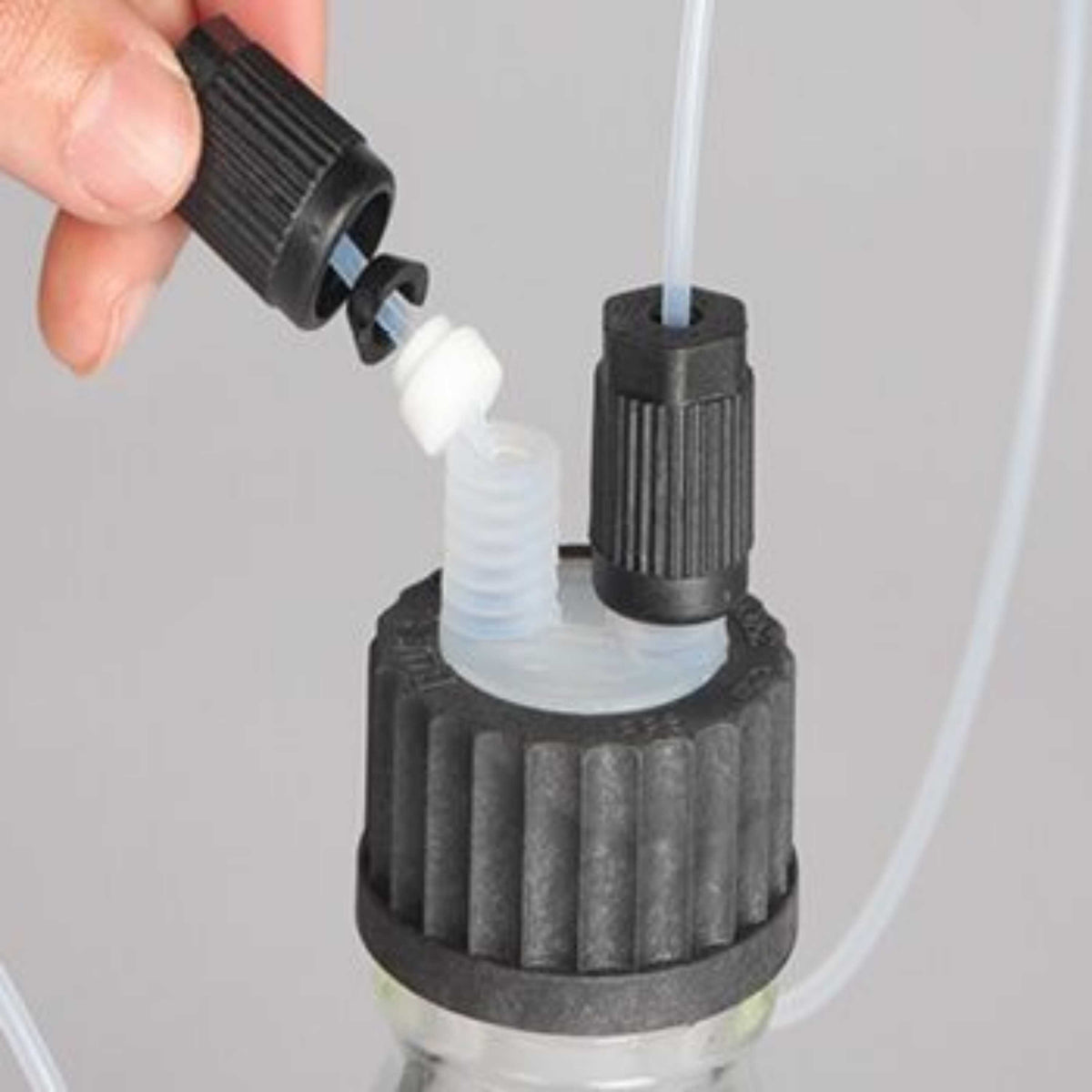

Connecting equipment and fittings with GL threads with hard-walled tubing or tubes made of glass, plastic or metal. Fixing probes, thermometers, dip tubes or cables in reaction vessels.
Specifications:
| Model | D629-68 |
| Chemical resistance | +++ universal |
| Material | PPS, PTFE |
| Pressure | 10 bar |
| Temperature resistance | from -20°C to +200°C |
| Vacuum | suitable |
|
For tubing O.D. [max. mm] |
(3/8") - 9,52 |
|
Thread [GL] |
18 |
Downloadable links:
Technical information
Material Safety Data Sheets
