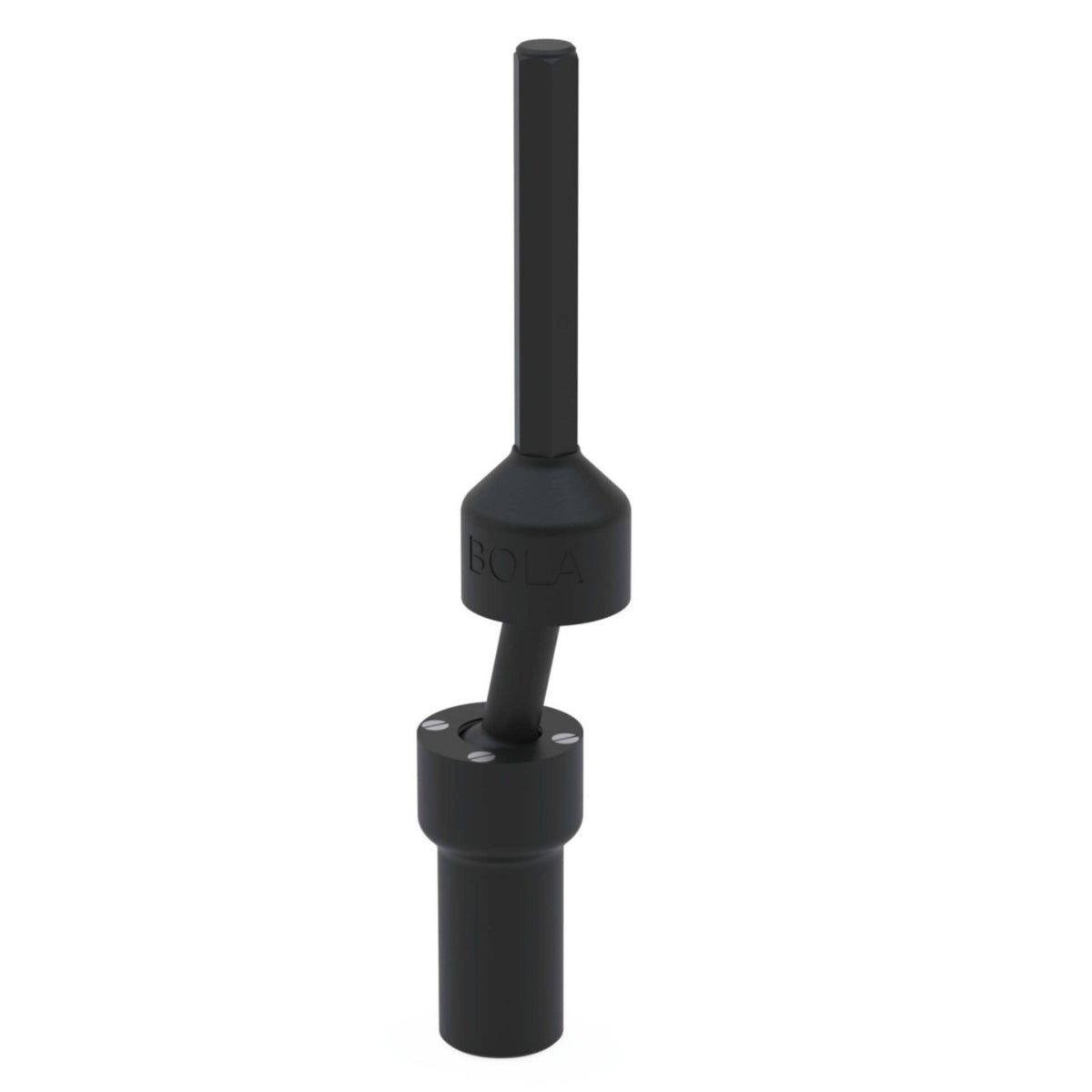

BOLA Globe Stirrer Couplings (POM) - L 180 mm SW 6
Product Description
Made of POM, a plastic material with good mechanical strength. For compensation of a misalignment of axes between stirrer shaft and stirring drive of up to 10 mm. Powerful transmission of max. 300 Ncm and suitable for a speed of up to 1200 rounds per minute and for both left- and right-handed rotation (except for version with female thread GL 10).

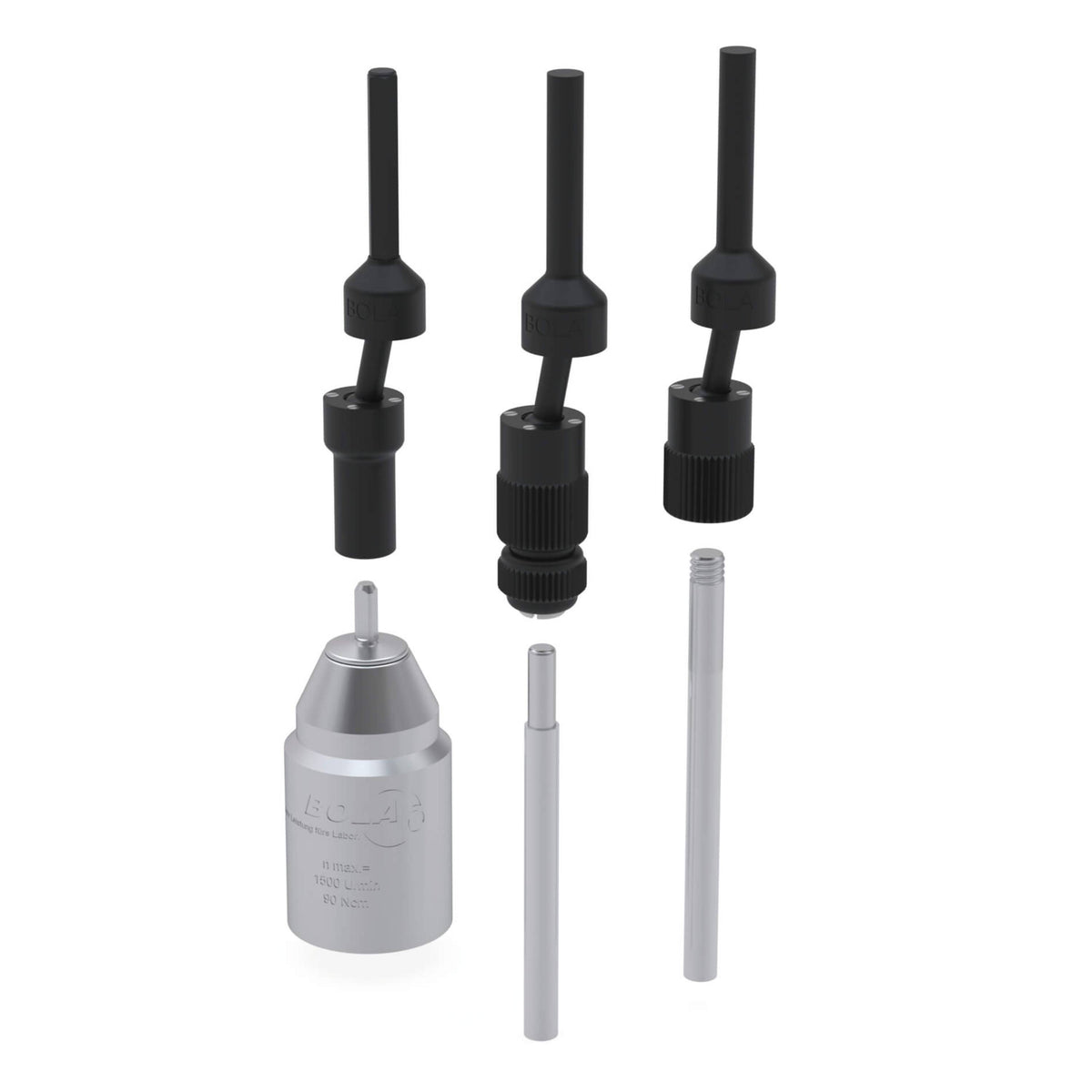

Different versions for assembly of glass, metal or PTFE coated shafts by means of a clamp screw to accept shafts with O.D. 4.0 mm, 6.5, 8.0 or 10.0 mm. An additional reducing sleeve for O.D. 6.5 / 8.0 mm is included in delivery.
Shafts with male thread GL 10 are screwed directly into the respective model with female thread GL 10. The coupling with inner square SW 6 is simply pushed on its counterpart.
The chuck adaptor is fixed directly in the drill chuck of the stirring drive and can be shortened if necessary.
Different versions for assembly of glass, metal or PTFE coated shafts by means of a clamp screw to accept shafts with O.D. 4.0 mm, 6.5, 8.0 or 10.0 mm. An additional reducing sleeve for O.D. 6.5 / 8.0 mm is included in delivery.
Shafts with male thread GL 10 are screwed directly into the respective model with female thread GL 10. The coupling with inner square SW 6 is simply pushed on its counterpart.
The chuck adaptor is fixed directly in the drill chuck of the stirring drive and can be shortened if necessary.
Product advantages
- Very low centrifugal forces due to low weight
- Suitable for both left- and right-handed rotation (except for GL 10 thread: no left-handed rotation possible)
- No resonance
- Simple assembly by means of screw joints with clamp rings
- Chuck adaptor (length 90 mm) can be shortened by the user
Applications
Ideal for balancing misalignment of axes between stirring drive and stirrer shaft, suitable for glass, metal or BOLA stirrer shafts.
Specifications:
| Model | C399-12 |
| Chemical resistance | ++ very good |
| Material | POM |
| Temperature resistance | from -20°C to +110°C |
| Chuck adaptor dia. [mm] | SW8 |
| Opening for stirrer shaft [mm] | Innen-4-kant SW6/inner square SW6 |
| Total Length [mm] | 180 |
