BOLA Glass Stirrer Bearings (GLAS/PTFE ) - NS 45/40 GL 32 Ø 16 mm
BOLA Glass Stirrer Bearings (GLAS/PTFE ) - NS 45/40 GL 32 Ø 16 mm
BOLA Glass Stirrer Bearings (GLAS/PTFE ) - NS 45/40 GL 32 Ø 16 mm
BOLA Glass Stirrer Bearings (GLAS/PTFE ) - NS 45/40 GL 32 Ø 16 mm
BOLA

BOLA Glass Stirrer Bearings (GLAS/PTFE ) - NS 45/40 GL 32 Ø 16 mm

Order upon Request
SKU: C 425-14
$ 161.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

BOLA Glass Stirrer Bearings (GLAS/PTFE) - NS 45/40 GL 32 Ø 16 mm

Product Description

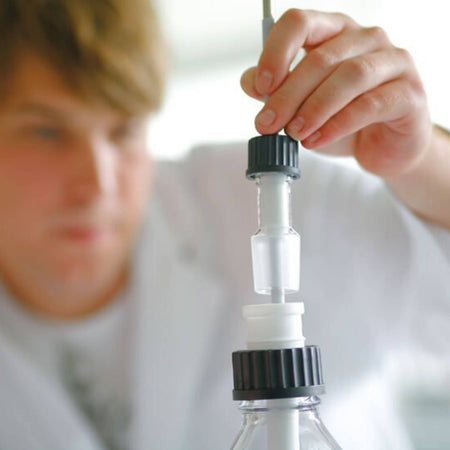

Combination of a borosilicate glass piece with ground joint, an interior PTFE shaft guide with integrated special gasket and a GL screw cap made of PPS. The special gasket made of PTFE and an FPM o-ring which is compressed by a GL screw cap provide a good sealing of the stirrer shaft. This gasket can be exchanged after wearing.

Applications

Suitable for vacuum, perfect bearing for stirrer shafts made of stainless steel, glass and for BOLA Stirrer Shafts.

Specifications:

Model C425-14
Chemical resistance +++ universal
Material PTFE, PPS
Temperature resistance from -15°C to +200°C
Cone NS [European standard] 45/40
For stirrer shaft dia. [mm] 16
Thread of screw cap [GL] 32
Total length [mm] 118


Downloadable links:

Technical information

Material Safety Data Sheets
