BOLA GL Tube Fittings T (PTFE ) - GL 25 Ø 14,5 mm
Regular price
$ 146.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA GL Tube Fittings T (PTFE ) - GL 25 Ø 14,5 mm
Product Description

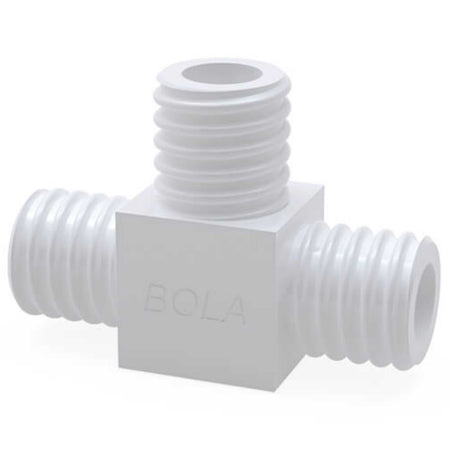

Tube fitting T-shaped made of PTFE, three connections with GL thread. Universal chemical resistance, the product is only exposed to PTFE.
Applications
For distributing liquids or gases. As reduction for connecting different diameters of tubes or tubing.
Specifications:
| Model | D540-25 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Pressure | 10 bar |
| Temperature resistance | from -200°C to +250°C |
| Vacuum | suitable |
| Bore dia. [mm] | 14,5 |
| Height [mm] | 51 |
| Length [without screw joint mm] | 70 |
| Thread [GL] | 25 |
| Wrench size [square mm] |
27 |
Downloadable links:
Technical information
Material Safety Data Sheets
