BOLA Flat Flange Lids (PTFE ) - DN 60
Regular price
$ 864.95
Couldn't load pickup availability
Still have questions? Ask our experts!

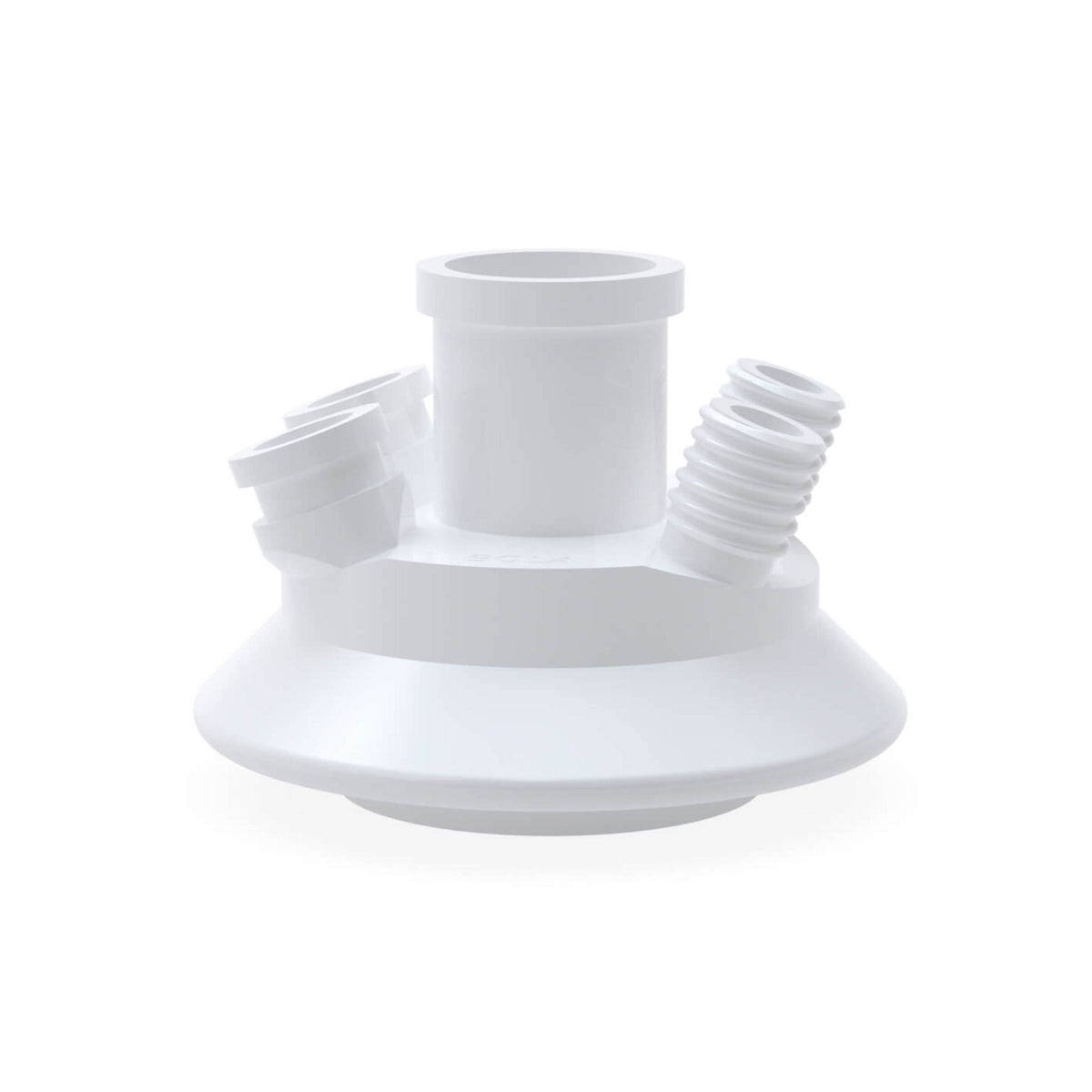

BOLA Flat Flange Lids (PTFE) - DN 60
Product Description

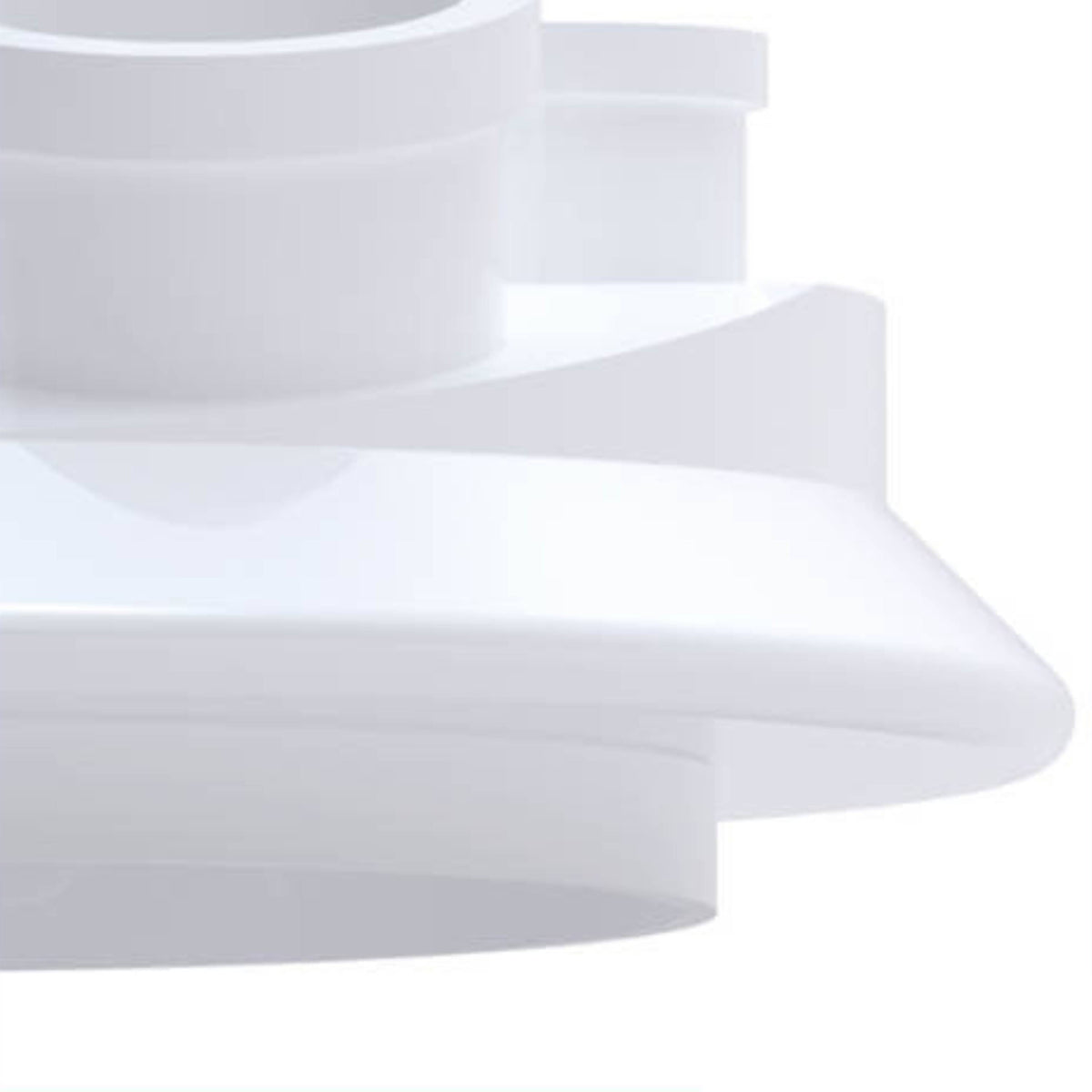

Suitable for reaction vessels with SCHOTT flat flange, with center neck socket NS 29/32, lateral necks with ground joint sockets or GL-thread. Bottom side with centring collar for non-slipping alignment on the vessel. All lateral connectors are made to insert tubing, tubes and probes either aside the center or vertical (parallel to the stirrer shaft) in order to avoid collisions.
Applications
Enlargement of our Distillation Apparatus with all necessary accessories. Tubing, tubes and probes can be fixed safely in the GL-threaded sockets by using BOLA Laboratory Screw Joints.
Specifications:
| Model | B210-02 |
| Chemical resistance | +++ universal |
| Material | PTFE, TFM |
| Temperature resistance | from -200°C to +250°C |
| Flat flange [DN] | 60 |
| Lateral necks [GL] (2) | 2x 18 schräg an Welle vorbei / aside the shaft |
| Lateral necks [NS] | 2x 14/23 schräg an Welle vorbei / aside the shaft |
Downloadable links:
Material Safety Data Sheets
