BOLA Double Impulse Stirrer Shafts (PTFE ) - L 800 mm, Ø 16 mm, aØ 140 mm
Regular price
$ 1,464.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Double Impulse Stirrer Shafts (PTFE ) - L 800 mm, Ø 16 mm, aØ 140 mm
Product Description

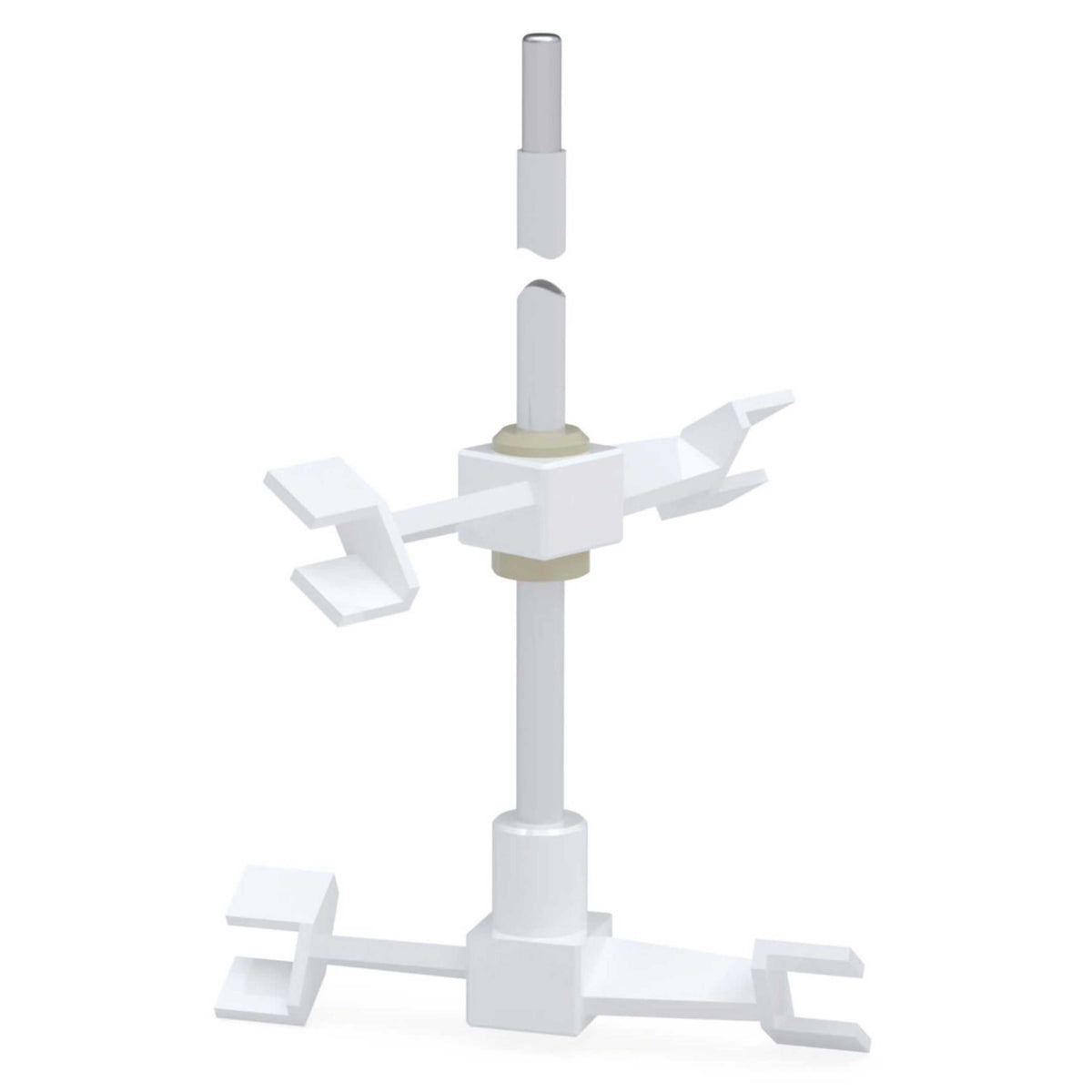

PTFE-jacketed stainless steel shaft, two paddles arranged crosswise at 90° completely made of PTFE. Upper paddle is fixed by means of clamp screws made of PEEK compound.
Applications

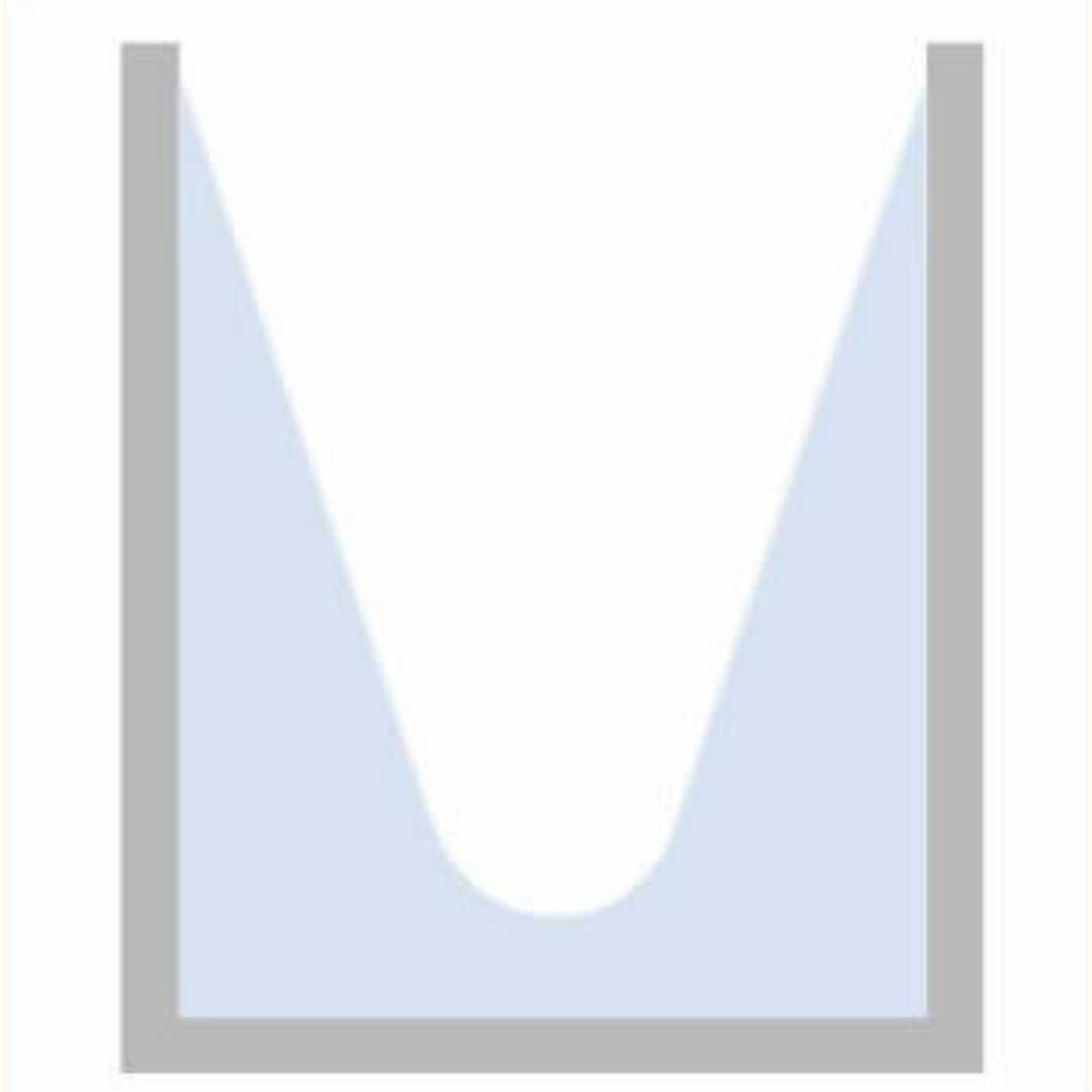

The inner stirring surfaces provide an upswing, while the parallel paddle ends provide a downward movement. Even viscous liquids are mixed ideally. The upper paddle can be positioned individually.
Specifications:
| Model | C391-28 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Stirring effect | bottom-up |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 14 |

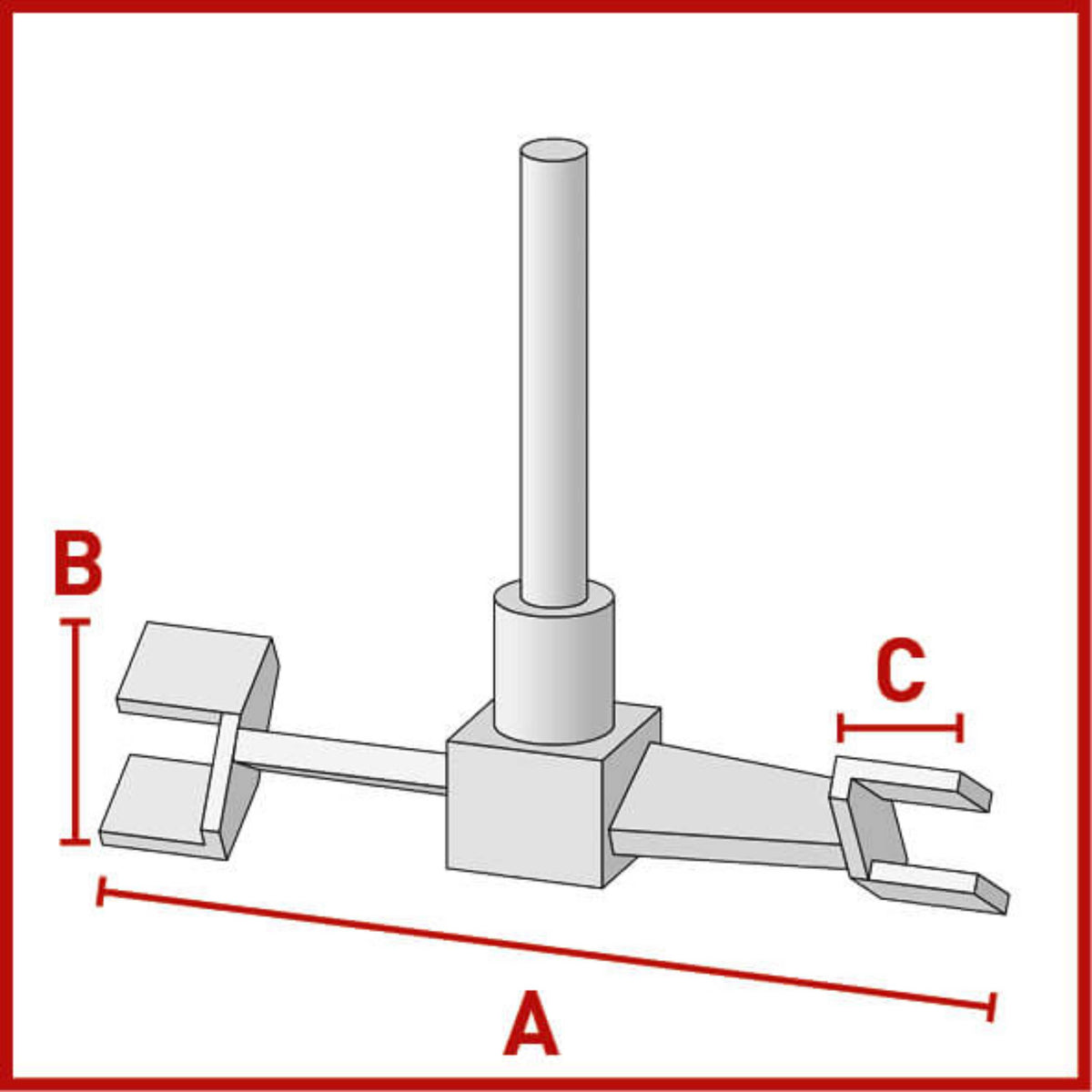

| Dimensions according to drawing [A - B - C mm] |
140 - 34 - 19 |
| Distance of [blades mm] | 150 |
| Length [mm] | 800 |
| Shaft dia. [mm] | 16 |
