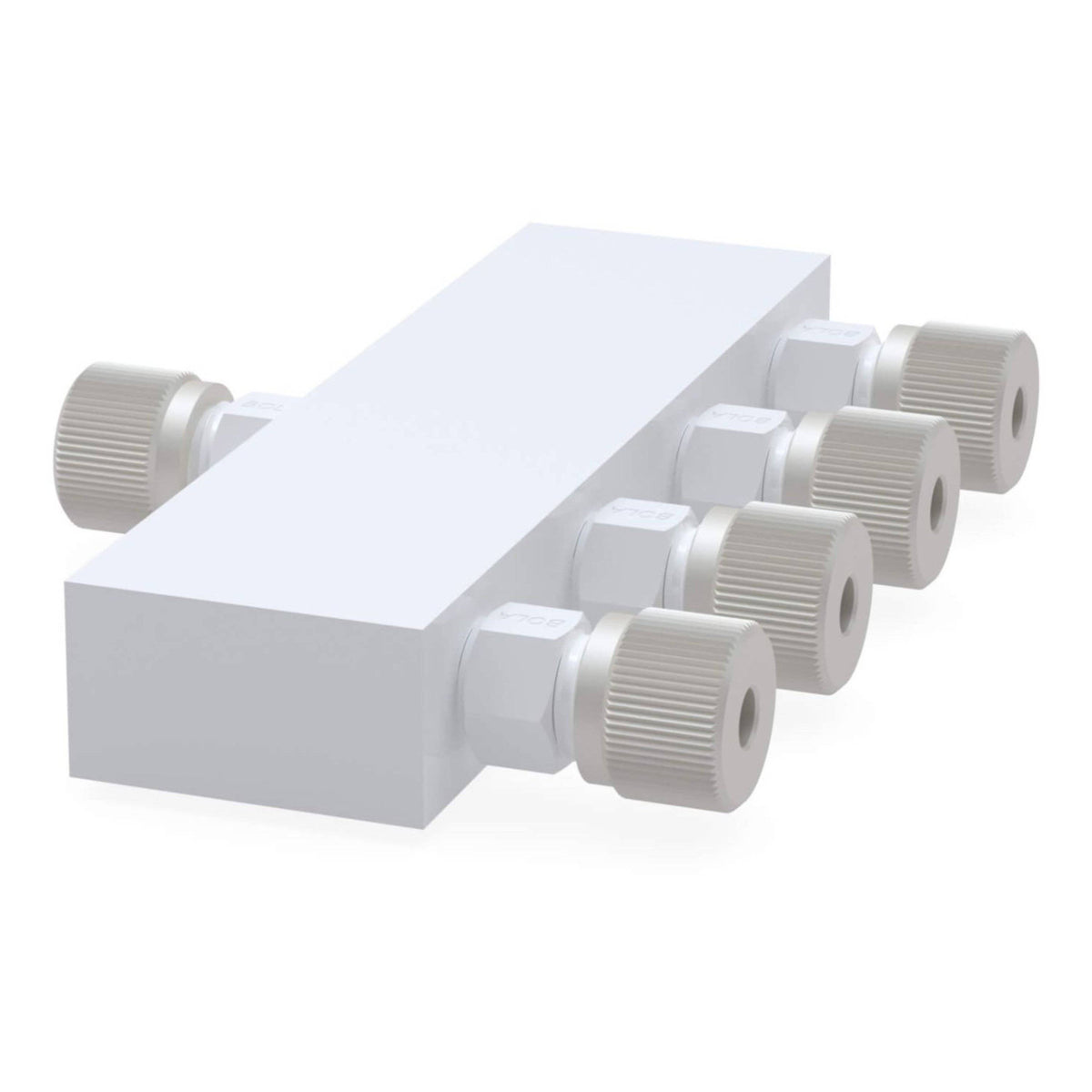

BOLA Distributors (PTFE/PTFE-GF) - 1x Ø 4 mm 4x Ø 4 mm
Product Description
Body made of PTFE with nuts made of glass-fibre reinforced PTFE. One inlet and three or four outlets, bore diameter 6 mm. Universal chemical resistance, the product is only exposed to PTFE.
Specifications:
| Model | D512-08 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Pressure | 5 bar |
| Temperature resistance | from -200°C to +250°C |
| Vacuum | suitable |
| Dimensions [L x W x H mm] | 140 x 22 x 96 |
| For tubing [O.D. mm] | 4 |
| For tubing [O.D. mm] (2) | 4 |
| Inlets [(A)] | 1 |
| Outlets [(B)] | 4 |
| Thread of fitting [M] | 14 x 2 |
