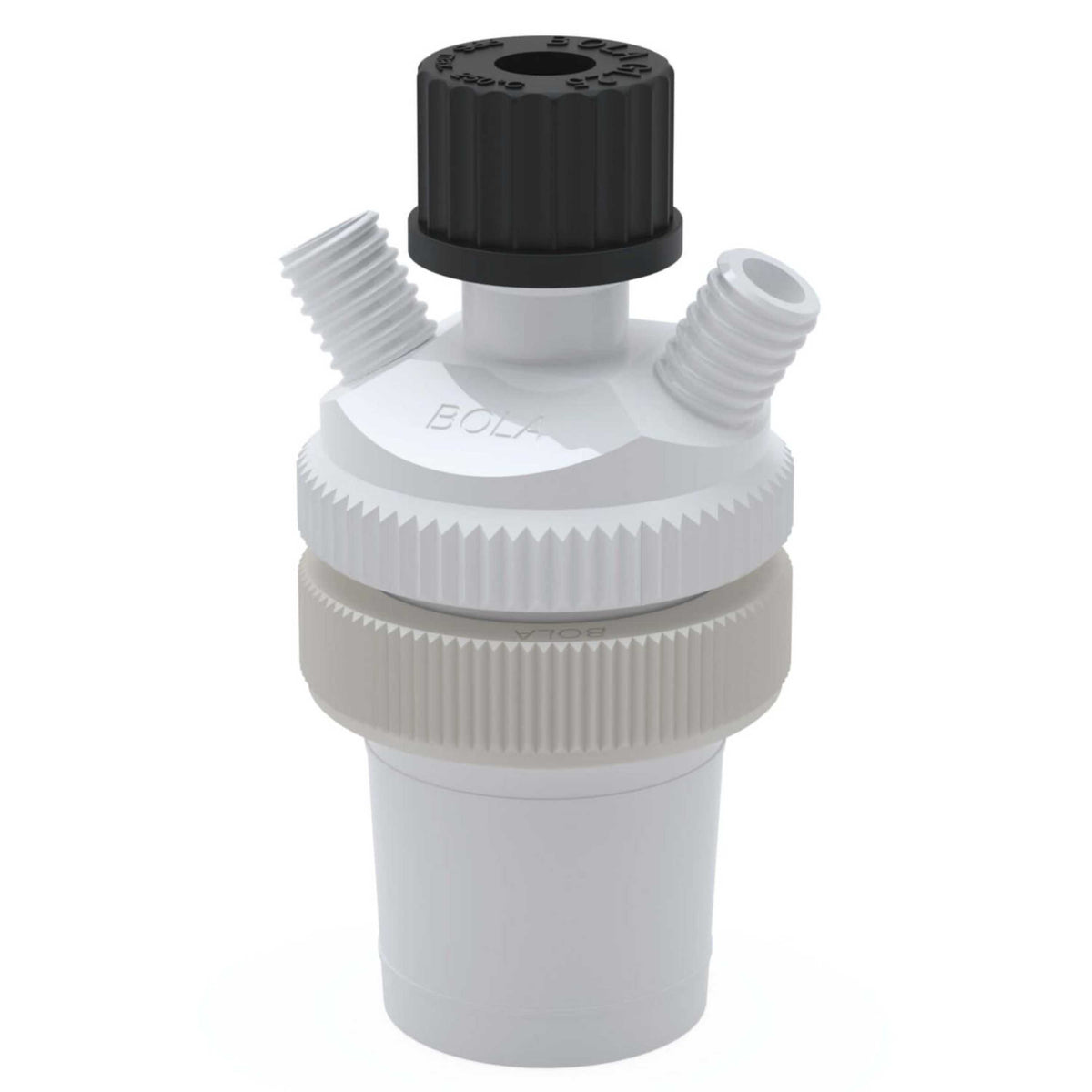

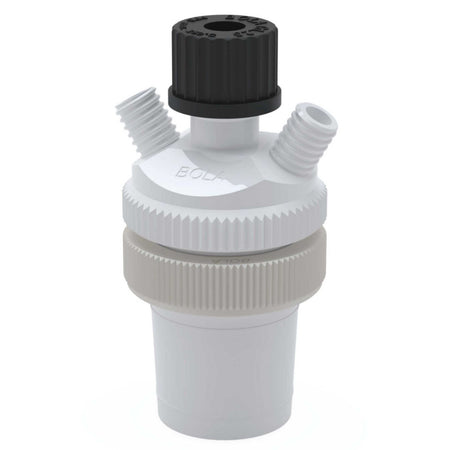

BOLA Distributor with Stirrer Bearing (PTFE ) - NS 45/40 Ø 8 mm 2x GL 14
Regular price
$ 440.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Distributor with Stirrer Bearing (PTFE ) - NS 45/40 Ø 8 mm 2x GL 14
Product Description
Completely made of PTFE. With ground joint NS 45/40 and three GL-threaded necks. Center neck serves as stirrer bearing. A special gasket made of PTFE and an FPM o-ring which is compressed by a GL screw cap provide a good sealing of the stirrer shaft. The lateral necks can be used for connection of tubes and tubing by means of BOLA Laboratory Screw Joints. Integrated special nut for unlocking of stuck ground joint components. Universal chemical resistance, the medium is only exposed to PTFE.
Applications

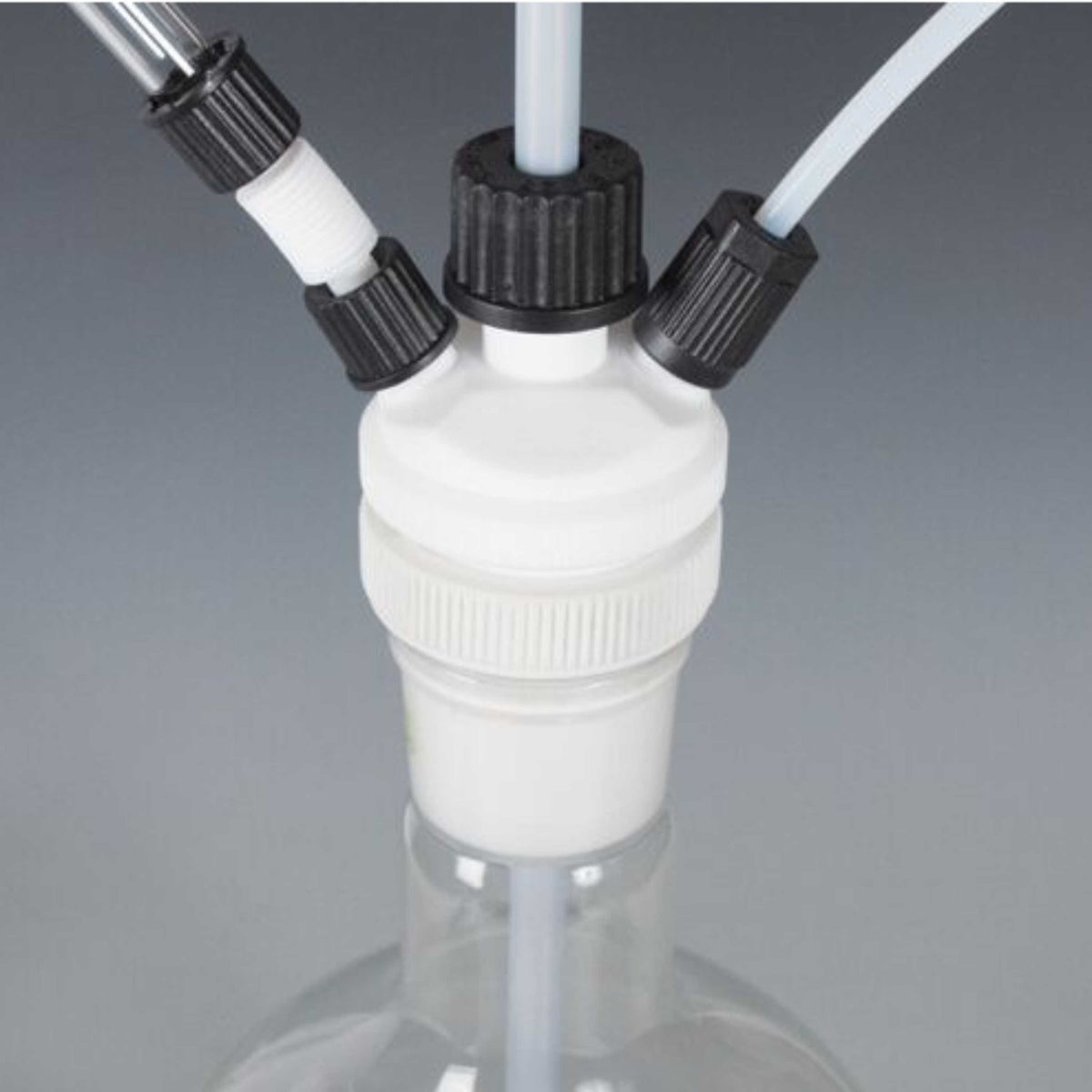

For bottles and reaction vessels with ground joint. Mixing of liquids and addition of further products via the lateral GL-necks at the same time. Suitable replacement parts for the Stirrer Bearing, see BOLA Special Gaskets and BOLA Replacement Screw Caps.
Specifications:
| Model | C435-08 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -15°C to +200°C |
| Autoclave | 121° |
| Center neck [GL] | 25 |
| For stirrer shaft dia. [mm] | 8 |
| For tubing [O.D. mm] | 2x 8 |
| Lateral necks [GL] | 2x 14 |
Downloadable links:
Technical information
Material Safety Data Sheets
