BOLA Centrifugal Stirrer Shafts (PTFE ) - L 600 mm Ø 10 mm aØ 90 mm
Regular price
$ 348.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Centrifugal Stirrer Shafts (PTFE) - L 600 mm Ø 10 mm aØ 90 mm
Product Description
PTFE-jacketed stainless steel shaft, stirring unit (movable paddles, bolt and receiver for paddles) completely made of PTFE. The paddles open up at increasing speed. Universal chemical resistance since the product is only exposed to PTFE.
Applications
The stirrer shaft can be used for stirring in narrow mouth vessels or in vessels with ground joint opening (starting at size NS 24).
Specifications:
| Model | C377-16 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 8,0 |

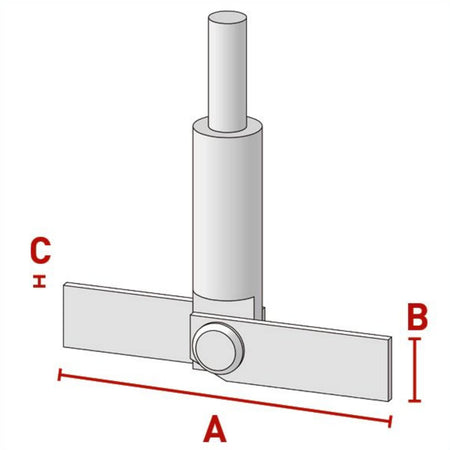

| Dimensions according to drawing [A - B - C mm] | 90 - 17 - 2,5 |
| Length [mm] | 600 |
| Shaft dia. [mm] | 10 |
Downloadable links:
Technical information
Material Safety Data Sheets
