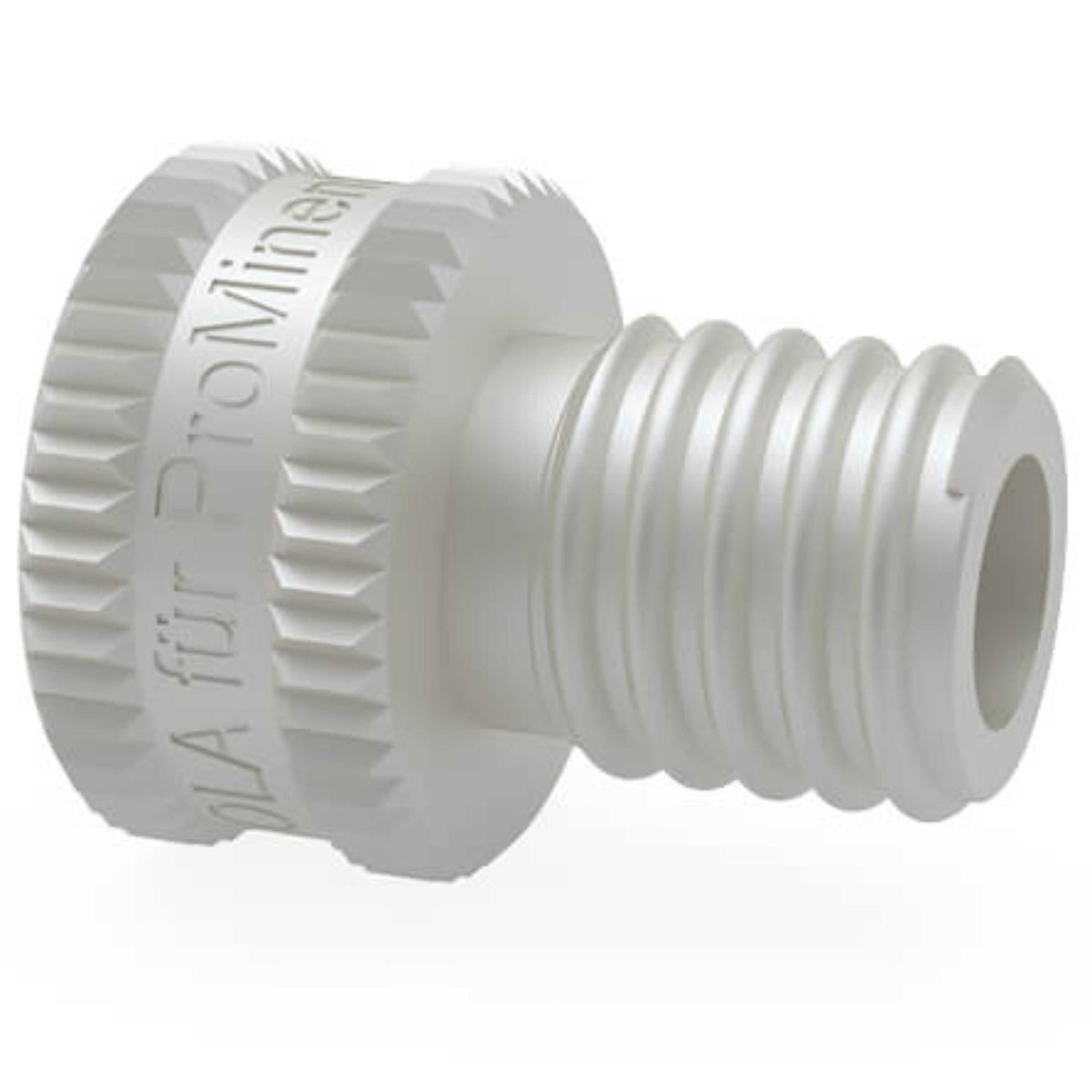

BOLA Adapter for ProMinent Pump (PTFE-GF ) - "Gamma"/GL 18 / M 20 x 1,5
Product Description
Adapter made of glass-fiber reinforced PTFE, transition from pump thread M20 x 1,5 to female thread UNF 1/4 28 G. Pressure resistant connection (max. 10 bar). The tubing is connected by means of tube end fittings to a female thread UNF 1/4 28G. Universal chemical resistance, the product is only exposed to PTFE.
Specifications:
| Model | D730-24 |
| Chemical resistance | +++ universal |
| Material |
PTFE |
| Pressure | 10 bar |
| Temperature resistance | from -200°C to +250°C |
|
Bore dia. [mm] |
10,5 |
|
Connecting thread [GL] |
18 |
