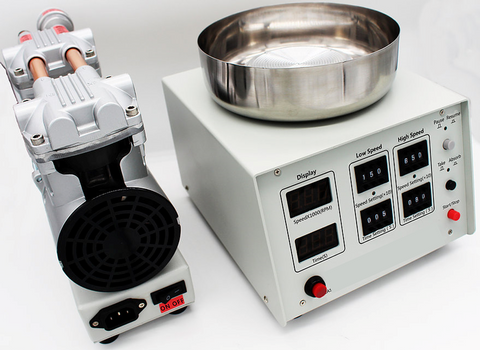

Benchtop Spin Coater (Max. 4" Dia., 8500 rpm ) with Vacuum Pump & 3 Vacuum Chucks

SKU: BR0231

  • $ 3,79595
  • Save $ 45600



Product details:

MSE Supplies offers a benchtop and easy-to-use spin coater (BR0231), which is designed for precise and uniform deposition of thin films and coatings. Its rugged, vibration-free and portable design makes it a versatile tool for any high-quality research facility. A two-stage spin process allows dispensing at low speed and homogenizing the coating at high speed. It is widely used by our customer to deposit metal oxide thin films, polymer coatings and metal organic thin films.

Three standard vacuum chucks (1", 2" and 4") are complimentary offered by MSE Supplies. Please contact us if you need other sized vacuum chucks.

The product figure is for reference only. The actual product may look different based on the product configuration.

Specifications:

SKU# BR0231
Power AC 100-240V, single phase
Substrate Size 5-100mm
Spin Speed 500-8500rpm
Spin Coating Uniformity ±2%
Pumping Speed ≥60L/min
Two Spin Speed Stage

1000-8500rpm High speed

500-8500rpm Low speed

Set Time Range 0-999s
Motor Speed Stability ±1%
Speed Accuracy  ±10rpm
Dimensions 215x240x220mm
Weight 18kg including the pump
Warranty  Limited 2 year warranty. Lifetime technical support.
