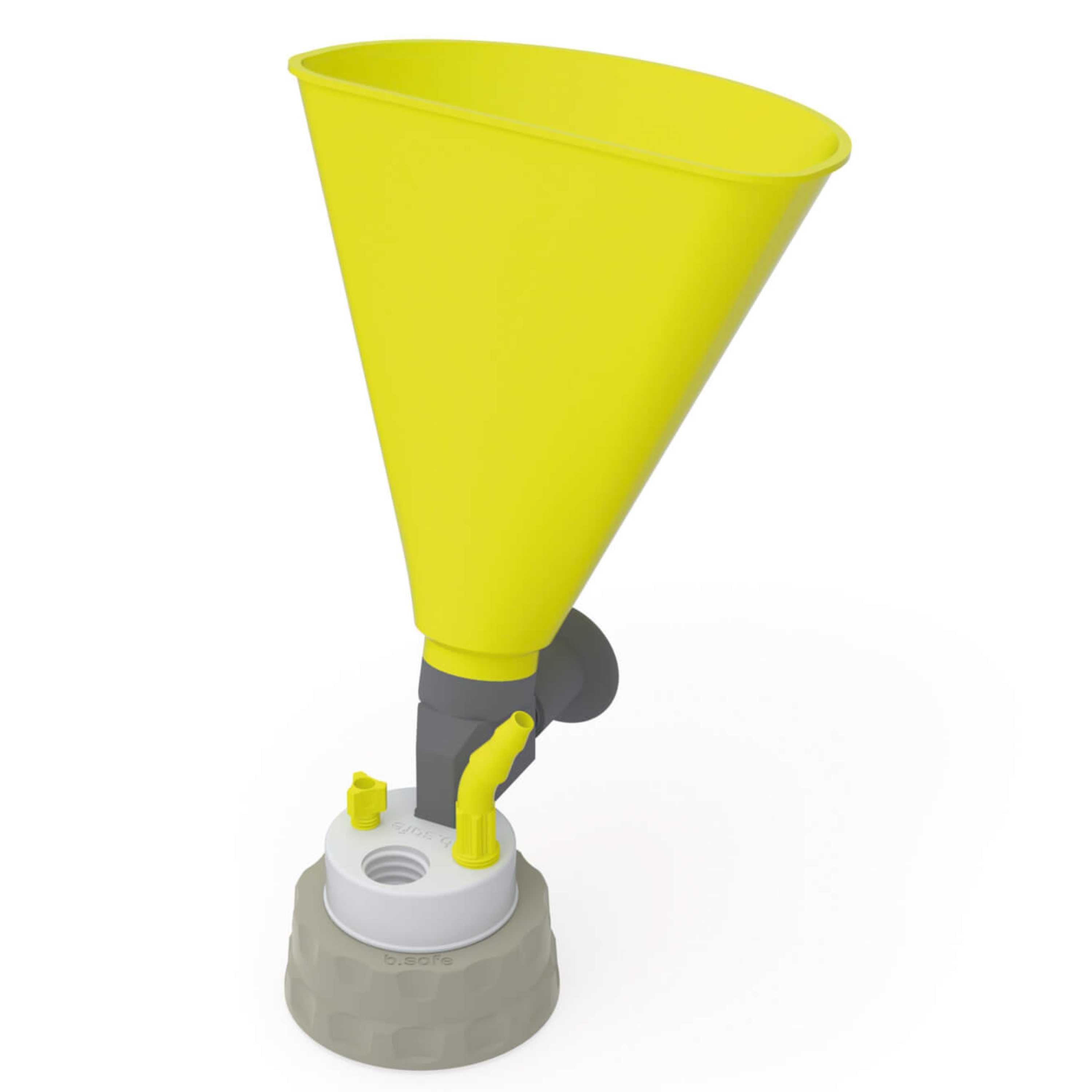

b.safe Waste Cap S51 with Funnel (1x UNF1/4", 1x GL14, 1x NPT1/8" ) (PTFE/PP/PE )
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe Waste Cap S51 with Funnel (1x UNF1/4", 1x GL14, 1x NPT1/8" ) (PTFE/PP/PE )
Product Description
Screw cap made of PP for canister thread S51, free movable insert made of PTFE. With A PFA Fittings for capillaries with O. D. 1,6/2,2/3,2 mm (thread UNF 1/4"), Blind Fittings made of PFA to close unused connections, 1 hose connector for tubing I. D. 5,5-8 mm (thread NPT 1/8"), 1 funnel made of PE with integrated stopcock and 1 connector to screw in a b.safe Exhaust Filter (thread GL14, not included). Version and scope of delivery as per below chart.
Applications
Safe disposal of solvents without leakage of harmful solvent vapors. With b.safe Fittings made of PFA, tubes can be easily inserted in the waste container, the conical seal cone clamps the tubing and seals the connection safely. Large amounts of liquids can be collected by either connecting tubing with ID 6,4-9 mm or directly from bottles or other containers by using the funnel. The integrated stopcock in the funnel avoids that harmful vapors can escape into the ambient air through the filling hole. Solvent vapors from the escaping air during filling are restrained by the Exhaust Filter containing activated carbon. The service life of the filter can be easily monitored through either activating the display on the lid and exchanging the filter in case of completely red coloring or documentation of the exchange date by hand.
Specifications:
|
Model |
M351-25 |
|
Chemical resistance |
++ very good |
|
Material |
PTFE, PP |
|
Temperature resistance |
from 0°C to +110°C |
|
Hose Connectors |
1 x 5,5-8,0 |
|
Number of Blind Fittings [milky white] |
1 |
|
Number of Fittings [green] |
1 x Ø 1,6 mm |
|
Number of Fittings [purple] (2) |
1 x Ø 2,2 mm |
|
Number of Fittings [yellow] (3) |
1 x Ø 3,2 mm |
|
Number of capillary connectors |
1 |
