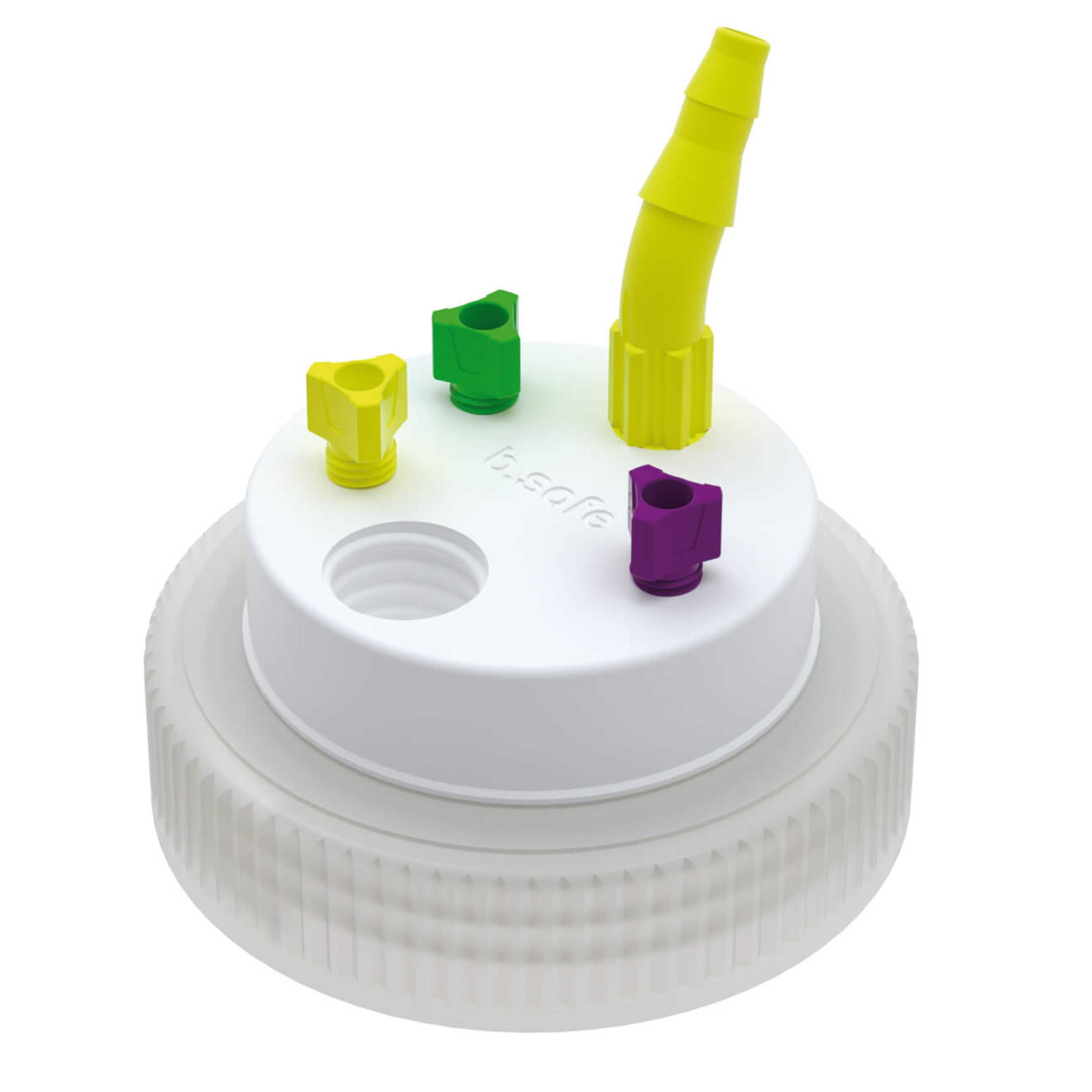

b.safe Waste Cap B63 (3x UNF1/4", 1x GL14, 1x NPT1/8" ) (PTFE/PP )
Regular price
$ 285.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe Waste Cap B63 (3x UNF1/4", 1x GL14, 1x NPT1/8" ) (PTFE/PP )
Product Description
Screw cap made of PP for thread B63, free movable insert made of PTFE. With PFA Fittings for capillaries with O. D. 1,6/2,2/3,2 mm (thread UNF 1/4“), Blind Fittings made of PFA to close unused connections, 1 hose connector for tubing I. D. 5,5-8 mm (thread NPT 1/8“) and 1 connector to screw in a b.safe Exhaust Filter (thread GL14, not included in the scope of delivery). Version and scope of delivery as per below chart.
Applications
Safe disposal of solvents without leakage of harmful solvent vapors. With b.safe Fittings made of PFA, tubes can be easily inserted in the waste container, the conical seal cone clamps the tubing and seals the connection safely. Large amounts of liquids can be collected by connecting tubing with OD 5,5-8 mm. Solvent vapors from the escaping air during filling are restrained by the Exhaust Filter containing activated carbon. The service life of the filter can be easily monitored through either activating the display on the lid and exchanging the filter in case of completely red coloring or documentation of the exchange date by hand.
