b.safe HPLC Waste Collector Justrite (6x UNF 1/4", 7x NPT 1/8" ) (PP )

Order upon Request
SKU: M 827-01
Regular price $ 281.95

Still have questions? Ask our experts!

b.safe HPLC Waste Collector Justrite (6x UNF 1/4", 7x NPT 1/8" ) (PP )

Product Description

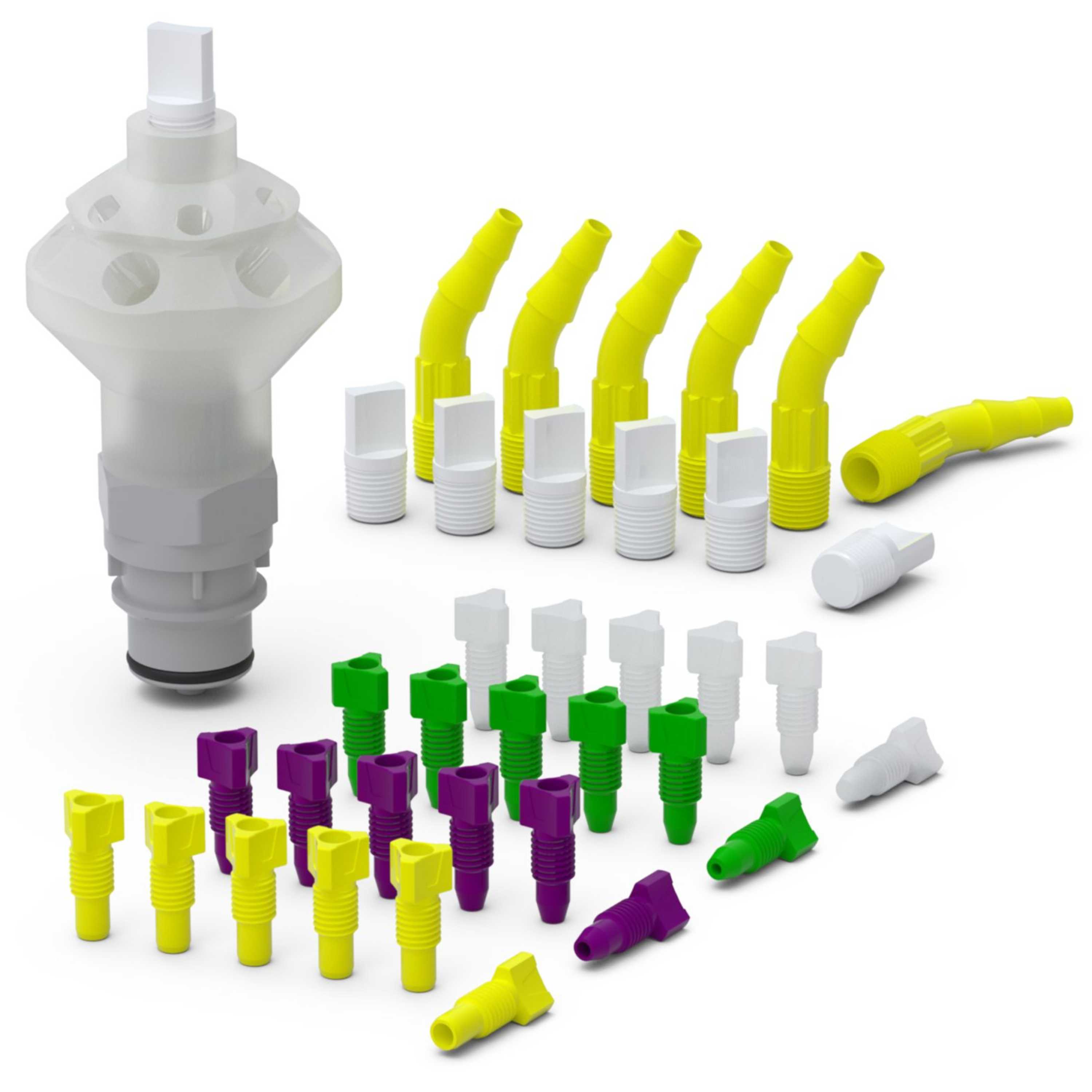

Collector for assembly on the lateral couplings of Justrite® Disposal Safety Cans for collection of HPLC waste, six connections for capillaries with O. D. 1,6/2,2/3,2 mm (thread UNF 1/4") and seven hose connectors for tubing I. D. 5,5-8 mm (Gewinde NPT 1/8“). Fittings for capillaries, hose connectors and blind fittings to close unused connections are included. Version either with collector and coupling made of polypropylen or with collector made in static dissipative PE-EX.

Applications

For collection of HPLC waste in Justrite® Disposal Safety Cans. Compatible with the standard quick-disconnect couplings in polypropylene and stainless-steel.

Specifications:

Model

M827-01

Chemical resistance

++ very good

Material

PE-EX, PP

Temperature resistance

from 0°C to +80°C

Hose Connectors

2 x Ø 5,5 -8 mm

Material Adapter

PP

Material Coupling

PP

Number of Blind Fittings [milky white]

6

Number of Blind Fittings [white] (2)

7

Number of Fittings [green]

6 x Ø 1,6 mm

Number of Fittings [purple] (2)

6 x Ø 2,2 mm

Number of Fittings [yellow] (3)

6 x Ø 3,2 mm


Downloadable links:

Technical information

Material Safety Data Sheets
