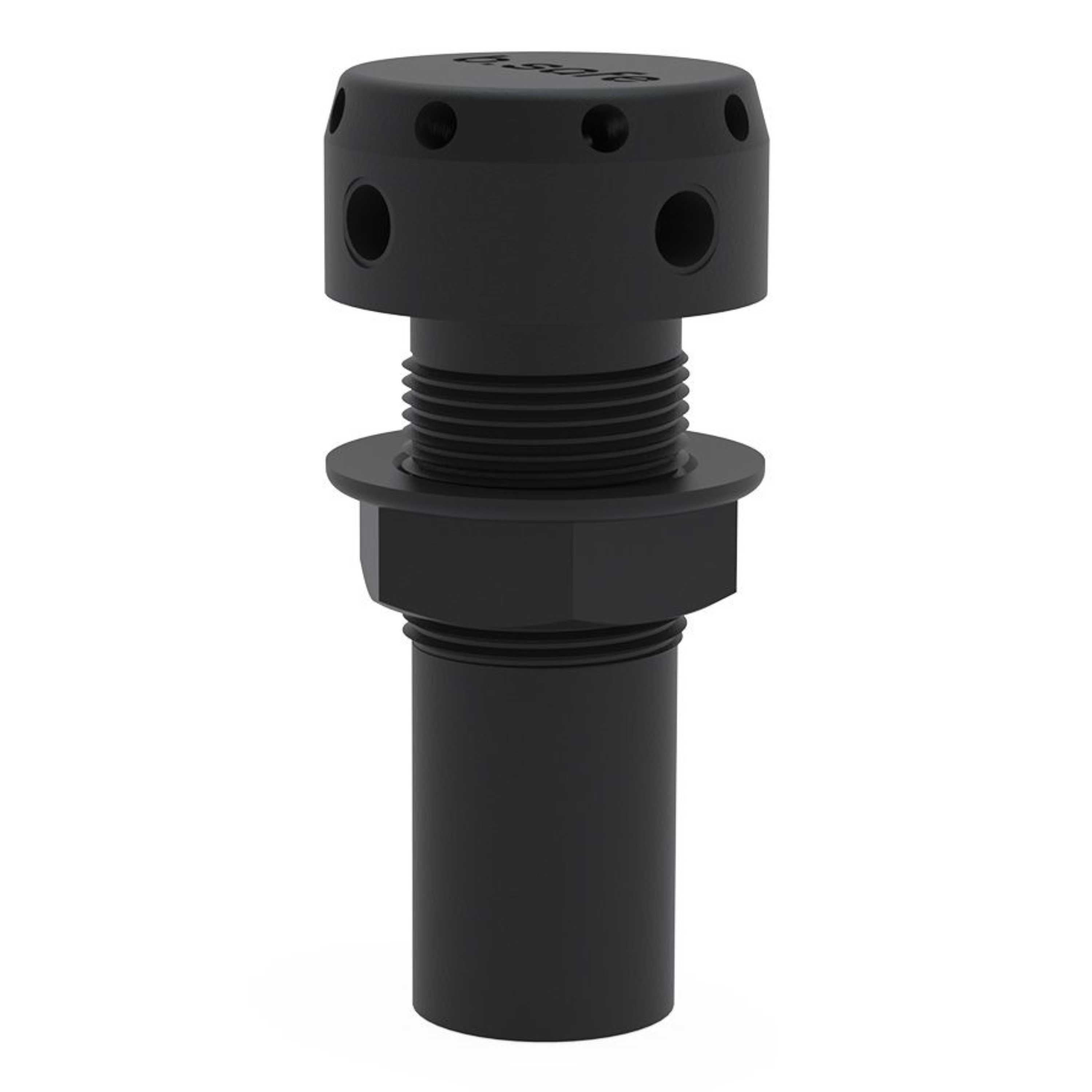

b.safe Desktop Mount Multiport IV for Waste Pipes (8x UNF 1/4", 4x NPT 1/8" ) (PE-EX )
Product Description
Made of static dissipative PE-EX, suitable for tiles with a thickness of 10 to 35 mm, easy fixing by counter nut. Low installation height due to connections at the sides, all threads are inclined to provide additional sloping and connection of tubes without bending. Connections at upper side: 4x2 capillaries (female thread UNF 1/4“) to connect capillaries with b.safe fittings, 4x1 tube connection (female thread NPT 1/8“) for hose connectors. Fittings and hose connectors are not included in the scope of delivery. Connections at bottom: O.D. 32 mm for direct connection with rigid b.safe Pipe Connections, can be shortened if necessary.
Applications
One connection for up to 4 HPLC systems that can be integrated directly in laboratory hoods or working tables. b.safe Waste Tubes lead liquid solvent waste directly into connected canisters.
Dimensional Drawing
Specifications:
|
Model |
R1127-04 |
|
Chemical resistance |
++ very good |
|
Material |
PE / PE-EX |
|
Temperature resistance |
from -50°C to +80°C |
|
Connection [bottom] |
Außen-Ø / O.D. 32 mm |
|
No. of hose connections |
4x NPT 1/8" |
|
Number of capillary connectors |
8x UNF 1/4" |
|
Total length [mm] |
268 |
