Home » b.safe Control Waste Caps S60 (3x UNF1/4", 1x GL14 ) (PTFE/PP-GF )
b.safe Control Waste Caps S60 (3x UNF1/4", 1x GL14 ) (PTFE/PP-GF )
b.safe Control Waste Caps S60 (3x UNF1/4", 1x GL14 ) (PTFE/PP-GF )
b.safe

b.safe Control Waste Caps S60 (3x UNF1/4", 1x GL14 ) (PTFE/PP-GF )

Order upon Request
SKU: M 206-41
$ 666.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

b.safe Control Waste Caps S60 (3x UNF1/4", 1x GL14 ) (PTFE/PP-GF )

Product Description

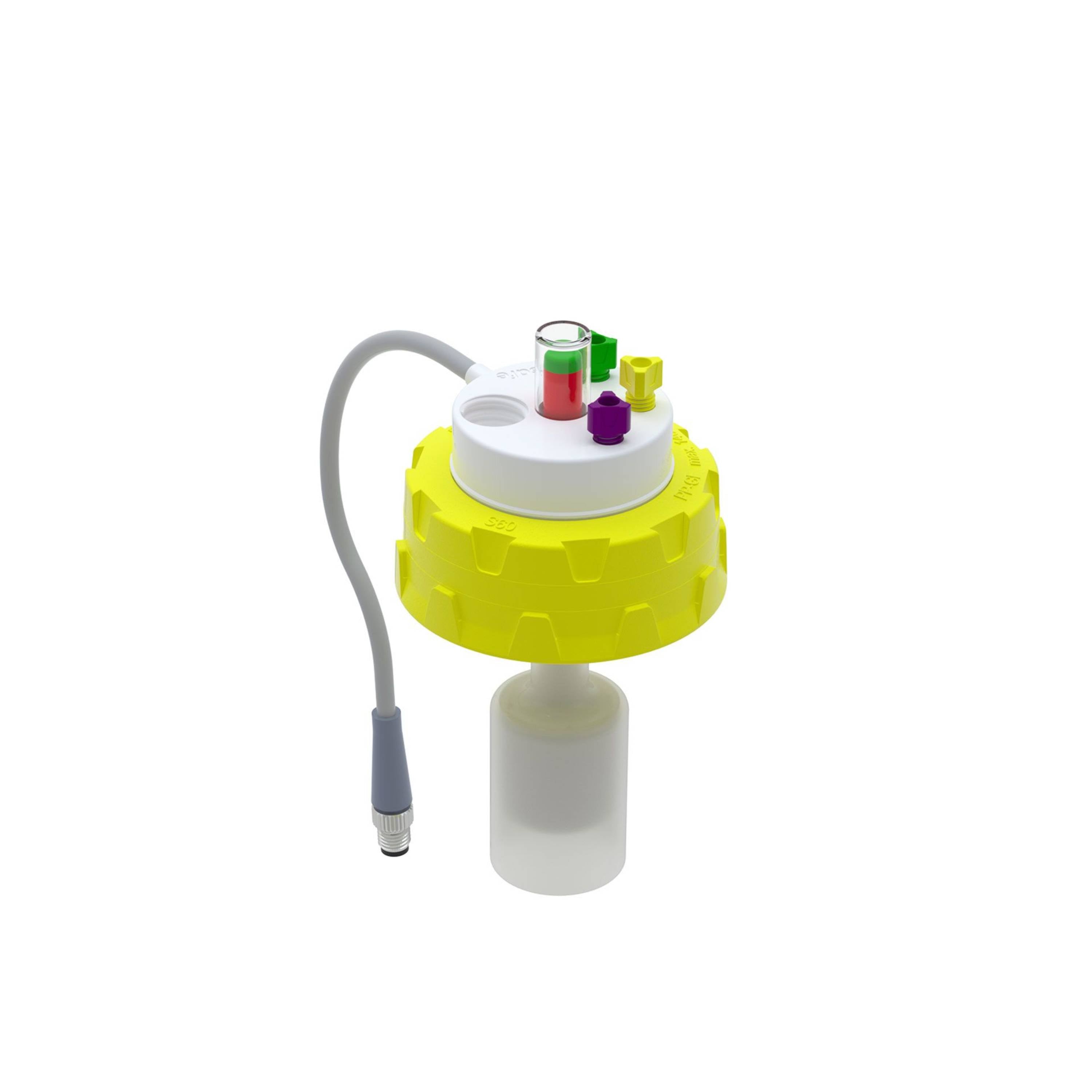

Screw cap made of PP-GF for S60 canister thread, free movable insert made of PTFE with permanently fixed cable (length 0,5 m) to connect an electronic Level Indicator (b.safe Display) as well as sight glass and visual pin for additional optic control of the filling level. With PFA Fittings for capillaries with O. D. 1,6 / 2,2 / 3,2 mm (UNF 1/4" thread), Blind Fittings to close unused connections, 1 hose connector for tube I. D. 5,5-8 mm (NPT 1/8” thread) and 1 connector to screw in a b.safe Exhaust Filter (GL14 thread, not included in the scope of delivery). Version and scope of delivery as per below chart.

Applications

To avoid spill over of canisters through the connection of a Waste Cap to a b.safe Display for electronic level control. The filling levels of waste containers in laboratory cupboards and workbenches can be reliably monitored. Additionally, you can use all benefits of b.safe Caps such as the connection of capillaries through b.safe Fittings and tubing with the appropriate hose connectors. Solvent vapours from the escaping air during filling are restrained from the Exhaust Filter with active carbon filling.

Specifications:

Model M 206-41
Chemical resistance: ++ very good
Material: PTFE, PP-GF
Temperature resistance: from -50°C to +80°C
Grounding connection -
Hose Connectors 0
Number of Blind Fittings [milky white] 2
Number of Fittings [green] 3 x Ø 1,6 mm
Number of Fittings [purple] (2) 3 x Ø 2,2 mm
Number of Fittings [yellow] (3) 3 x Ø 3,2 mm
Number of capillary connectors 3
