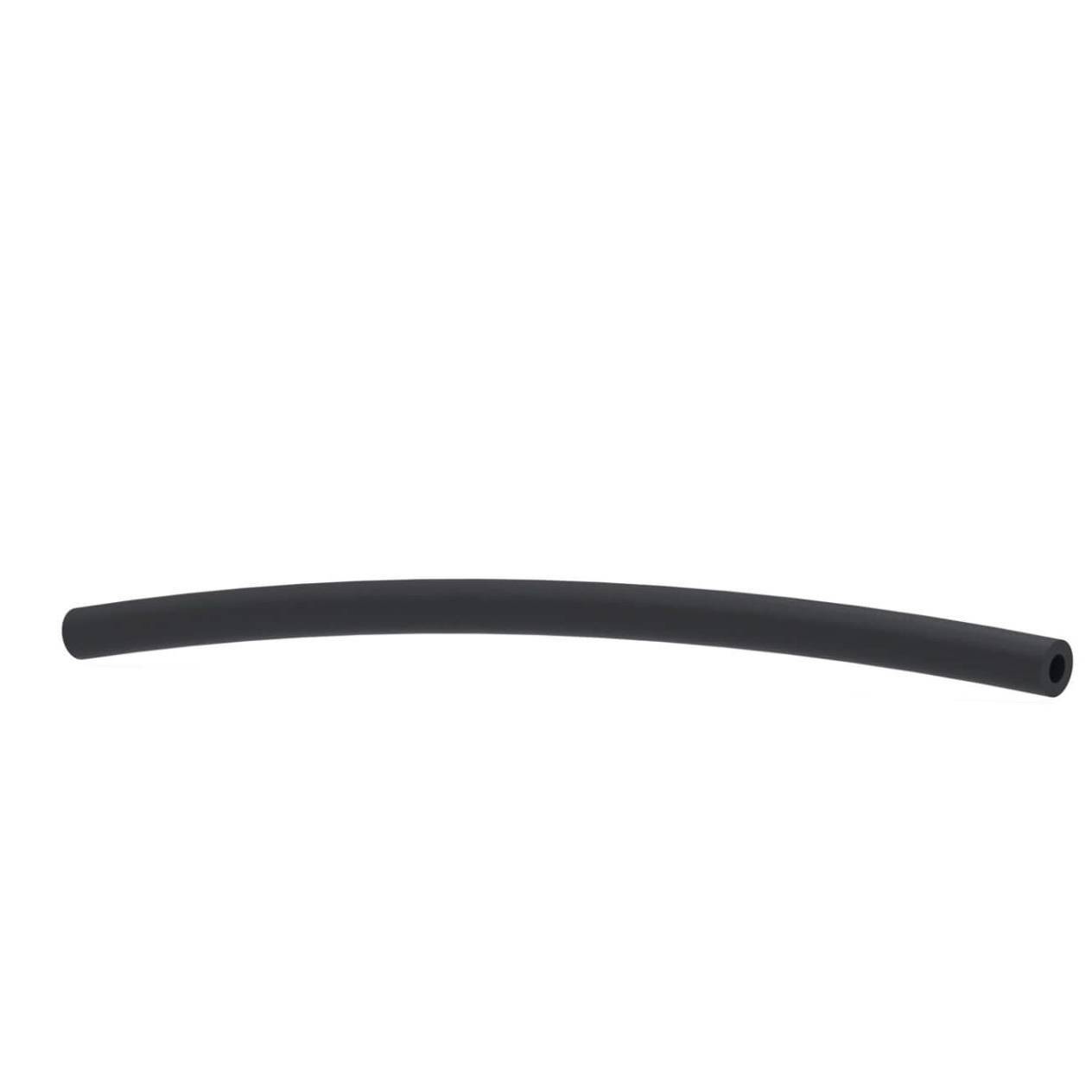

b.safe Antistatic Explosion-Proof Tubing (Ø 10 mm x Ø 12 mm t= 1 mm ) (PTFE-EX )
Regular price
$ 53.95
Couldn't load pickup availability
Still have questions? Ask our experts!
b.safe Antistatic Explosion-Proof Tubing (Ø 10 mm x Ø 12 mm t= 1 mm) (PTFE-EX)
Product Description
Very good electric conductivity due to a special “antistatic compound” made of pure PTFE and finest, highly pure carbon dust (less than 2,5%). Colour: black.
Product advantages
-
Extensive chemical resistance due to PTFE parts
-
Resistance of less than 1000kOhm according to DIN EN 12115 directive
- Ideal for light-sensitive substances
Applications
-
Antistatic applications
-
In explosive ambiance (explosion protection)
-
For transport of solvents or alcohols
-
Bending radius: minimum bending radius in mm at a room temperature of 23°C
- Burst pressure: computed value in bar at a room temperature of 23°C. It is recommended to restrict the maximum working pressure to 25% of the burst pressure. For higher temperatures, this value has to be multiplied by a reduction factor. It is the users responsibility to check if the used tubing fulfills the respective requirements.
Specifications
| Model | R770-16 |
| Chemical resistance | +++ universal |
| Conductivity | 1.000 kOhm |
| Material | PTFE EX |
| Temperature resistance | from -200°C to +250°C |
| Bending radius (1) [mm] | 144 |
| Burst pressure (2) [bar] | 28 |
| I.D. [mm] | 10,0 |
| O.D. [mm] | 12,0 |
| Wall thickness [mm] | 1,0 |
