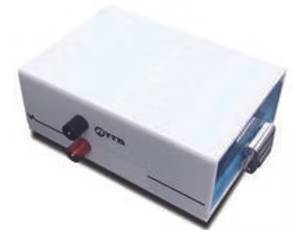

ATTO WSE-4045 Horizon BLOT 4M-Blotting Device
Regular price
$ 2,609.95
Couldn't load pickup availability
Still have questions? Ask our experts!
ATTO WSE-4045 Horizon BLOT 4M-Blotting Device
Buy ATTO products from MSE Supplies at the best Value.
Purpose and Application:
- Semi-dry blotting for transferring proteins from 4 mini gels (Western Blotting)
Features:
- Improved Electrode plate setting enabled;
uniform and firm contact of gels and membranes; fast blotting - Electrode plate size: 205×200 mm
For use in 4 mini gels (8 x 9cm), or Larger size gel blotting is available - Rapid semi-dry blotting is possible with AE-1465 EzFastBlot (10-30min)
- Blotting high molecular protein is possible with WSE-7210 EzFastBlot HMW (30-60min)
- Expert roller included for easy setting layout (gel, membrane, filter paper)
- 1/10 of transfer buffer is enough of a wet blot
- Electrode for drug resistance: washable system
MSE Supplies is an authorized distributor of ATTO products.
Technical Data:
| SKU# | WSE-4045 |
| ATTO Model | WSE-4045 |
| Application | Semi-dry blotting |
| Electrode size | 205 (W) x 200 (D) mm |
| Distance between electrodes | Min: 3 mm, Max: 15 mm |
| Available number of gel for blotting | 4 mini gels |
| Method | Vertical (Semi-dry blotting) |
| Blotting solution volume | 100-400 mL (depending on the size and number of gel) |
| Electrode polarity | Top: Cathode / Bottom: Anode |
| Material | Main unit: Acrylic Anode: Platinized titanium Cathode: Corrosion-resistant stainless steel |
| Safety measure | Power lead wire with safety terminal, reverse polarity prevention |
| Dimension / Weight | 246 (W) x 235 (D) x 92 (H) mm (Main unit without projection) 3.0 kg (except wiring) |
| Components | WSE-4045 main unit 1 ea Power lead wire with safety terminal and reverse polarity prevention 1 ea Roller 1 ea |
