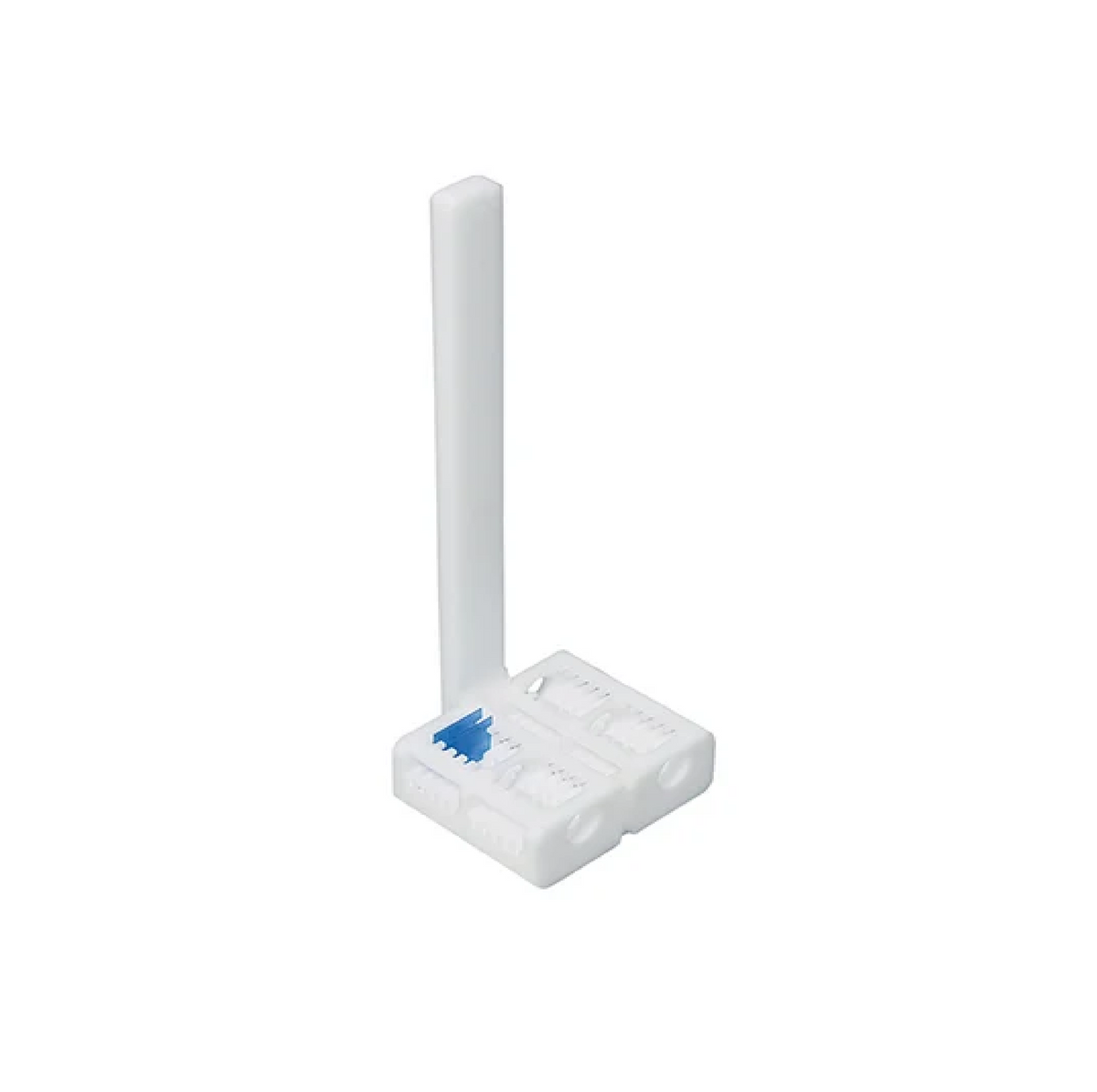

ASONE PTFE Welding Type Substrate Cleaning Carrier with 20-piece capacity
Couldn't load pickup availability
Still have questions? Ask our experts!
ASONE PTFE Welding Type Substrate Cleaning Carrier with 20-piece capacity
Buy AS ONE Corporation products from MSE Supplies at the best Value. Made in Japan.
Key Features
-
Excellent Chemical Resistance: Made entirely of fluoropolymer resin for excellent chemical resistance in demanding laboratory environments.
-
Versatile Applications: Designed to securely hold workpieces during cleaning, etching, and drying processes for semiconductors, electronic components, and glass substrates.
-
Reliable Workpiece Handling: Provides secure support during chemical processing to help prevent workpiece displacement and damage.
MSE Supplies offers a wide range of substrate cleaning carriers. Please contact us for more information.
Specification
Details
Carrier/Overall Dimension (mm)
40 × 34 × 15/150
Type
PTFE-Welded Type
Material – Body/Handle
PTFE
Material – Mesh
ETFE
Material – Screw
PTFE
Applicable Workpiece Size (mm)
10 × 10 (Square)
Applicable Workpiece Thickness (mm)
0.4–1.0
Workpiece Capacity
20 Pieces
