ASONE PTFE Floating Presser Type Substrate Cleaning Carrier

Buy AS ONE Corporation products from MSE Supplies at the best Value. Made in Japan.

Introduction

The PTFE cleaning carrier is a chemically resistant laboratory tool designed for safely handling, transferring, and immersing substrates, chips, and small components in chemical solutions and solvents. Made entirely from high-purity PTFE, it offers excellent resistance to acids, alkalis, and a wide range of aggressive chemicals while minimizing the risk of contamination. Its durable construction makes it well suited for semiconductor, materials research, electrochemical, and general laboratory applications where reliable chemical handling is required.

Key Features

  • All-PTFE construction for excellent chemical resistance and durability.

  • Excellent resistance to acids and alkalis, making it suitable for demanding laboratory applications.

  • Ideal for cleaning substrates and chips using various organic solvents.

  • Groove drain holes are available to facilitate efficient liquid drainage and cleaning.

MSE Supplies offers a wide range of subsrate dippers and cleaners. Please contact us for more information.

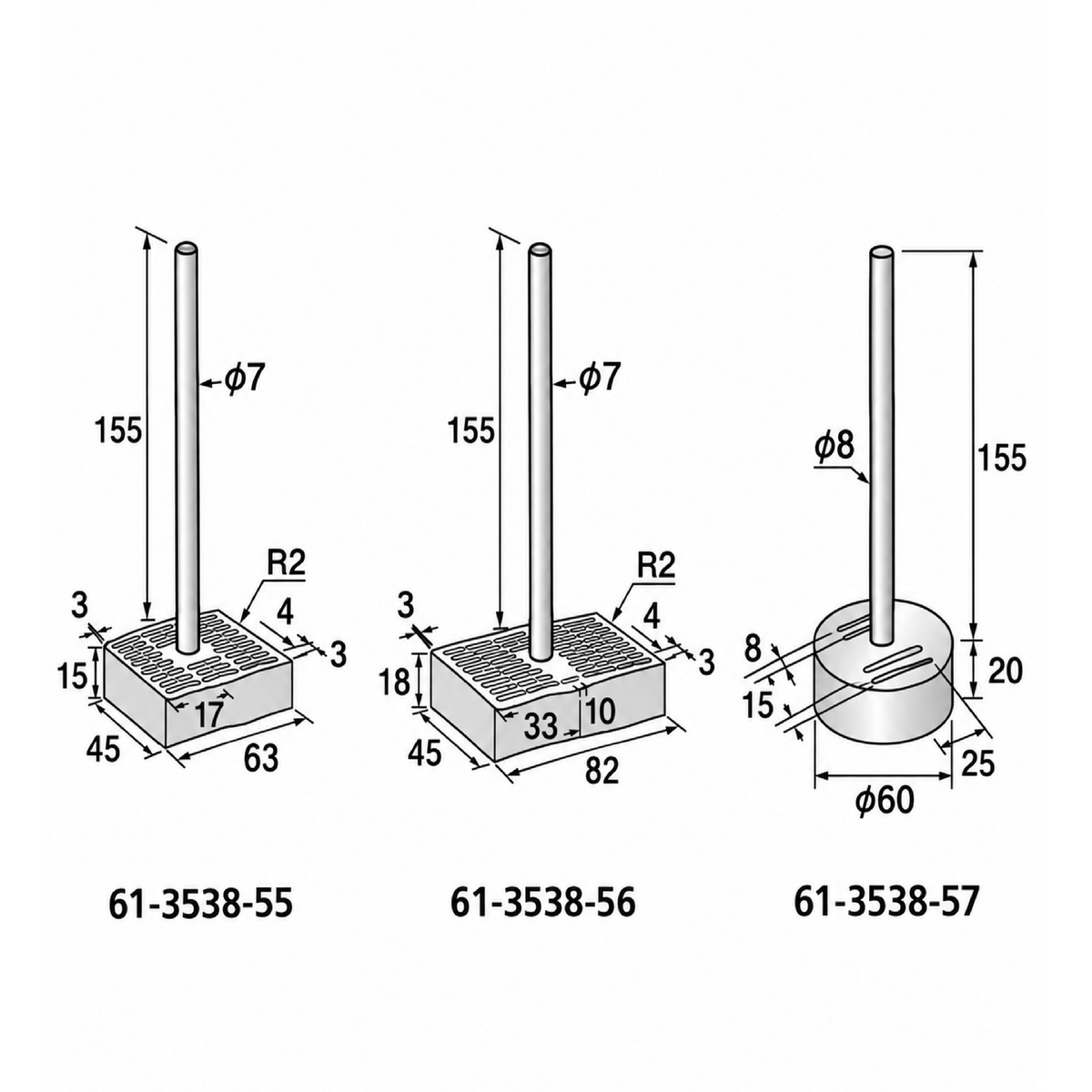

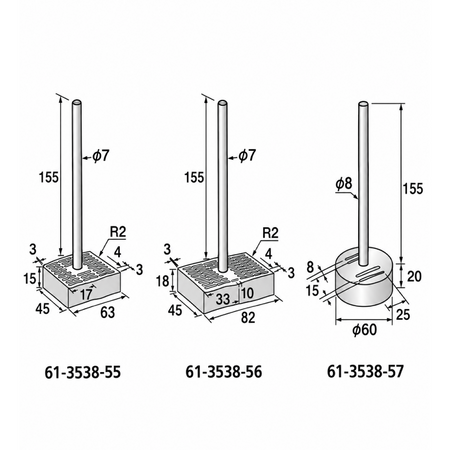

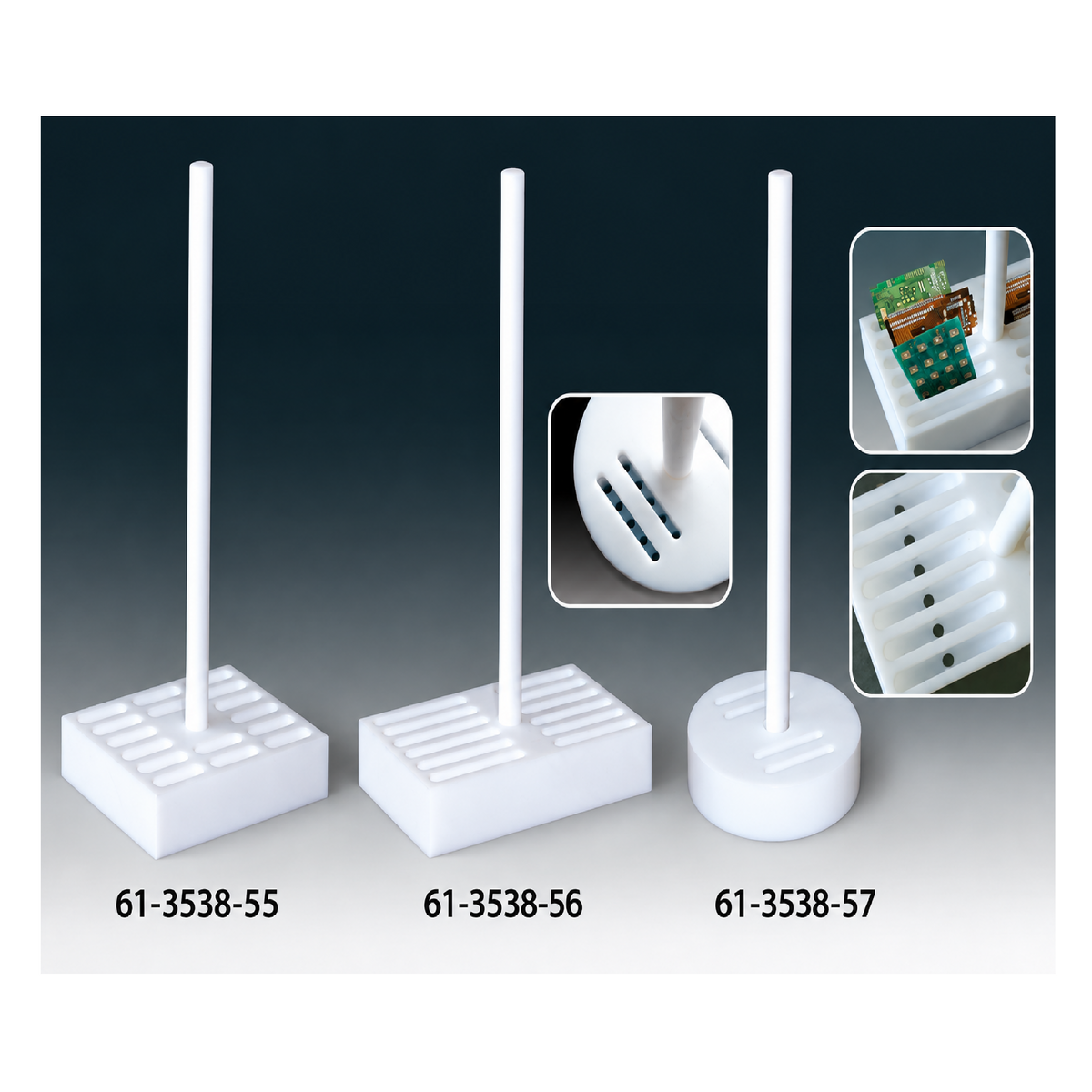

SKU Body Shape Body (mm) Shaft Dimension (mm) Number of Grooves Groove Dimension Suitable Beaker Size (ml)

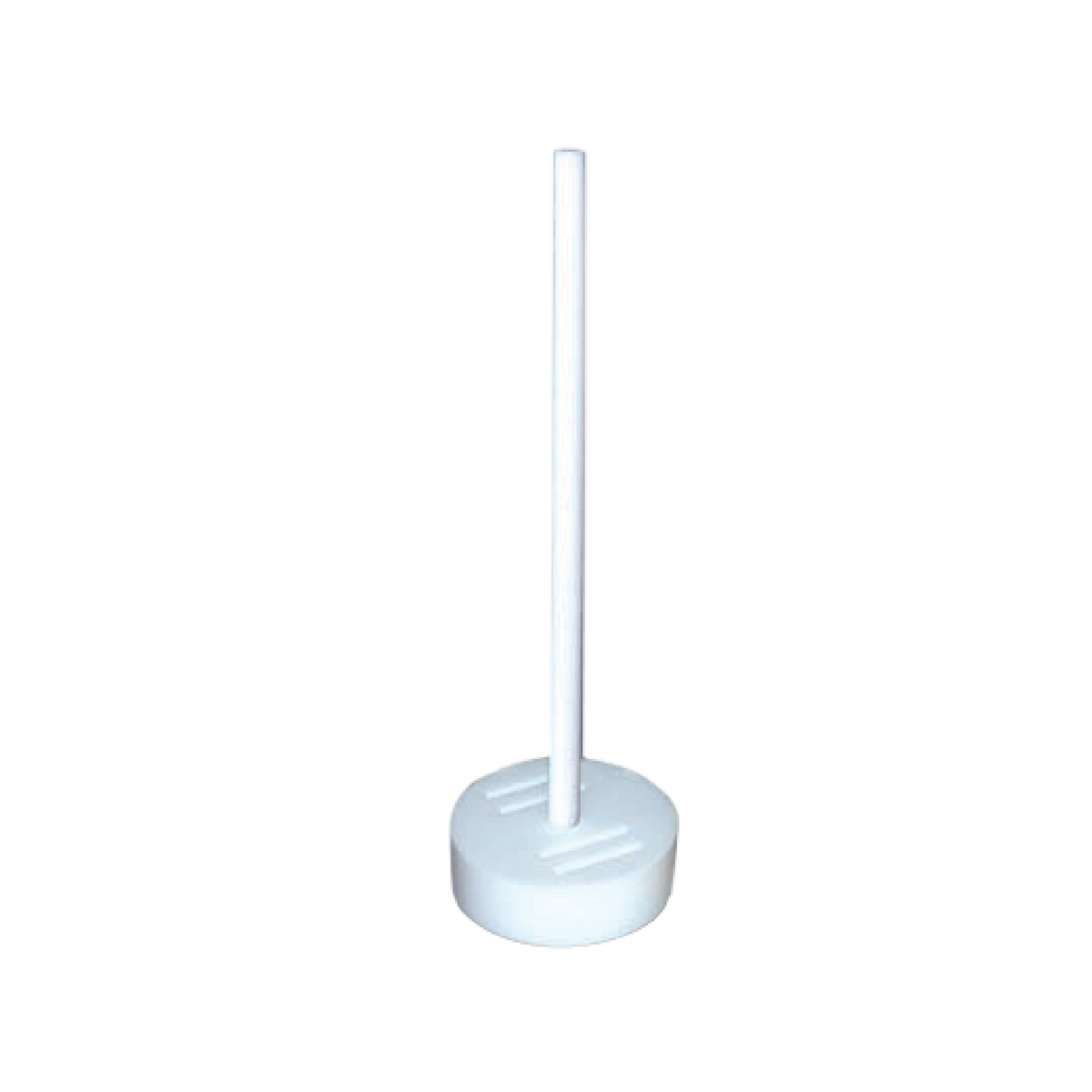

61-3538-57 Round 60φ x H20 8φ x H155 4 2.5 x 25 x 15 200

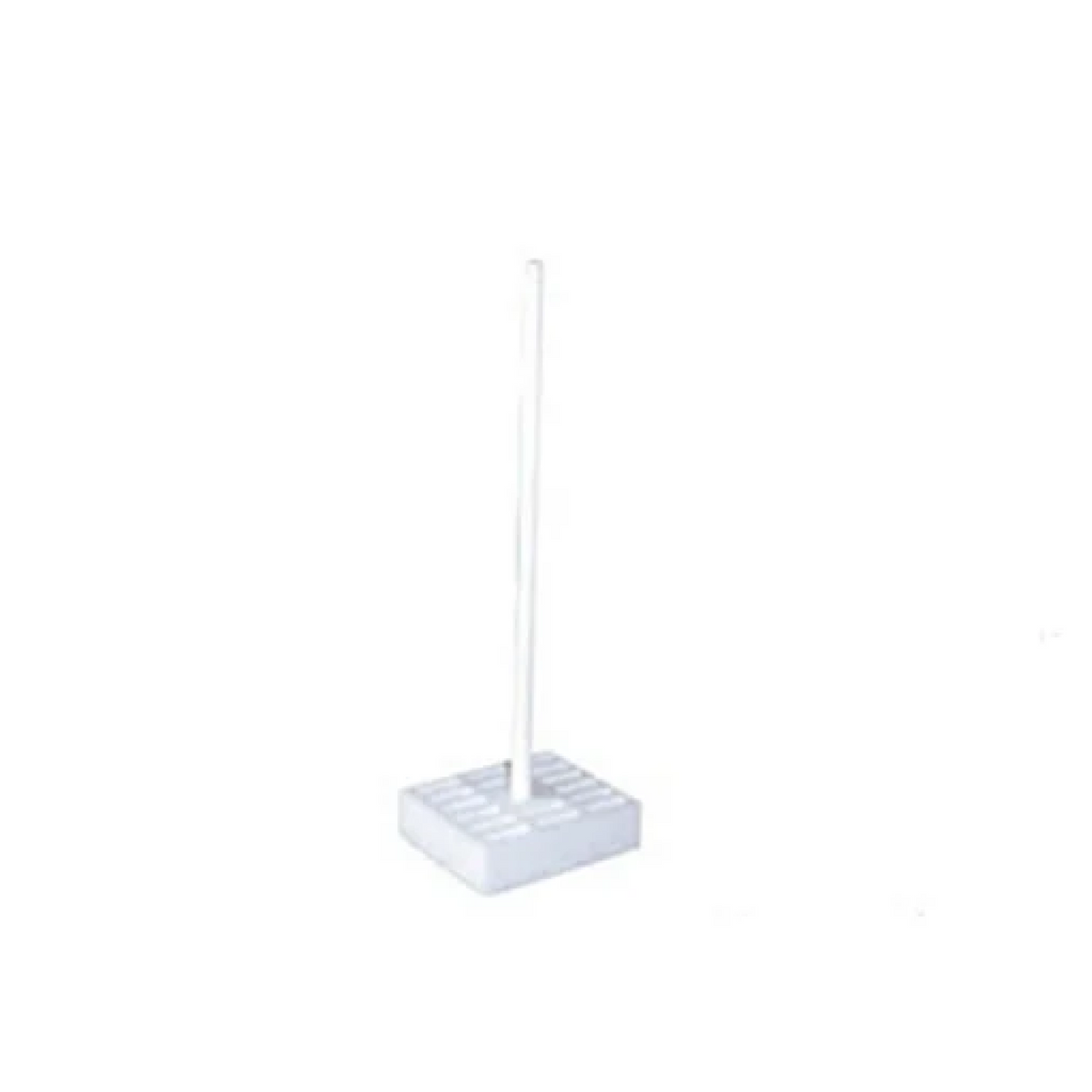

61-3538-55 Square 63 x 45 x H15 7φ x H155 16 4 x 17 x 13 500

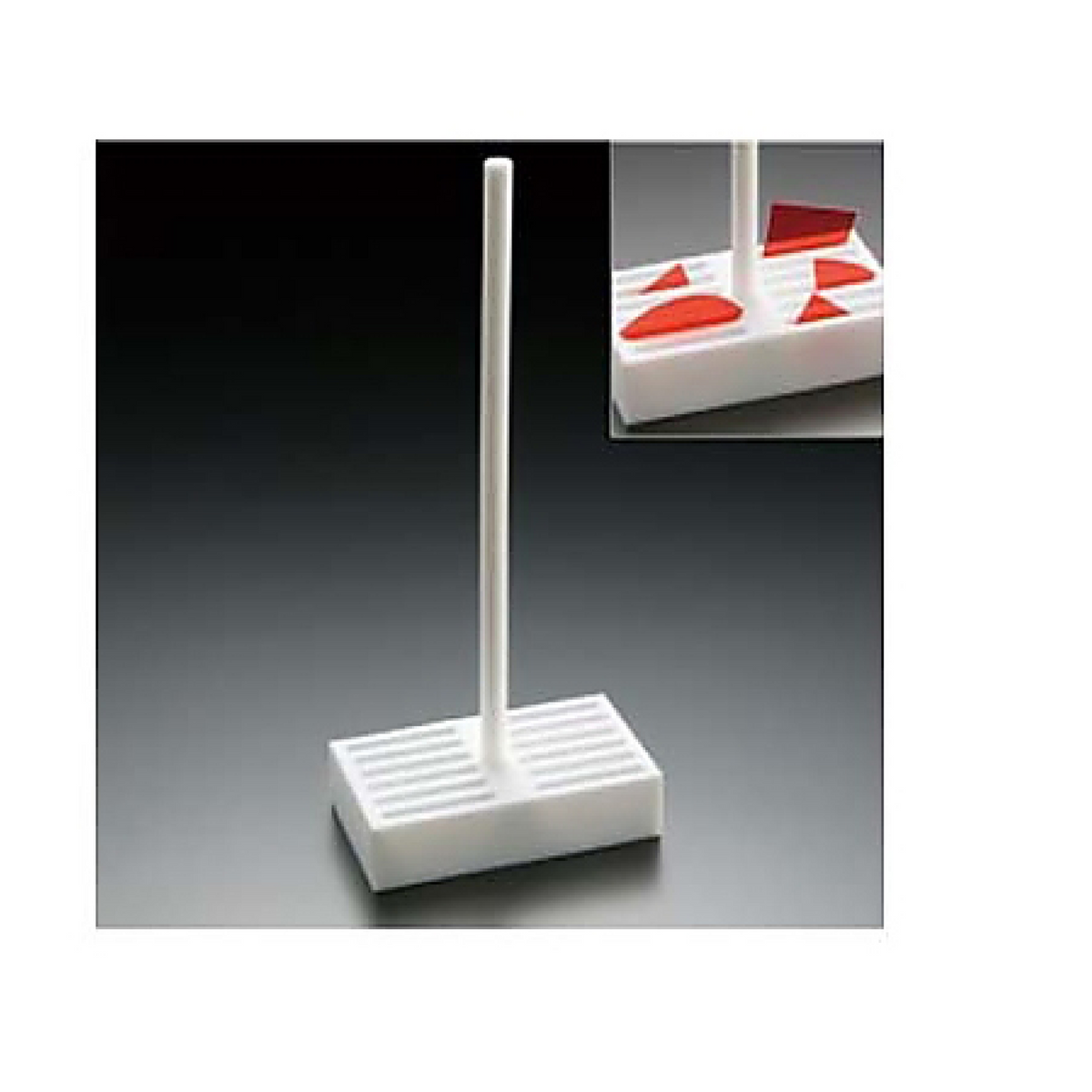

61-3538-56 Square 63 × 45 × H 15 7φ × H 155 12  4 × 33 x 16 1000
