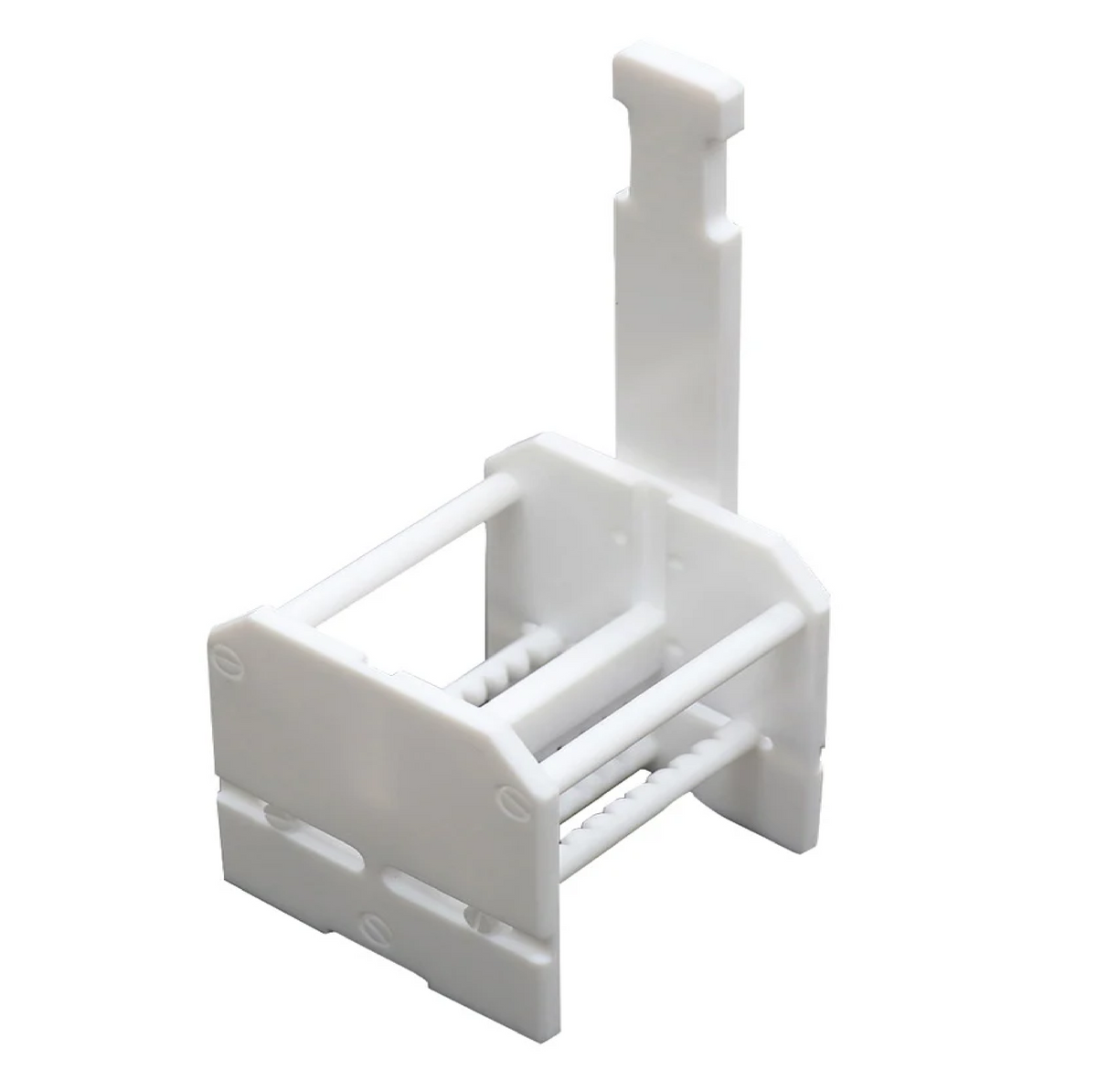

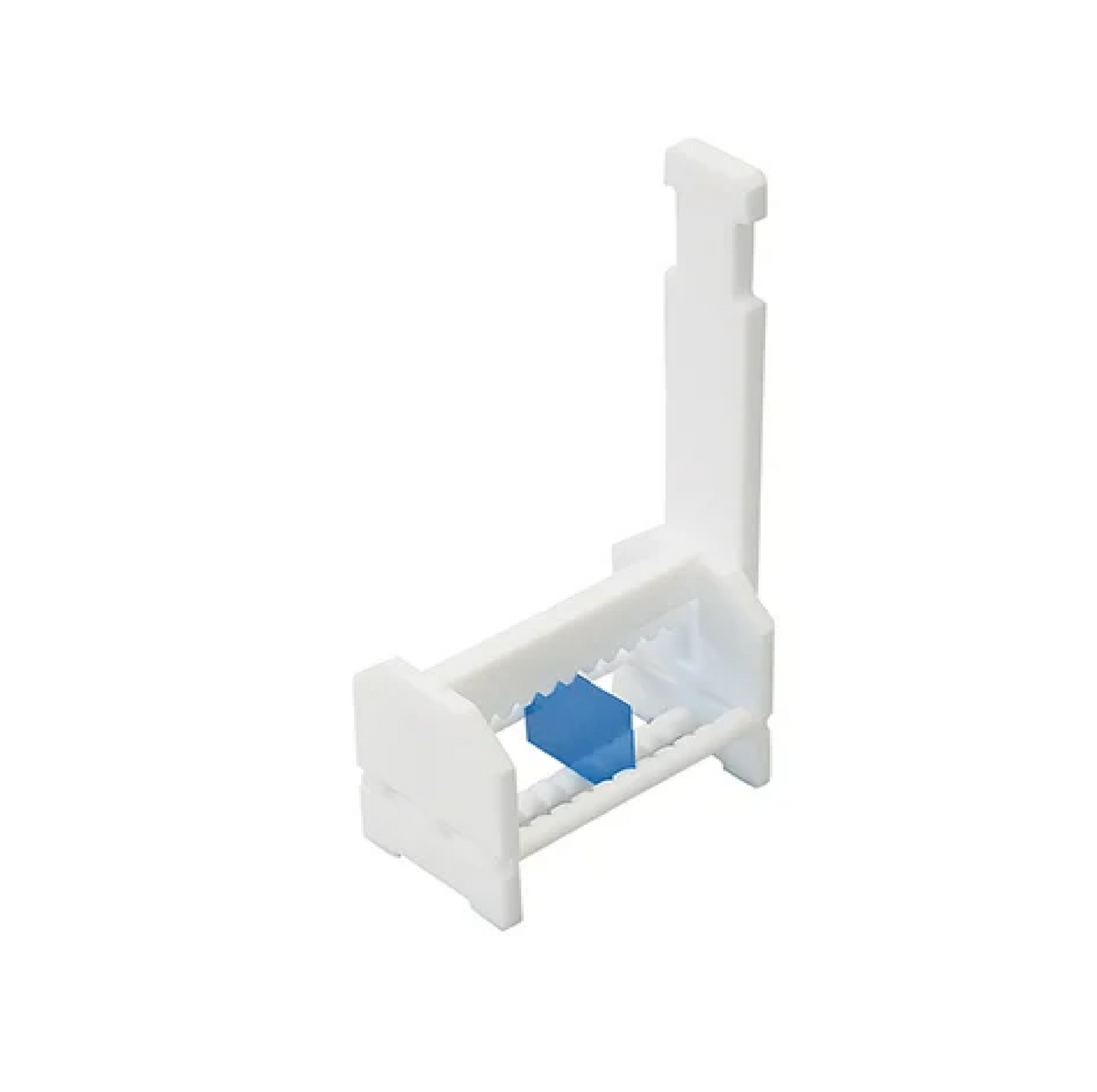

ASONE PTFE Floating Presser Substrate Cleaning Carrier
Buy AS ONE Corporation products from MSE Supplies at the best Value. Made in Japan.
Key Features
- Excellent Chemical Resistance: Suitable for cleaning wafers with acids, alkalis, and various chemical solvents.
- Ideal for Semiconductor Applications: Suitable for wafer cleaning and chemical processing in semiconductor research laboratories and materials science applications.
- Compact overall design: Ideal for small-scale wet processing applications using beakers and similar laboratory vessels.
- RoHS3 (EU)2015/863 Certificates can be issued
MSE Supplies offers a wide range of substrate cleaning carriers. Please contact us for more information.
|
SKU |
Type |
Carrier Size/Overall Height (mm) |
Body/Handle Material |
Mesh Material |
Screw Material |
Compatible Workpiece Size (mm) |
Suitable Workpiece Thickness (mm) |
Workpiece Capacity |
|---|---|---|---|---|---|---|---|---|
|
|
Floating presser type |
40 x 71 x 55/150 |
PTFE |
ETFE |
PTFE |
5 x5 to 30 x 30 |
0.2 to 20 |
10 pieces |
|
|
Floating presser type |
40 x 71 x 55/150 |
PTFE |
ETFE |
PTFE |
10 x 10 to 30 x 30 |
0.2 to 20 |
10 pieces |
|
3-7625-17
|
Floating presser type |
65 x 41 x 68/155 |
PTFE |
ETFE |
PTFE |
20 x 20 to 40 x 40 |
0.2 to 20 |
5 pieces |
|
3-7625-18
|
Floating presser type |
65 x 66 x 68/155 mm |
PTFE |
ETFE |
PTFE |
20 x 20 to 40 x 40 |
0.2 to 20 |
10 pieces |
|
3-7625-19
|
Floating presser type |
125 x 66 x 128/211 |
PTFE |
ETFE |
PTFE |
70 x 70 to 100 x 100 |
0.2 to 20 |
10 pieces |
