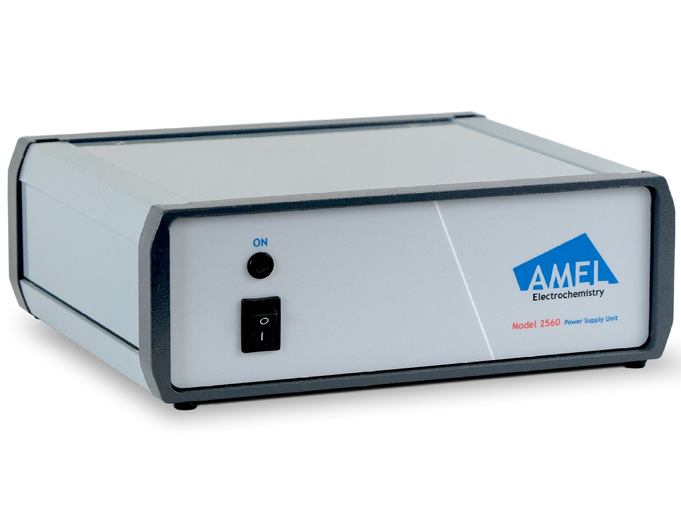

AMEL 8-Channels Power Source for Multipotentiostat, Model 2560
SKU: AMEL-2560
AMEL 8-Channels Power Source for Multipotentiostat, Model 2560
MSE Supplies is the exclusive distributor of AMEL electrochemistry instruments in the U.S., offering direct access to their cutting-edge solutions.
General Description
Model 2560 has been designed to be an 8-channels power supply able to turn Model 2559 and Model 2700 into an highly versatile multipotentiostat. It can power up to 8 units in parallel.
Technical Specifications
| Output | |
| Number of outputs | 8 |
| Voltage | 24V DC |
| Channel current | 1A |
| Total current | 6.5A |
| Input | |
| Voltage Mains | 100 to 240V AC, 50/60Hz |
| Power Consumption | 175VA max |
| Dimension and Weight | |
| Dimensions (L x W x H) | 200 x 215 x 80mm |
| Weight | 1.5kg |
Spare Parts
| 191/GPC | Grid power cable |
| 191/SH | Short 24V power cable |
| 191/LO | Long 24V power cable |
AMEL also provides customized electrodes tailored to specific experimental needs. Please contact us for more information.
We cannot sell AMEL Products to customers outside US and Canada.
