AHN myLab® CLC-01 Clinical Centrifuges
Description
The AHN myLab® CLC-01 Clinical Centrifuge is designed for precise and efficient sample processing in clinical and diagnostic laboratories. Operating at a maximum speed of 4000 RPM, it ensures reliable blood separation and other routine centrifugation applications. Its advanced digital controls allow for precise speed adjustments in increments of 10 RPM, providing flexibility for various protocols. The built-in imbalance detection system enhances operational safety, while the user-friendly interface with programmable memory settings allows for convenient workflow optimization.
Product Information
Usage – Suitable for molecular biology, genomics, proteomics, diagnostics, and forensic laboratories.
Multiple Rotor and Tube Options – Compatible with various rotor configurations:

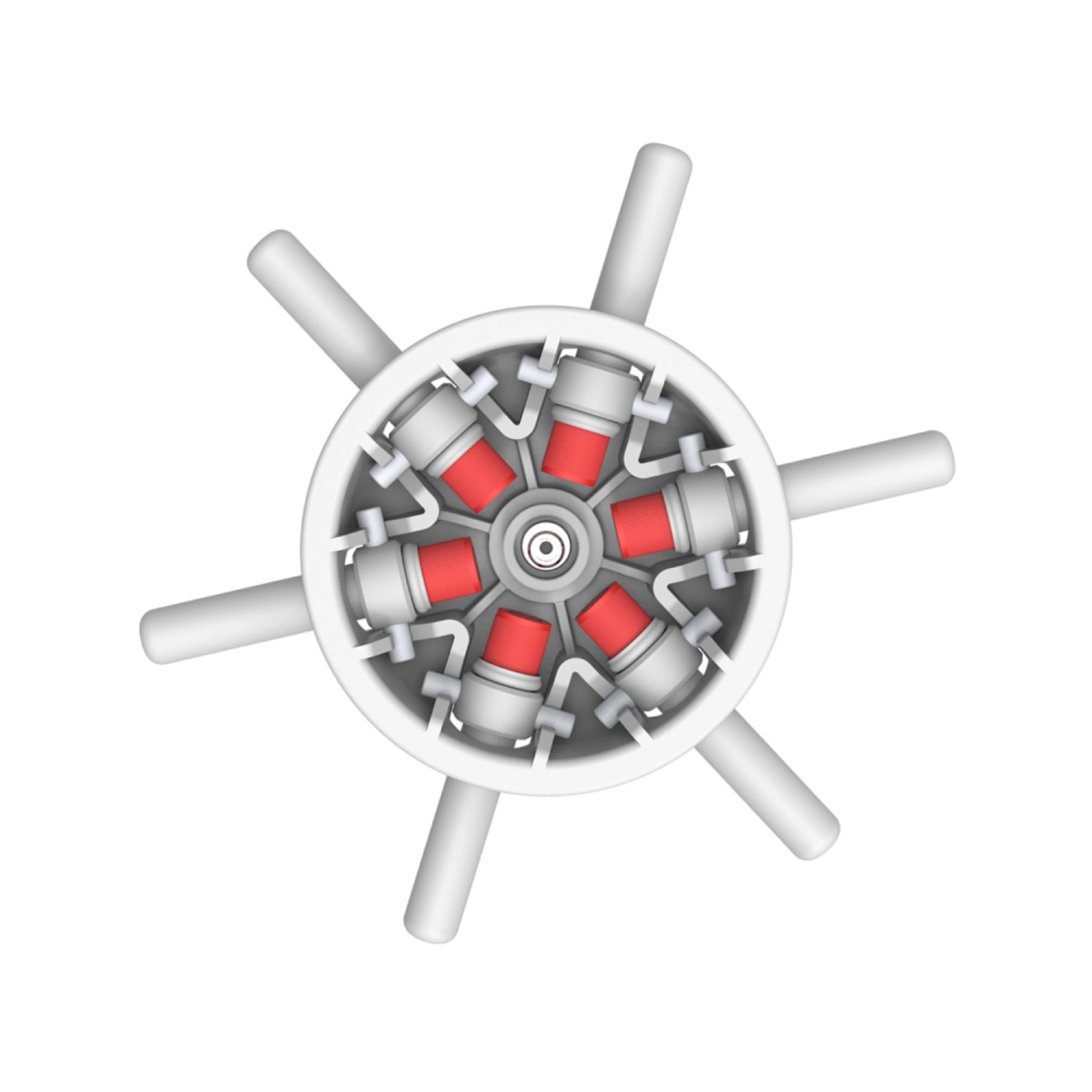

- 6 × 10 mL (swing-out rotor)

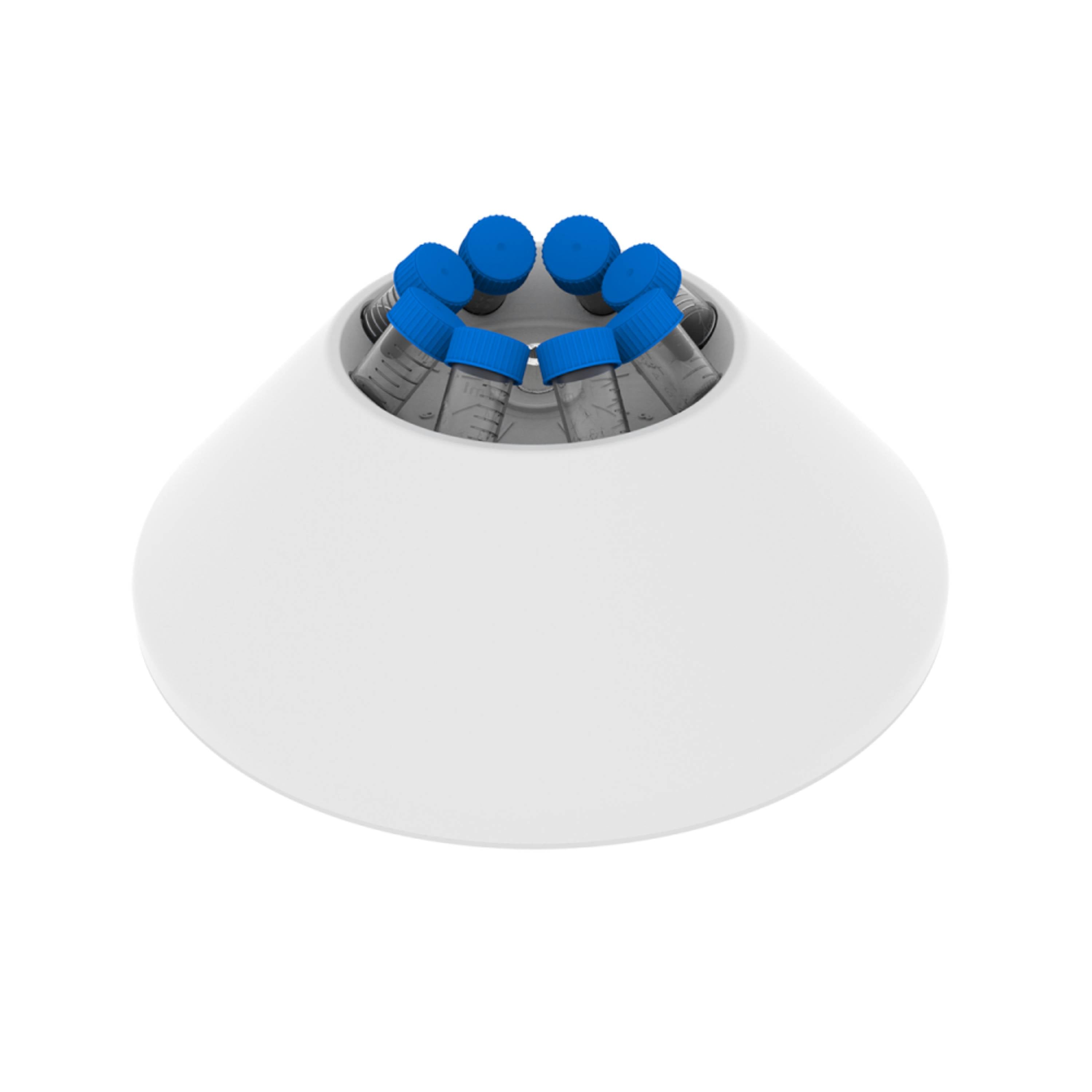

- 8 × 15 mL (fixed-angle rotor)
- 16 × 10 mL (fixed-angle rotor)
- Includes appropriate tube adaptors, sleeves, and spacers for 10 mL, 9 mL, 8 mL, 6 mL, 4 mL, 3 mL, and 2 mL tubes.
Maximum Speed – Operates up to 4000 RPM / 2270 × g, varying per rotor. Speed range adjustable from 500 to 4000 RPM.
Precise Operation – Speed increments of 10 RPM, starting from 500 RPM, for accurate centrifugation.
Memory Feature – Can store up to 99 user-defined programs (protocols) for efficient workflow management.
Increased User Safety & Comfort – Features an automatic safety brake system to prevent lid opening during operation and an imbalance detection system for added security.
Robust Design – Brushless DC motor ensures maintenance-free, long-lasting operation, making it ideal for extended runs.
Comfortable Use – Last-run memory function, user-friendly interface for speed and time settings, and a quick spin feature for rapid sample processing.
Specifications
| Specification | Details |
| Display | Large, easy-to-read digital display |
| Motor Type | Brushless DC motor |
| Memory feature | Can save up to 99 user defined programs |
| Rotor capacity | 6 x 10ml (swing out rotor) / 8 x 15ml & 16 x 10ml (fixed angle rotor), with each rotor the appropriate tube adaptors, sleeves, spacers are included – 10,9,8,6,4,3,2ml |
| Imbalance Detection | Yes, auto cut off |
| Speed Range | 500 to 4000 RPM |
| Speed Accuracy | ± 10 RPM |
| Timer Setting | 1-999 minutes / infinite mode |
| Dimensions (WxDxH) | 381x480x185 mm |
| Weight | 8.2 kg (without rotor) |
Download Flyer
Download Manual
Watch Video
MSE Supplies is an authorized distributor of AHN Biotechnologie. Please contact us for more information.
