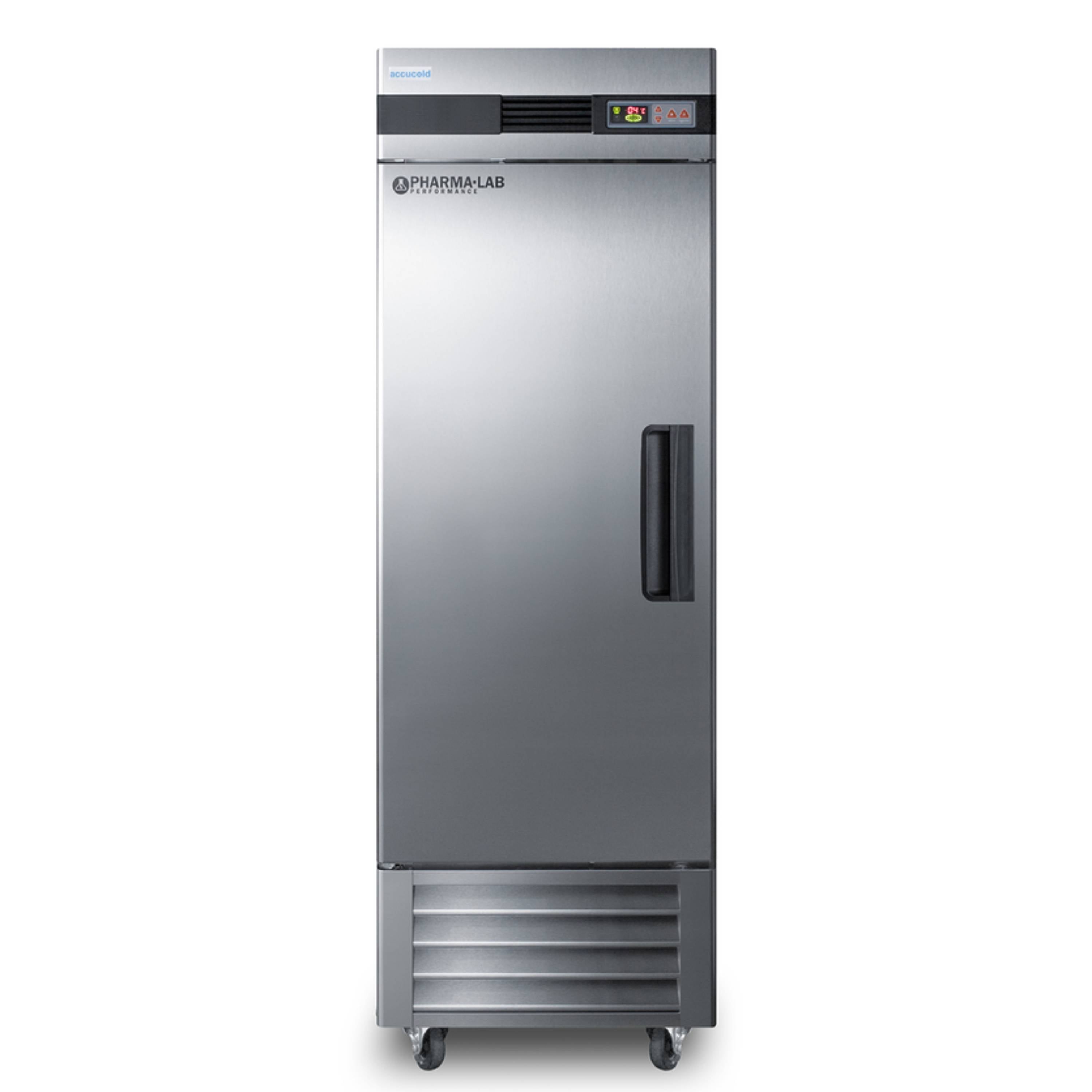

Accucold 23 Cu.Ft. Med-Lab Reach-In Refrigerator, Solid Door
Designed and Purpose built to meet demanding needs of life science, vaccine, laboratory and medical cold storage applications
Description
Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.
The ARS23ML and ARS23MLLH is a 23 cu.ft. all-refrigerator with an adjustable control range from +2 to +10ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

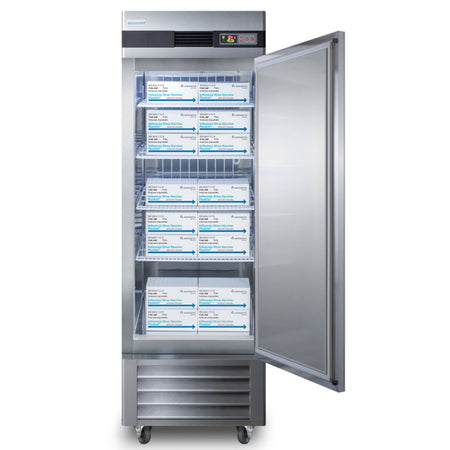

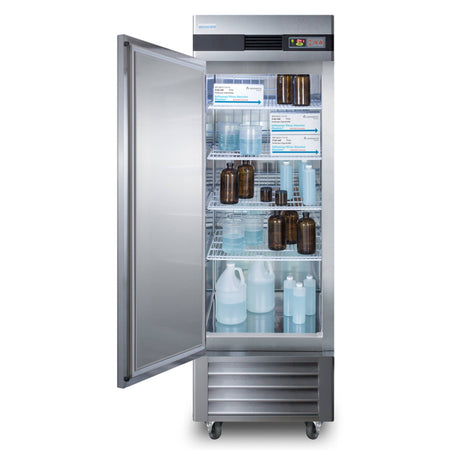

Inside, the ARS23ML and ARS23MLLH utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.
The ARS23ML and ARS23MLLH features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading.
Designed with hydrocarbon refrigerant, the ARS23ML and ARS23MLLH provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching frost-free freezer, see the ARF23ML. A glass door refrigerator version is also available (model ARG23ML).
NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
Features
|
Purpose-built design Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines |
Interior light Energy efficient LED lighting with internal on/off switch |
|
Adjustable temperature Intuitive controls let you adjust the interior temperature between +2 to +8ºC |
Large capacity 23 cubic feet of storage space inside |
|
Temperature alarm Visual and audible alarms alert if the interior temperature rises or falls out of set range |
Sealed back Space-saving design that ensures easier cleanup |
|
Complete stainless-steel construction Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup |
Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance |
|
Forced air cooling Top-mounted commercial fan ensures rapid temperature recovery |
Condenser cleaning alarm In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months |
|
Automatic defrost with adjustable cycle defrost Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup |
Matching freezer Pair with AFS23ML for a matching set in complete stainless steel |
|
Self-closing door Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading |
Extended warranty 2 years parts and labor/5 years compressor |
|
Open door alarm Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes |
Commercially approved Commercial construction meeting UL commercial listing standards |
|
Commercial grade casters Ships with a set of casters (2 locking) for easy mobility as needed |
Eco-Friendly Using environmentally friendly hydrocarbons refrigerants for a greener footprint |
|
Microprocessor control panel Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management |
Additional choices Glass door version (model ARG23ML) available for pharmacy, medical, laboratory, and additional applications |
|
Min/max display Control panel provides a readout of the low and high temperatures in 15 minute increments |
100% CFC free Environmentally friendly design without ozone-damaging chemicals |
|
Factory-installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included) |
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations |
|
Adjustable plastic-coated wire shelves for improved circulation Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items |
|
Specifications
Overview
|
Nominal Height |
84.0" (213 cm) |
|
Height of Cabinet |
83.75" (213 cm) |
|
Nominal Width |
28.0" (71 cm) |
|
Width |
27.5" (70 cm) |
|
Nominal Depth |
31.0" (79 cm) |
|
Depth |
31.0" (79 cm) |
|
Depth with Handle |
32.75" (83 cm) |
|
Depth with door at 90° |
56.5" (144 cm) |
|
Capacity |
23.0 cu.ft. (651 L) |
|
Defrost Type |
Automatic |
|
Door |
Stainless Steel |
|
Cabinet |
Stainless Steel |
|
US Electrical Safety |
UL |
|
Canadian Electrical Safety |
ULC |
|
Sanitation |
ETL-S |
|
Amps |
7.5 |
|
Voltage/Frequency |
115 V AC/60 Hz |
|
Weight |
282.0 lbs. (128 kg) |
|
Parts & Labor Warranty |
2 Years |
|
Compressor Warranty |
5 Years |
|
UPC |
761101062297, 761101066752 |
Refrigerator Features
|
Door Swing |
RHD / LHD |
|
Reversible |
No |
|
Shelf Type |
Wire |
|
Shelf Qty |
4 |
|
Adjustable Shelves |
Yes |
|
Thermostat Type |
Digital |
|
Fan Type |
Interior |
|
Refrigerant Type |
R290 |
|
Refrigerant Amount |
2.5oz. |
|
High Side PSI |
290 |
|
Low Side PSI |
155 |
|
Wheel Qty |
4 |
|
Interior Light |
Yes |
|
Temperature Range |
2 to 10ºC |
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
