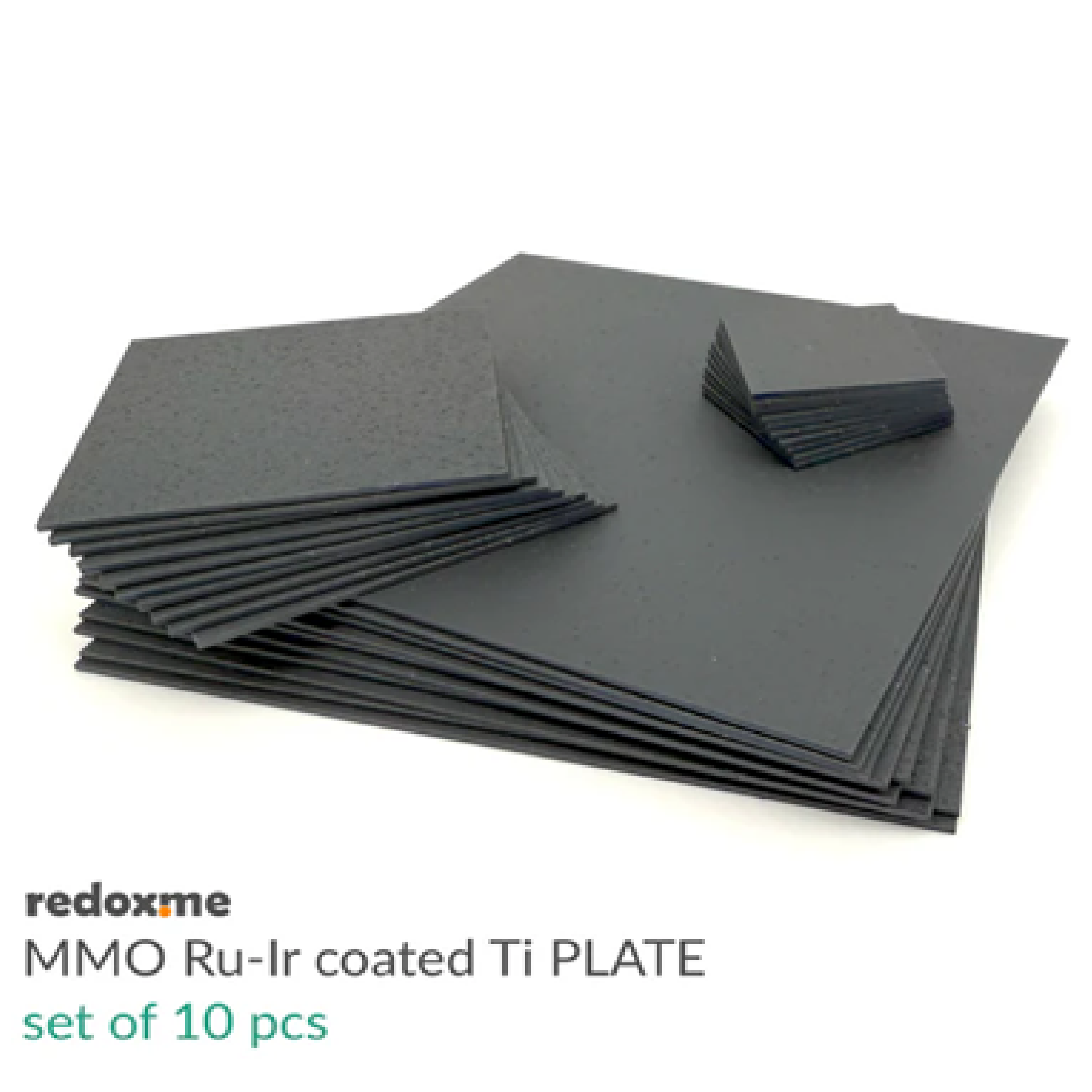

50mm x 50mm Mixed Metal Oxide Ruthenium-Iridium Coated Titanium Plate - Set of 10 pcs
Couldn't load pickup availability
Still have questions? Ask our experts!
50mm x 50mm Mixed Metal Oxide Ruthenium-Iridium Coated Titanium Plate - Set of 10 pcs
Buy Redox.me products from MSE Supplies at the best value.
Introduction
Mixed Metal Oxide (MMO) Ruthenium-Iridium (Ru-Ir) coated titanium electrodes stand out due to their exceptional durability, outstanding conductivity, and stability in harsh environments. These characteristics make them crucial for a variety of industrial applications that demand high-performance electrochemical reactions. Our MMO coating offers low electrical resistance, ensuring high current efficiency and low overpotentials during electrochemical reactions. This is especially important in applications that require high performance, such as water splitting and electrochemical synthesis. The Ru-Ir coated titanium electrodes are stable over a wide range of voltages and can perform well in both acidic and alkaline environments. Ruthenium and iridium are both excellent catalysts for various electrochemical reactions, including oxygen evolution and hydrogen evolution reactions. This makes these electrodes very effective in applications like electrolysis.
This product is sold in a quantity of 10 pieces. Customization is possible, and electrodes can be made in any size, shape, and thickness. Contact us if you are interested.
Application note
MMO Ru-Ir coated titanium electrodes are widely used in electrochemical processes, including: a) water electrolysis for hydrogen production - the electrodes' high stability and catalytic properties make them ideal for both the oxygen evolution reaction (OER) and the hydrogen evolution reaction (HER), b) chlor-alkali technology, where they facilitate the electrochemical production of chlorine and sodium hydroxide from brine, c) electrochemical sensors for monitoring various chemical reactions in both industrial and environmental applications, d) supercapacitors, where their excellent conductivity and corrosion resistance are essential for long-term performance, and, e) treatment of wastewater, particularly in processes like electrocoagulation and electrooxidation, where they help break down contaminants in the water.
Specification
| Specification | Details |
|---|---|
| Titanium Grade | TA1 |
| Plate Thickness | 1 mm |
| Deposition Method | Thermal decomposition |
| Titanium Pre-treatment | Sandblasting |
| Coating Ratio (Ru/Ir) | 8:2 |
| Coating Thickness | 10 μm (assumed correction from mm) |
| Noble Metal Coating | 10 g/m² |
| Maximum Current Density | 2000 A/m² |
| Typical Operational Current Density | 300 A/m² |
| Electrode Size | 50×50 mm |
| pH Range | 1–14 |
| Maximum Fluoride Ion Content | < 1 ppm |
material composition (EDS)
O: 26.74 Wt%, 58.43 At%
Ir: 4.58 Wt%, 0.83 At%
Ru: 17.41 Wt%, 6.02 At%
Sn: 6.22 Wt%, 1.83 At%
Ti: 45.04 Wt%, 32.88 At%
matrix: ZAF correction
MSE offers a range of electrodes. Please contact us for more information.
