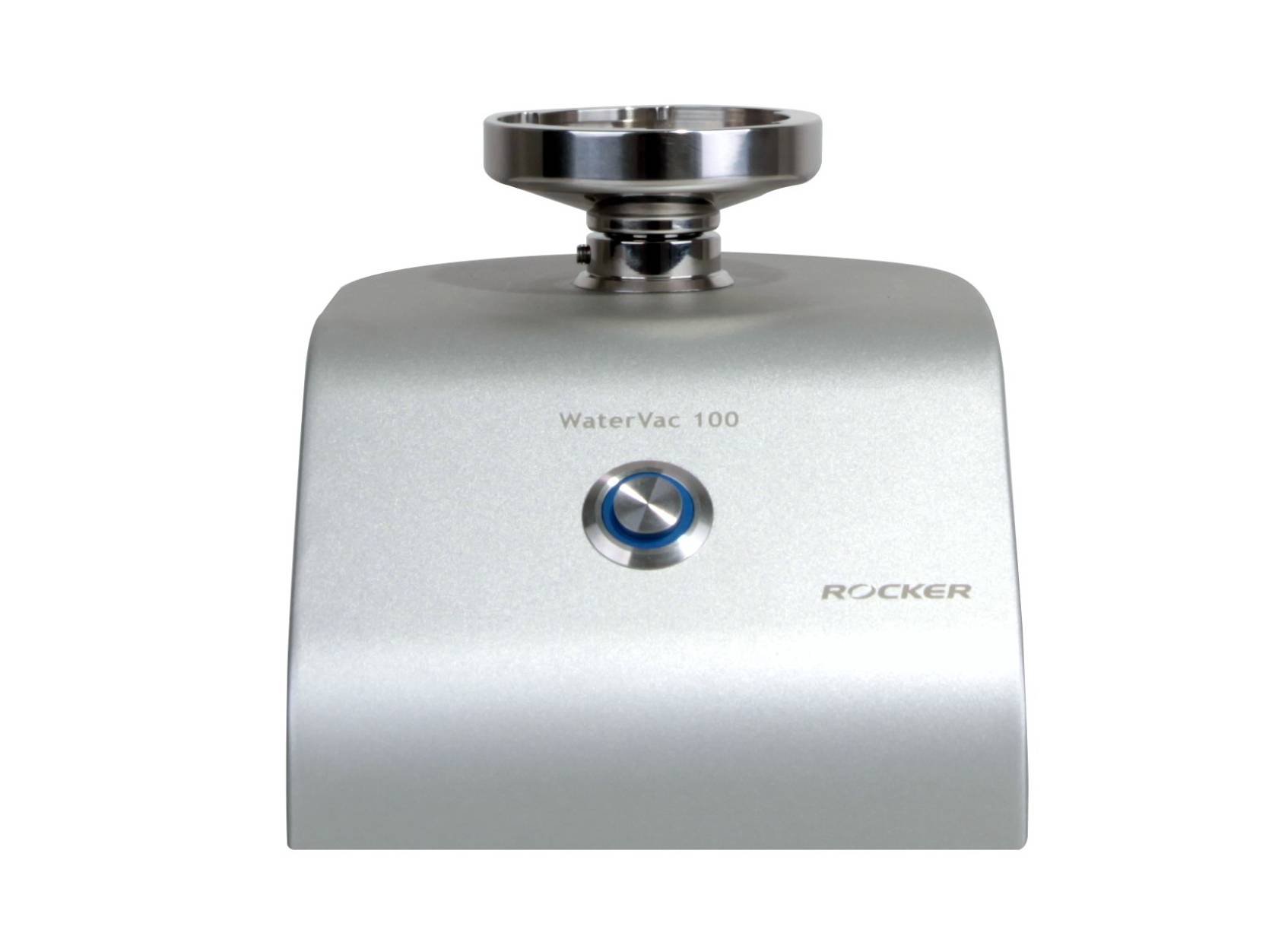

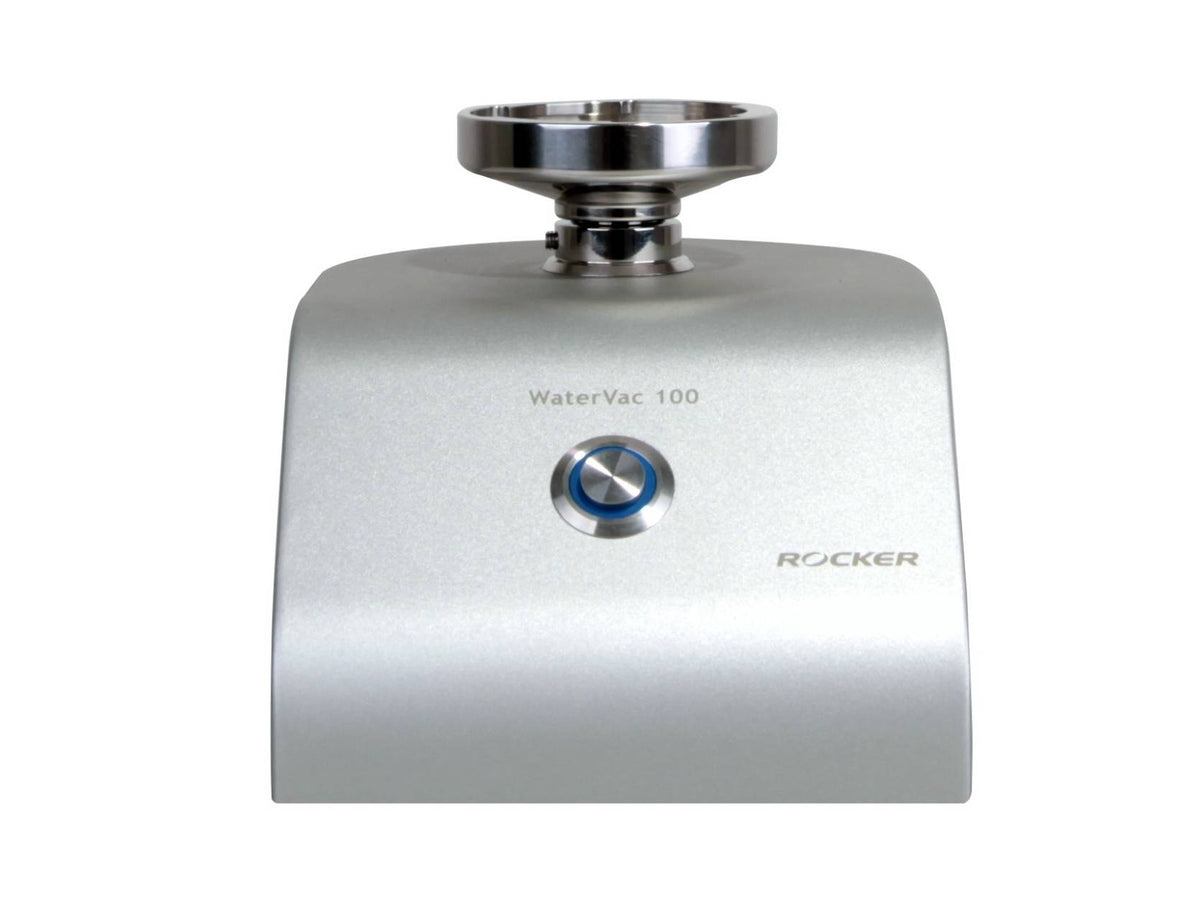

Witeg Vacuum Filtration System WaterVac 100 -540mmg With Integrated Vacuum Pump
SKU: 00829 190110-02
Witeg Vacuum Filtration System WaterVac 100 -540mmg With Integrated Vacuum Pump
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Microbiological filtration technique for analyzing aqueous-based fluids for microbiological contamination
- Suspended solid test for municipal, surface, ground and drinking water
- General filtration without the need of collecting filtrate
Features:
- -540 mmHg
- Up to 0,5 l/min (liquid) or 2,2 l/min (air)
- Integrated vacuum pump
- Compact design - ideal for work benches or laminar flow hoods
- No special suction flask or waste bottle is needed

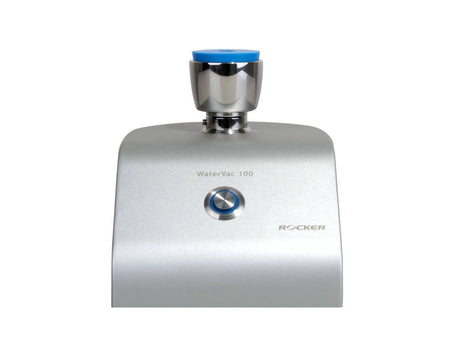

- Available with spin-lock or stopper design
- One push-button for easy operation
- Silicone tube (2m) for waste drain included
Technical data
|
Version |
with spin-lock |
|
Length (outer) |
170 mm |
|
Diameter (outer) |
Filter: Ø47 mm / 50 mm |
|
Ideal for |
Microbiological filtration technique for analysing aqueous-based fluids for microbiological contamination, suspended solid test for municipal, surface, ground and drinking water, general filtration without the need of collection filtrate |
|
Weight |
1.16 kg |
|
Width (Outer) |
120 mm
|
|
Height (outer) |
96 mm |
|
Material |
Housing: SUS 304; valve plate: EPDM; diaphragm: EPDM; inlet / outlet port: SUS 316; O-ring: FKM; tube: silicone |
|
Connections |
EU-plug |
|
Vacuum range |
max. -540 mmHg |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Diameter (outer) | Material | Ideal for | Connections | Weight | Vacuum range |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 00829 190110-02 | MultiVac 100 spin-lock | with spin-lock | 120 mm | 170 mm | 96 mm | Filter: Ø47 mm / 50 mm | Housing: SUS 304; valve plate: EPDM; diaphragm: EPDM; inlet / outlet port: SUS 316; O-ring: FKM; tube: silicone | Microbiological filtration technique for analysing aqueous-based fluids for microbiological contamination, suspended solid test for municipal, surface, ground and drinking water, general filtration without the need of collection filtrate | EU-plug | 1.16 kg | max. -540 mmHg |
| 00829 190120-02 | MultiVac 100 spin-lock | with spin-lock | 120 mm | 170 mm | 96 mm | Filter: Ø47 mm / 50 mm | Housing: SUS 304; valve plate: EPDM; diaphragm: EPDM; inlet / outlet port: SUS 316; O-ring: FKM; tube: silicone | Microbiological filtration technique for analysing aqueous-based fluids for microbiological contamination, suspended solid test for municipal, surface, ground and drinking water, general filtration without the need of collection filtrate | EU-plug | 1.16 kg | max. -540 mmHg |
