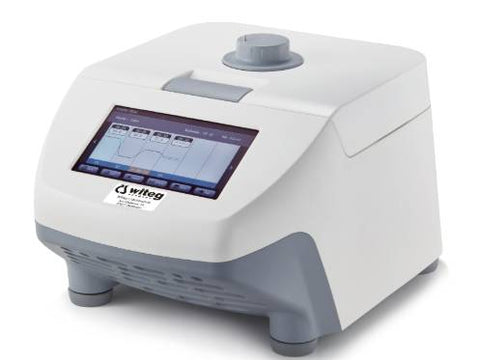

Witeg Thermal Cycler Wi-TC1000-G/-S, Heating Range 4°C - 105°C, Standard or Gradient
SKU: 6 000 500
Witeg Thermal Cycler Wi-TC1000-G/-S, Heating Range 4°C - 105°C, Standard or Gradient
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Molecular biology with applications such as sequencing, gene cloning, gene expression, mutagenesis
- Also, in areas such as drug discovery, agriculture, food industry, etc.
Features:
- High performance peltier and independent heating segments improving temperature control
- Auxiliary heating mechanism diminishes the “edge effect” and enhance the temperature uniformity
- Wide touchdown PCR temperature range (-9.9°C to +9.9°C) and long PCR time range (-9min 59s to +9min 59s)
- Gradient temperature setting optimizes temperature easily in the single run (Wi-TC1000-G only)
- 7" LCD-colortouch, 800 x 480, screen with user friendly interface helps to edit programs easliy

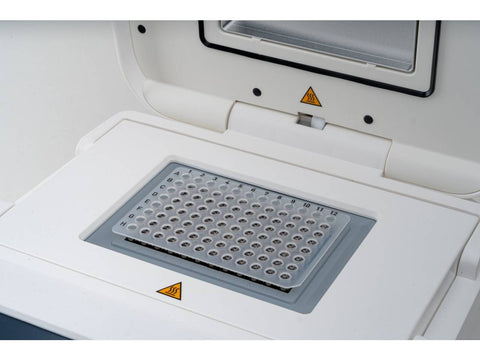

- Wide options of consumables: common PCR tubes, 8-well PCR strips and 96-well PCR plates can be used
- User defined file system: max. 30 segments with 99 cycles, max. 16 folder and16 files each folder
Safety mechanism:
- With power off protection, automatic program recovery
- Hot Iid auto-off function at 30°C - 110°C: lf module temperature is lower than 30°C, the hot Iid function will automatically tum off
Features
Essential laboratory instrument: The Wi-TC1000-G/-S is an essential laboratory instrument for Molecular Biology with applications such as sequencing, gene cloning, gene expression, mutagensis, and it is also used in areas such as drug discovery, agriculture, food industry, etc.
High precision and accuracy: Elegant design, excellent precision and accuracy, reproducible results and precise PCR optimization.
State-of-the-art device: High performance with advanced thermal gradient technology, state-of-the-art electronics, precision peltier device and flexible user Interface.
Technical data
|
Version |
gradient, gradient temperature setting range: 30°C - 99°C, Gradient range: 1°C - 42°C |
|
Length (outer) |
370 mm |
|
Material |
Adapter block material: aluminum |
|
Cooling time |
5°C/sec |
|
Capacity |
96 x 0.2 ml PCR tubes, 8 x 12 PCR plate or 96 well plate |
|
Temperature accuracy |
±0.1°C, at 55°C ±0.3°C |
|
Width (Outer) |
280 mm |
|
Height (outer) |
250 mm |
|
Power supply |
100V - 120V/200V - 240V, 50/60Hz |
|
Heating time |
5°C/sec |
|
Temperature range |
4°C - 105°C |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Material | Power supply |
| 6 000 500 | Wi-TC1000-G | gradient, gradient temperature setting range: 30°C - 99°C, Gradient range: 1°C - 42°C | 280 mm | 370 mm | 250 mm | Adapter block material: aluminum | 100V - 120V/200V - 240V, 50/60Hz |
| 6 000 600 | Wi-TC1000-S | gradient, gradient temperature setting range: 30°C - 99°C, Gradient range: 1°C - 42°C | 280 mm | 370 mm | 250 mm | Adapter block material: aluminum | 100V - 120V/200V - 240V, 50/60Hz |
| SKU | Cooling time | Heating time | Capacity | Temperature range | Temperature accuracy |
| 6 000 500 | 5°C/sec | 5°C/sec | 96 x 0.2 ml PCR tubes, 8 x 12 PCR plate or 96 well plate | 4°C - 105°C | ±0.1°C, at 55°C ±0.3°C |
| 6 000 600 | 5°C/sec | 5°C/sec | 96 x 0.2 ml PCR tubes, 8 x 12 PCR plate or 96 well plate | 4°C - 105°C | ±0.1°C, at 55°C ±0.3°C |
