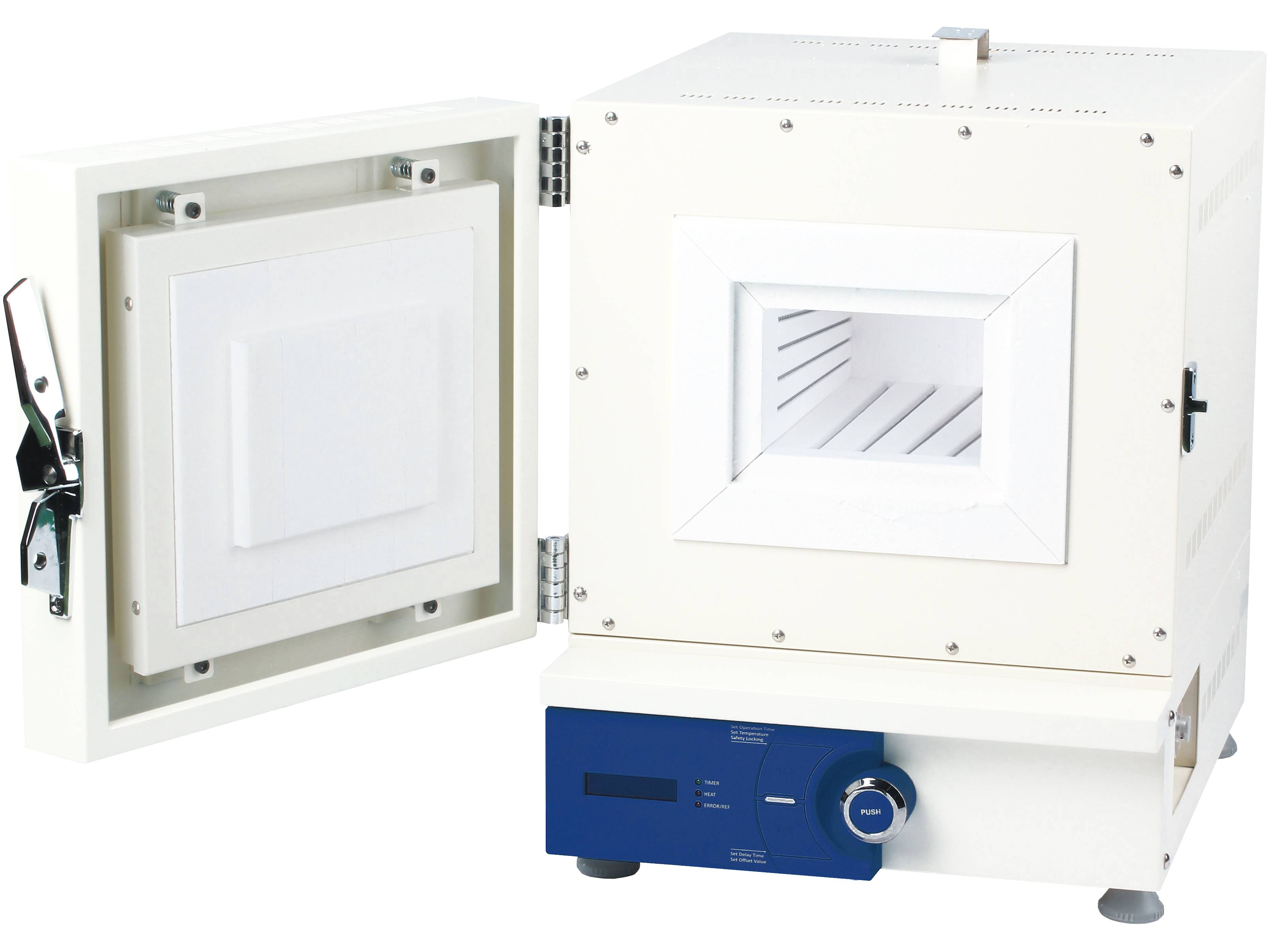

Witeg Muffel Furnace FP Muffel Furnace 3/4.5/12/14/27/63 Liter 1.000°C
SKU: DH.WF21.P03
Witeg Muffel Furnace FP Muffel Furnace 3/4.5/12/14/27/63 Liter 1.000°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Ash-determinations, enameling, fusions, precipitate drying
Features:
- User‘s self-compensation function for temperature (±50.0°C)
- Resolution: 1°C, 1 min

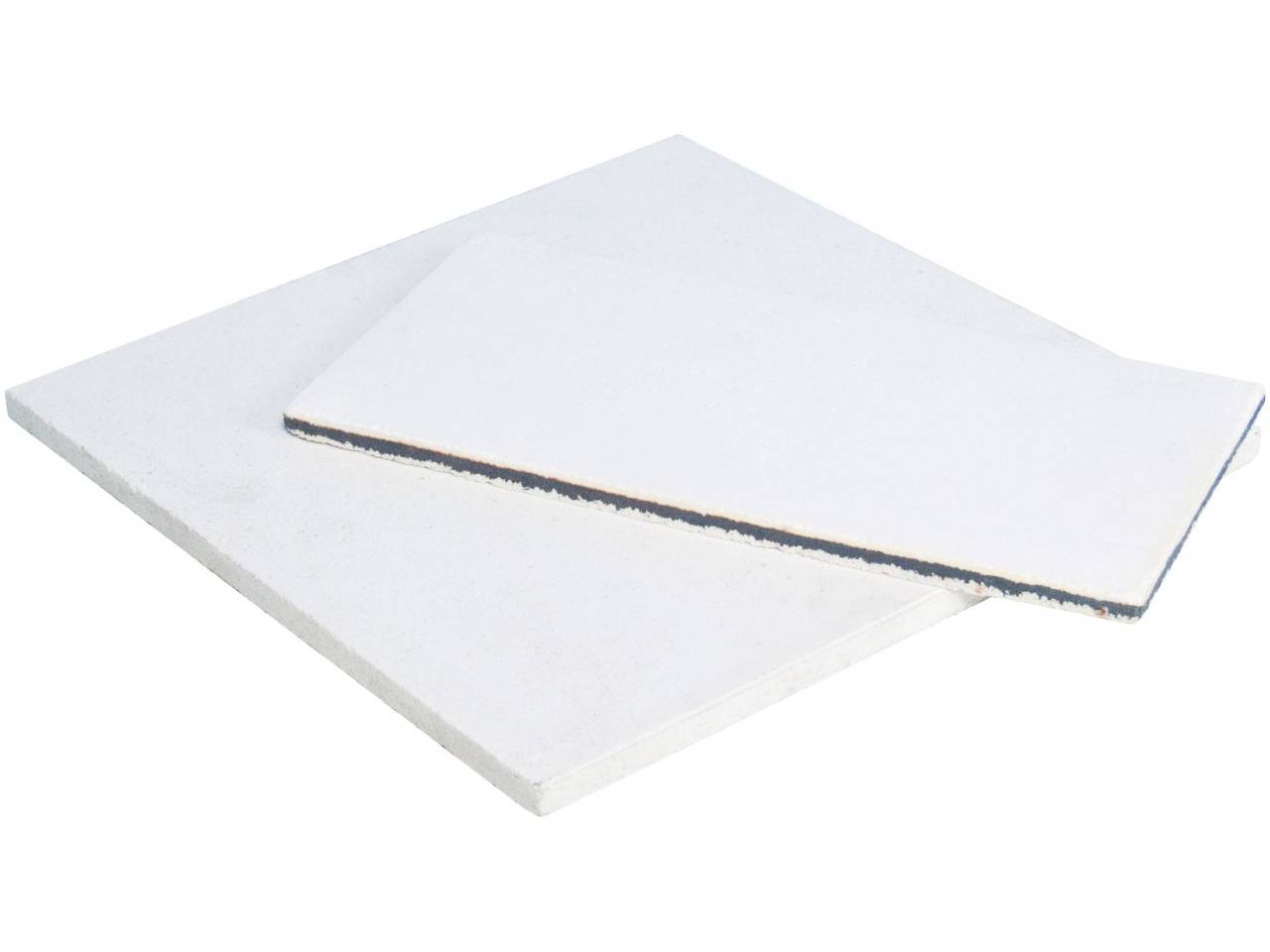

- Ceramic fibre plate included

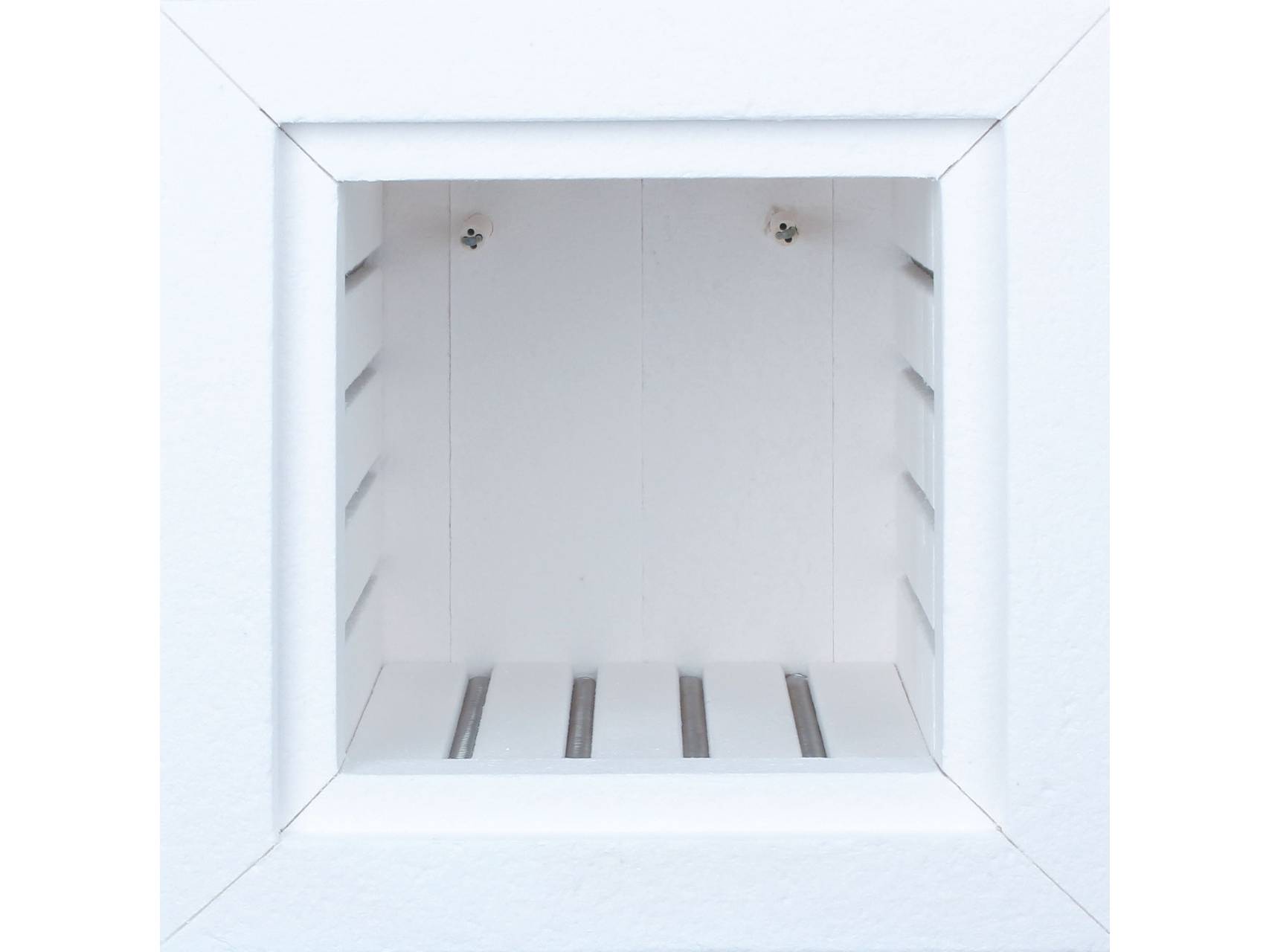

- Powder-coated steel body, ceramic fibre insulation, ceramic fibre exposed heating wire interior with 4-sided heating
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism:
- Safety switch for door opening
- Overheat and over-current protection
- Sensor error detection
Controller:

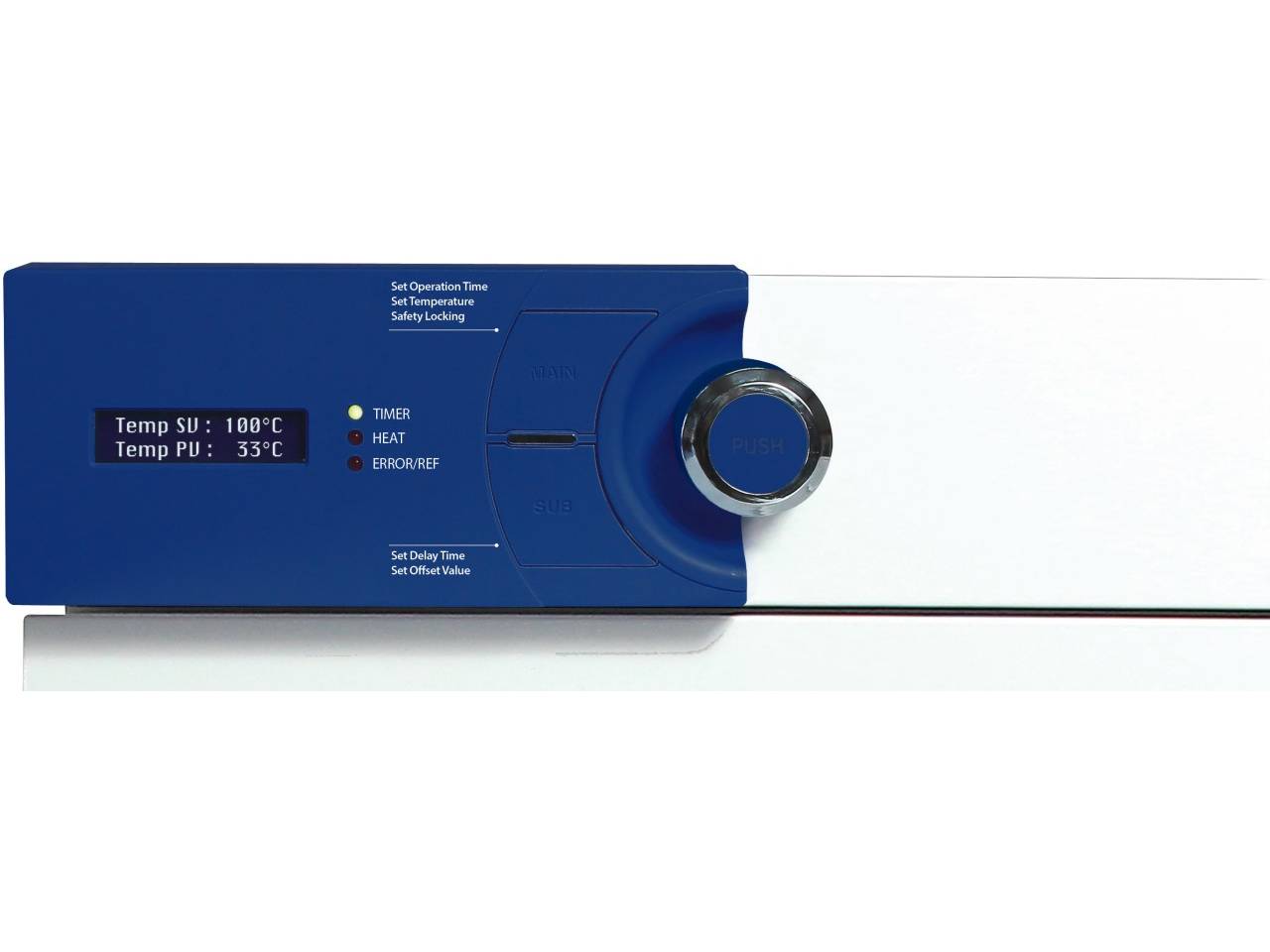

- Jog-Dial controller (PID) with 2-way knob (turn + push), digital LCD with backlight, and two durable setting buttons
- Programmable: 4 patterns with 10 segments
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
|
Width (inner) |
130 mm |
|
Height (inner) |
90 mm |
|
Length (outer) |
480 mm |
|
Ideal for |
Ash-determinations, enameling, fusions, precipitate drying |
|
Weight with packaging |
47 kg |
|
Capacity |
3 l |
|
Thermocouple |
K-type thermocouple |
|
Accessories |
Heater: Kanthal A1, expose wire heating elements, 4-side heating |
|
Length (inner) |
250 mm |
|
Width (Outer) |
410 mm |
|
Height (outer) |
530 mm |
|
Heating time |
16 min. to 800°C |
|
Heating power |
1400 W |
|
Temperature range |
300°C - 1000°C |
|
Packing size |
630 x 540 x 770 mm |
Comparison
| SKU | Model | Version | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Ideal for |
| DH.WF21.P03 | FP-03 230 V | 130 mm | 250 mm | 90 mm | 410 mm | 480 mm | 530 mm | Ash-determinations, enameling, fusions, precipitate drying | |
| DH.WF21.P05 | FP-05 230 V | 150 mm | 300 mm | 100 mm | 440 mm | 530 mm | 550 mm | Ash-determinations, enameling, fusions, precipitate drying | |
| DH.WF23.P12 | FP-12 3 Phase | 200 mm | 300 mm | 200 mm | 500 mm | 550 mm | 660 mm | Ash-determinations, enameling, fusions, precipitate drying | |
| DH.WF23.P14 | FP-14 3 Phase | 250 mm | 350 mm | 160 mm | 550 mm | 580 mm | 620 mm | Ash-determinations, enameling, fusions, precipitate drying | |
| DH.WF23.P27 | FP-27 3 Phase | 300 mm | 300 mm | 300 mm | 600 mm | 590 mm | 760 mm | Ash-determinations, enameling, fusions, precipitate drying | |
| DH.WF23.P63 | FP-63 3 Phase | 400 mm | 400 mm | 400 mm | 1000 mm | 730 mm | 920 mm | Ash-determinations, enameling, fusions, precipitate drying |
| SKU | Weight with packaging | Heating power | Capacity | Temperature range | Thermocouple | Packing size | Accessories | Heating time |
| DH.WF21.P03 | 47 kg | 1400 W | 3 l | 300°C - 1000°C | K-type thermocouple | 630 x 540 x 770 mm | Heater: Kanthal A1, expose wire heating elements, 4-side heating | 16 min. to 800°C |
| DH.WF21.P05 | 54 kg | 1800 W | 4.5 l | 300°C - 1000°C | K-type thermocouple | 680 x 570 x 780 mm | Heater: Kanthal A1, expose wire heating elements, 4-side heating | 16 min. to 800°C |
| DH.WF23.P12 | 59 kg | 3600 W | 12 l | 300°C - 1000°C | K-type thermocouple | 700 x 630 x 890 mm | Heater: Kanthal A1, expose wire heating elements, 4-side heating | 20 min. to 800°C |
| DH.WF23.P14 | 73 kg | 4000 W | 14 l | 300°C - 1000°C | K-type thermocouple | 740 x 680 x 850 mm | Heater: Kanthal A1, expose wire heating elements, 4-side heating | 20 min. to 800°C |
| DH.WF23.P27 | 83 kg | 4600 W | 27 l | 300°C - 1000°C | K-type thermocouple | 740 x 730 x 990 mm | Heater: Kanthal A1, expose wire heating elements, 4-side heating | 20 min. to 800°C |
| DH.WF23.P63 | 225 kg | 9000 W | 63 l | 300°C - 1000°C | K-type thermocouple | 1160 x 900 x 1100 mm | Heater: Kanthal A1, expose wire heating elements, 4-side heating | 23 min. to 800°C |
