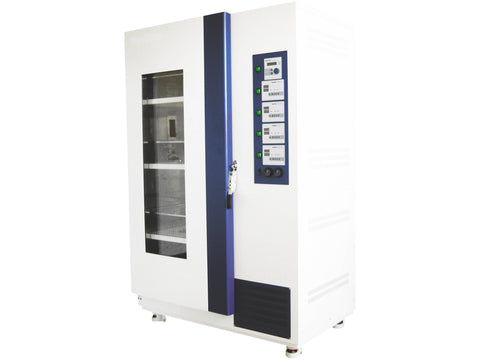

Witeg Incubators WIS-ML Shaking Incubator Multi-Stack Orbital Motion
SKU: DH.WIS03004
Witeg Incubators WIS-ML Shaking Incubator Multi-Stack Orbital Motion
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Multi-use and wide range of sample testing under various temperature
Features:
- Space saving design for large quantity samples with 2 or 4 independent shaking speed controller
- CFC free refrigerant (R-404A)
- Control of refrigerator for preventing compressor overload
- Advanced shaking mechanism provides quiet shaking and precise speed control

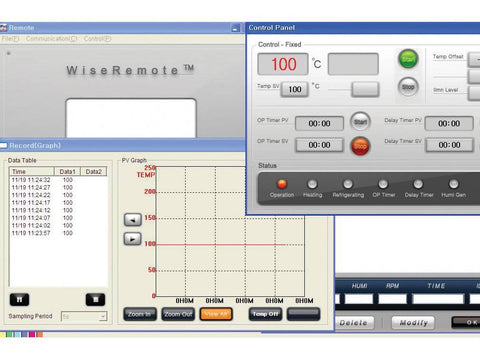

- RS232C interface for monitoring and controlling (WireRemote)
- Durable and flexible plastic flask holder (optional)
- Universal platforms included (2 or 4 according to model)
- Magnetic packing door with pair glass, stainless steel interior and powder-coated body
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism:
- Overheat and over-current protection
- Sensor error detection and leakage breaker
- Automatic operation stop when door opens
Controller:
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
| Width (inner) | 700 mm |
| Height (inner) | 1100 mm |
| Length (outer) | 850 mm |
| Weight with packaging | 397 kg |
| Capacity | 68 pcs. flask holder for 100 ml flasks (per platform), 36 pcs. flask holder for 250 ml flasks (per platform), 21 pcs. flask holder for 500 ml flasks (per platform), 16 pcs. flask holder for 1000 ml flasks (per platform) |
| Refrigerant | R-404A (CFC-free refrigerant) |
| Shaking speed | 30 - 250 rpm |
| Power consumption | 2400 W |
| Temperature range | 10°C - 60°C (refrigerated) |
| Packing size | 1500 x 1200 x 1750 mm |
| Controller | Temperature sensor PT100 |
| Length (inner) | 700 mm |
| Width (Outer) | 1290 mm |
| Height (outer) | 1445 mm |
| Heating power | 1500 W |
| Compressor | 370 W |
| Shaking motion | Orbital motion |
|
Shaking stroke
|
25 mm |
| Temperature variation | ±1.0°C at 37°C |
| Temperature accuracy | ±0.2°C to 37°C |
| Accessories | 2 stacks |
Comparison
| SKU | DH.WIS03004 | DH.WIS05002 |
| Model | WIS-ML04 3 Phase | WIS-ML02 230 V |
| Width (inner) | 700 mm | 700 mm |
| Length (inner) | 700 mm | 700 mm |
| Height (inner) | 1790 mm | 1100 mm |
| Width (Outer) | 1290 mm | 1290 mm |
| Length (outer) | 850 mm | 850 mm |
| Height (outer) | 2125 mm | 1445 mm |
| Weight with packaging | 555 kg | 397 kg |
| Heating power | 1800 W | 1500 W |
| Capacity | 68 pcs. flask holder for 100 ml flasks (per platform), 36 pcs. flask holder for 250 ml flasks (per platform), 21 pcs. flask holder for 500 ml flasks (per platform), 16 pcs. flask holder for 1000 ml flasks (per platform) | 68 pcs. flask holder for 100 ml flasks (per platform), 36 pcs. flask holder for 250 ml flasks (per platform), 21 pcs. flask holder for 500 ml flasks (per platform), 16 pcs. flask holder for 1000 ml flasks (per platform) |
| Compressor | 560 W | 370 W |
| Refrigerant | R-404A (CFC-free refrigerant) | R-404A (CFC-free refrigerant) |
| SKU | DH.WIS03004 | DH.WIS05002 |
| Shaking motion | Orbital motion | Orbital motion |
| Shaking speed | 30 - 250 rpm | 30 - 250 rpm |
| Shaking stroke | 25 mm | 25 mm |
| Power consumption | 3200 W | 2400 W |
| Temperature variation | ±1.0°C at 37°C | ±1.0°C at 37°C |
| Temperature range | 10°C - 60°C (refrigerated) | 10°C - 60°C (refrigerated) |
| Temperature accuracy | ±0.2°C to 37°C | ±0.2°C to 37°C |
| Packing size | 1500 x 1200 x 2350 mm | 1500 x 1200 x 1750 mm |
| Accessories | 4 stacks | 2 stacks |
| Controller | Temperature sensor PT100 | Temperature sensor PT100 |
