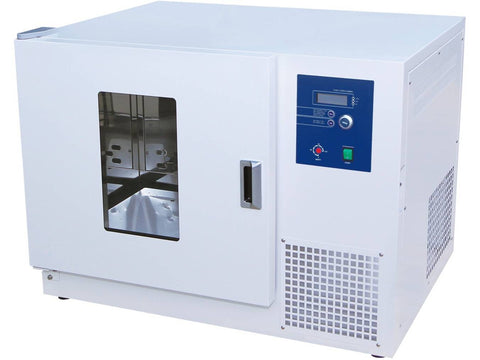

Witeg Incubators WIS-30 Shaking Incubator Front-Door Orbital Motion
SKU: DH.WIS00230
Witeg Incubators WIS-30 Shaking Incubator Front-Door Orbital Motion
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Biological cultures under various temperatures
Features:
- Front door and sliding platform provides easy loading and handling of samples

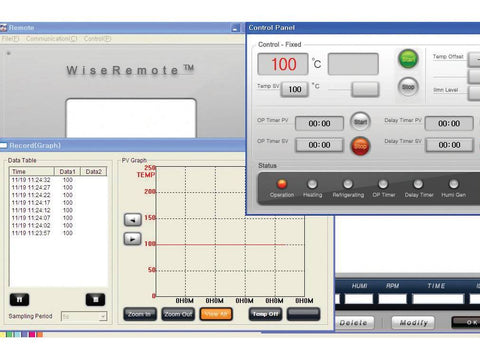

- RS232C interface for monitoring and controlling (WireRemote)
- Advanced shaking mechanism provides quiet shaking and precise speed control
- Stabilized orbital motion, minimum noise and no vibration
- Universal platform included
- Accommodates flasks up to 1000 ml
- Durable and flexible plastic flask holder (optional)
- Universal spring rack for various flask shapes/sizes (optional)
- Stainless steel interior and powder-coated body
- Backlight LCD display
- CE certified and unique serial number for tracing
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Safety mechanism:
- Overheat and over-current protection
- Leakage breaker
- Automatic operation stop when door opens

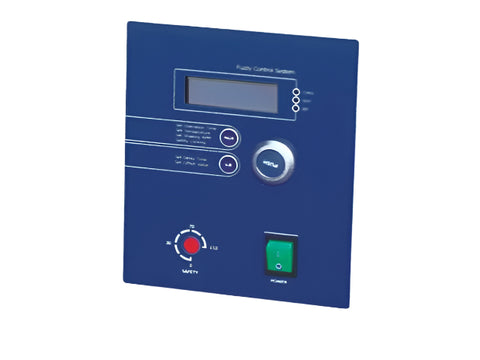

Controller:
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Technical data
| Width (inner) | 570 mm |
| Height (inner) | 470 mm |
| Length (outer) | 730 mm |
| Weight with packaging | 146 kg |
| Capacity | 35 pcs. flask holder for 100 ml flasks, 16 pcs. flask holder for 250 ml flasks, 12 pcs. flask holder for 500 ml flasks, 9 pcs. flask holder for 1000 ml flasks |
| Shaking speed | 30 - 250 rpm |
| Power consumption | 600 W |
| Temperature range | Room temperature +5°C - 60°C |
| Packing size | 1050 x 900 x 900 mm |
| Length (inner) | 465 mm |
| Width (Outer) | 916 mm |
| Height (outer) | 683 mm |
| Heating power | 600 W |
| Shaking motion | Orbital motion |
| Shaking stroke | 25 mm |
| Temperature variation | ±0.5°C at 37°C |
| Temperature accuracy | ±0.2°C to 37°C |
| Controller | Temperature sensor PT100 |
Comparison
| SKU | Model | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Weight with packaging | Heating power | Capacity | Compressor |
| DH.WIS00230 | WIS-30 230 V | 570 mm | 465 mm | 470 mm | 916 mm | 730 mm | 683 mm | 146 kg | 600 W | 35 pcs. flask holder for 100 ml flasks, 16 pcs. flask holder for 250 ml flasks, 12 pcs. flask holder for 500 ml flasks, 9 pcs. flask holder for 1000 ml flasks | |
| DH.WIS01230 | WIS-30R 230 V | 570 mm | 465 mm | 470 mm | 916 mm | 730 mm | 683 mm | 156 kg | 800 W | 35 pcs. flask holder for 100 ml flasks, 16 pcs. flask holder for 250 ml flasks, 12 pcs. flask holder for 500 ml flasks, 9 pcs. flask holder for 1000 ml flasks | 190 W |
| SKU | Refrigerant | Shaking motion | Shaking speed | Shaking stroke | Power consumption | Temperature variation | Temperature range | Temperature accuracy | Packing size | Controller |
| DH.WIS00230 | Orbital motion | 30 - 250 rpm | 25 mm | 600 W | ±0.5°C at 37°C | Room temperature +5°C - 60°C | ±0.2°C to 37°C | 1050 x 900 x 900 mm | Temperature sensor PT100 | |
| DH.WIS01230 | 134A (CFC-free refrigerant) | Orbital motion | 30 - 250 rpm | 25 mm | 1300 W | ±0.5°C at 37°C | 10°C - 60°C (refrigerated) | ±0.2°C to 37°C | 1050 x 900 x 900 mm | Temperature sensor PT100 |
