Witeg Heating Mantles WHM Multi-Place (Beaker or Flasks)
SKU: DH.WHM12291
Witeg Heating Mantles WHM Multi-Place (Beaker or Flasks)
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Repetitive extraction (Kjeldahl, Soxhlet and other extraction procedures), laboratory reflux and distillation applications#
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features:
- Nickel chrome heating element
- Coil type: acid-resistant, long life time
- Highly processed aluminium case offers robust standing, easy handling and usability on the magnetic stirrer
- Lower profile for space-saving convenience
- Three support rods and two hooks included
- CE certified and unique serial number for tracing
Versions:

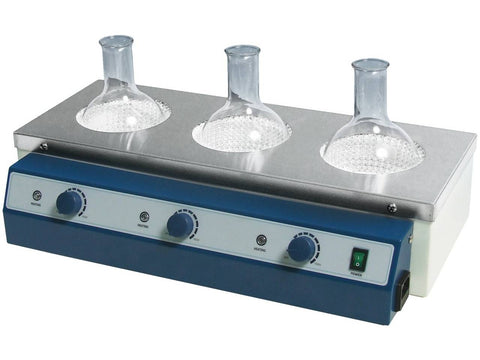

- 3-places heating mantle (round bottom)

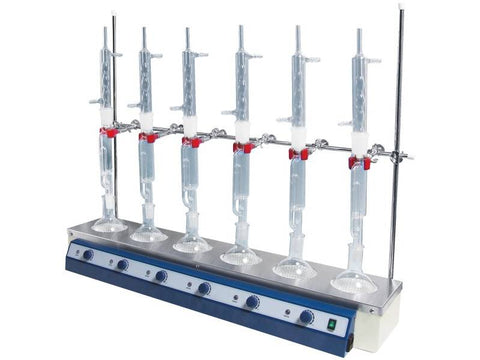

- 6-places heating mantle for flasks and beakers (round or flat bottom)
Technical data
| Version | 6 places |
| Width (Outer) | 800 mm |
| Height (outer) | 110 mm |
| Controller | individual controller for each place |
| Vessel capacity | 250 ml / 300 ml |
| Temperature range | 100°C - 450°C |
| Height (inner) | 50 mm |
| Length (outer) | 240 mm |
| Form | flat |
| Vessel diameter | Ø83 - 86 mm |
| Power consumption | 840 W |
Comparison
| SKU | Model | Version | Height (inner) | Width (Outer) | Length (outer) | Height (outer) |
| DH.WHM12393 | WHM 230 V, 3 places | 3 places | 75 mm | 690 mm | 340 mm | 170 mm |
| DH.WHM12391 | WHM 230 V, 3 places | 3 places | 65 mm | 550 mm | 270 mm | 130 mm |
| DH.WHM12295 | WHM 230 V, 6 places | 6 places | 65 mm | 950 mm | 270 mm | 130 mm |
| DH.WHM12293 | WHM 230 V, 6 places | 6 places | 50 mm | 800 mm | 240 mm | 110 mm |
| DH.WHM12291 | WHM 230 V, 6 places | 6 places | 50 mm | 800 mm | 240 mm | 110 mm |
| SKU | Form | Controller | Vessel diameter | Vessel capacity | Power consumption | Temperature range |
| DH.WHM12393 | round | individual controller for each place | Ø130 - 131 mm | 1000 ml | 1050 W | 100°C - 450°C |
| DH.WHM12391 | round | individual controller for each place | Ø102 - 105 mm | 500 ml | 720 W | 100°C - 450°C |
| DH.WHM12295 | round | individual controller for each place | Ø102 - 105 mm | 500 ml | 1440 W | 100°C - 450°C |
| DH.WHM12293 | round | individual controller for each place | Ø83 - 86 mm | 250 ml / 300 ml | 840 W | 100°C - 450°C |
| DH.WHM12291 | flat | individual controller for each place | Ø83 - 86 mm | 250 ml / 300 ml | 840 W | 100°C - 450°C |
