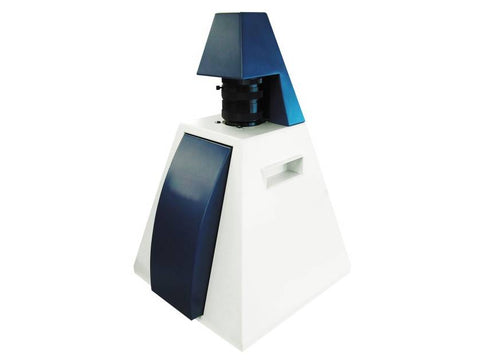

Witeg Gel Documentation System WGD20 Portable With Camera And Software
SKU: DH.WGD00020
Witeg Gel Documentation System WGD20 Portable With Camera And Software
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- DNA, RNA gel imaging capture and analysis
Features:
- The most cost-effective system
- High precise and large caliber optical lens with zoom, focus and iris control
- Digital CCD camera (resolution 1360x1024, 1.5 m pixel) with portable darkroom10-bit CCD, available for 8-bit grey level image capturing
- Very compact portable darkroom system for highest flexibility
- Existing transilluminator can be used
- USB 2.0 interface for real-time images and data transfer
- Power supply via USB
- WiseCapture II™ software: easy and fast view, capture and save gel images (included)
- TotalLab™ Quant software (WGD-20S): fully automatic, single button press complete image analysis in interesting area
- CE certified and unique serial number for tracing
Technical data
|
Width (Outer) |
260 mm |
|
Height (outer) |
430 mm |
|
Connections |
USB 2.0 |
|
Weight with packaging |
18 kg |
|
Packing size |
400 x 350 x 510 mm |
|
Length (outer) |
260 mm |
|
Ideal for |
DNA, RNA gel imaging capture and analysis |
|
Weight |
9 kg |
|
Temperature range |
Operation temperature -10°C to +50°C |
|
Controller |
1/2“ CCD |
Comparison
| SKU | Model | Width (Outer) | Length (outer) | Height (outer) | Ideal for | Connections | Weight | Weight with packaging | Temperature range | Packing size | Controller |
| DH.WGD00020 | WGD-20 | 260 mm | 260 mm | 430 mm | DNA, RNA gel imaging capture and analysis | USB 2.0 | 9 kg | 18 kg | Operation temperature -10°C to +50°C | 400 x 350 x 510 mm | 1/2“ CCD |
| DH.WGD00024 | WGD-20S | 260 mm | 260 mm | 430 mm | DNA, RNA gel imaging capture and analysis | USB 2.0 | 9 kg | 18 kg | Operation temperature -10°C to +50°C | 400 x 350 x 510 mm | 1/2“ CCD |
