Witeg Filter Holder LF30 / LF31 / LF3 / LF5 /LF3a / LF5a / MF3 / MF3a / MF5 / MF5a Made of PES Ø47mm
SKU: 00829 197000-01
Witeg Filter Holder LF30 / LF31 / LF3 / LF5 /LF3a / LF5a / MF3 / MF3a / MF5 / MF5a Made of PES Ø47mm
Buy Witeg products from MSE Supplies at the best value.
Description

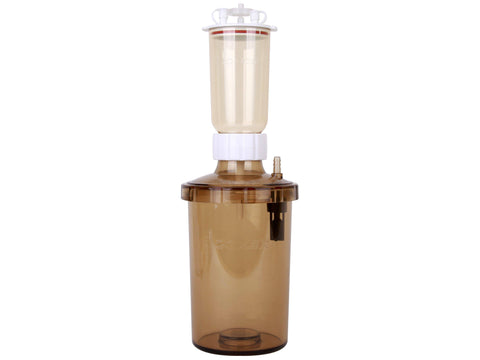

LF30 & LF31 Ø47mm
Features
- Spin-lock connection facilitates fast and stable installation without clamp
- Excellent smash and high temperature resistance
- Autoclavable
- Built-in overflow protection to keep the filtrate from overflowing when waste bottle is full
- Funnel graduated in 50ml, receiver in 100ml increments for easy measurement

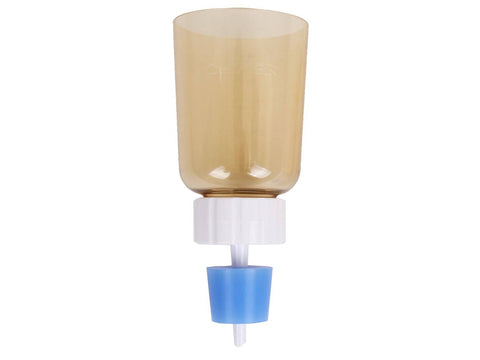

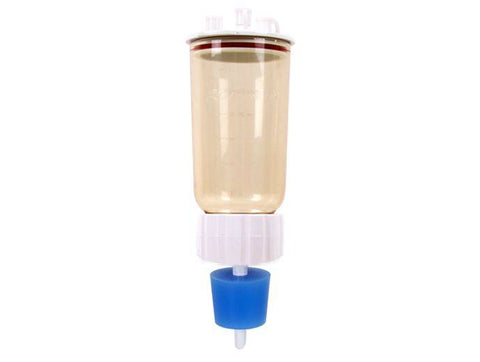

LF 3 / 5 & LF 3a / 5a Ø47mm
Features
- Spin-lock connection facilitates fast and stable installation without clamp
- PES structure offers excellent smash and high temperature resistance (up to 180°C)
- Autoclavable
- Reusable
- Funnel graduated in 50ml increments for easy measurement

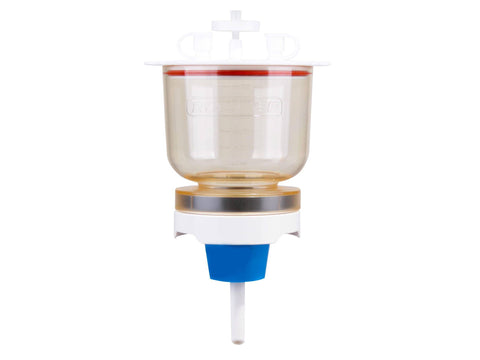

MF 3 / 5 & MF 3a / 5a Ø47mm
Features
- Magnetic connection facilitates fast and stable installation without clamp
- Strong magnetic seal allows one-handed operation, prevents possible twisting and tearing of the membrane
- Membrane guide on the base helps positioning membrane easily
- PES structure offers excellent smash and high temperature resistance (up to 180°C)
- Funnel graduated in 50ml increments for easy measurement
- Autoclavable
- Reusable
Technical data
| Version | without PC waste bottle with cover |
| Filter | 25 mm, 0.2 μm |
| Connections | Spin-lock connection |
| Stopper | No. 16 |
| Diameter (outer) | Filter: Ø47 mm |
| Material | Filter holder: PES; filter: PTFE; lid kit: PP, funnel: PES; support screen: PP; support base: PC; stopper: silicone |
| Capacity | Funnel: 300 ml |
Comparison
| SKU | Model | Version | Diameter (outer) | Filter | Thread | Material | Ideal for | Connections | Capacity | Stopper |
|---|---|---|---|---|---|---|---|---|---|---|
| 00829 197000-01 | LF 30 PES filtration set, filter holder | without PC waste bottle with cover | Filter: Ø47 mm | 25 mm, 0.2 μm | Filter holder: PES; filter: PTFE; lid kit: PP, funnel: PES; support screen: PP; support base: PC; stopper: silicone | Spin-lock connection | Funnel: 300 ml | No. 16 | ||
| 00829 197000-02 | LF 3a PES filter holder, complete | with lid kit | Filter: Ø47 mm | 25 mm, 0.2 μm | Bottle adapter: GL45 | Filter: PTFE; lid kit: PP, silicone; funnel: PES; support screen: PP | Spin-lock connection | Funnel: 300 ml | No. 16 | |
| 00829 197000-03 | LF 5 PES filter holder, complete | without lid kit | Filter: Ø47 mm | 25 mm, 0.2 μm | Filter: PTFE; funnel: PES; support screen: PP; support base: PC; stopper: silicone | Spin-lock connection | Funnel: 500 ml | No. 16 | ||
| 00829 197000-04 | LF 5a PES filter holder, complete | without lid kit | Filter: Ø47 mm | 25 mm, 0.2 μm | Bottle adapter: GL45 | Filter: PTFE; funnel: PES; support screen: PP | Spin-lock connection | Funnel: 500 ml | No. 16 | |
| 00829 197010-30 | LF 30 PES filtration set, complete | with PC waste bottle with cover | Filter: Ø47 mm | 25 mm, 0.2 μm | Filter holder: PES; filter: PTFE; lid kit: PP, funnel: PES; support screen: PP; support base: PC; stopper: silicone; cap: PP; cover: PC; waste bottle: PC | Spin-lock connection | Funnel: 300 ml, receiver flask: 1200 ml | No. 16 | ||
| 00829 197010-31 | LF 31 PES filtration set, complete | with receiver flask and fixing sucker | Filter: Ø47 mm | 25 mm, 0.2 μm | Filter holder: PES; filter: PTFE; lid kit: PP, funnel: PES; support screen: PP; support base: PC; stopper: silicone;receiver flask: borosilicate glass; fixing sucker: silicone | Spin-lock connection | Funnel: 300 ml, receiver flask: 1000 ml | No. 16 | ||
| 00829 200300-01 | MF3 | Filter holder with long stem | Filter: Ø47 mm | 25 mm, 0.2 μm | Lid kit: PP, funnel: PES; support base: PES, stopper: silicone | Can be used for WaterVac100 with stopper design | Spin-lock connection | Funnel: 300 ml | No. 8 | |
| 00829 200310-01 | MF 3a | Filter holder with short stem | Filter: Ø47 mm | 25 mm, 0.2 μm | Lid kit: PP, funnel: PES; support base: PP | Spin-lock connection | Funnel: 300 ml | No. 16 | ||
| 00829 200500-01 | MF5 | Filter holder with long stem | Filter: Ø47 mm | 25 mm, 0.2 μm | Lid kit: PP, funnel: PES; support base: PES, stopper: silicone | Can be used for WaterVac100 with stopper design | Spin-lock connection | Funnel: 500 ml | No. 8 | |
| 00829 200510-01 | MF 5a | Filter holder with short stem | Filter: Ø47 mm | 25 mm, 0.2 μm | Lid kit: PP, funnel: PES; support base: PP | Spin-lock connection | Funnel: 500 ml | No. 16 |
