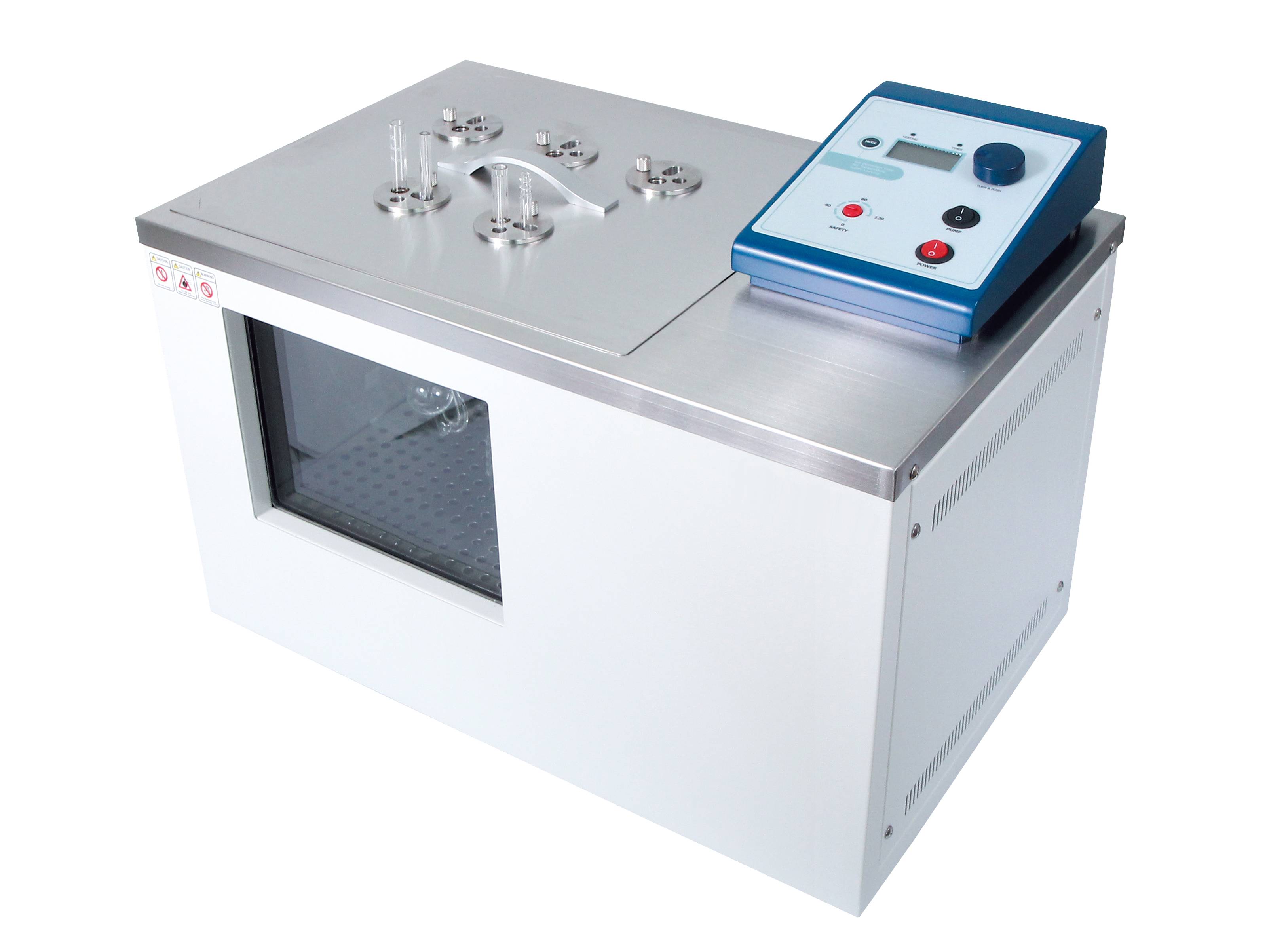

Witeg Baths WVB Viscosity Bath 100°C ±0,1°C
SKU: DH.WVB01030
Witeg Baths WVB Viscosity Bath 100°C ±0,1°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Precise measurement with capillary viscometers
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- Powerful circulation pump ensures highest temperature uniformity

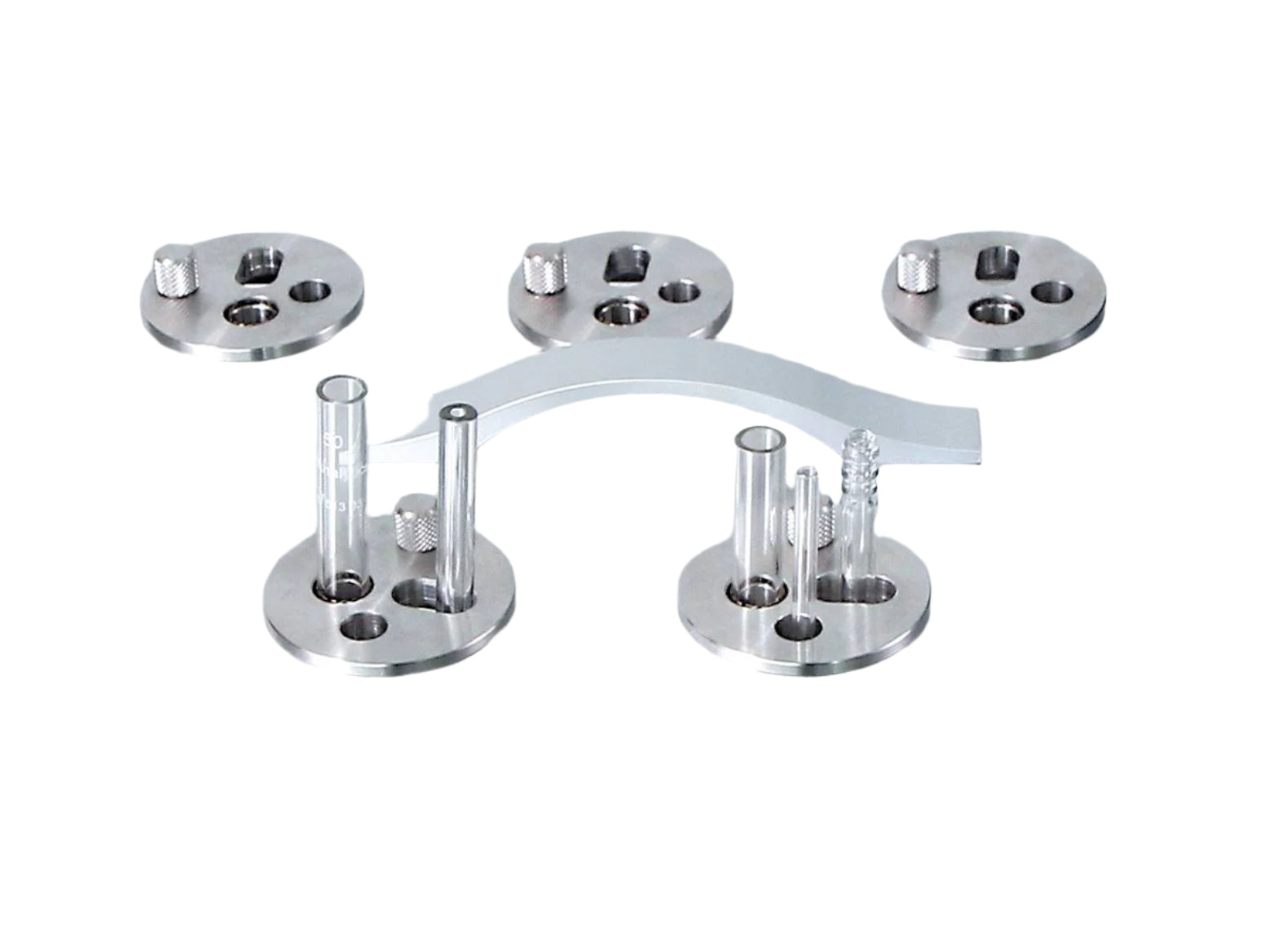

- Stainless steel interior and lid with 5 holes for viscometer holder, powder-coated steel body, vacuum sealed and tempered safety glasses window
- Storage function for the set values of temperature and timer
- Digital timer function (99hr 59min): delay time and operation time can be controlled
- User‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
- Drain valve mounted
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism
- Overheat and over-current protection sensor error detectionlocking mode
Controller
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Technical data
| Version | with viewing window 230 x 180 mm |
| Length (inner) | 300 mm |
| Width (Outer) | 585 mm |
| Height (outer) | 420 mm |
| Effective space | 330 x 300 x 260 mm |
| Power consumption | 2000 W |
| Temperature range | Room temperature +5°C - 100°C |
| Temperature accuracy | ±0.1°C |
| Controller | Temperature sensor PT100 |
| Width (inner) | 350 mm |
| Height (inner) | 300 mm |
| Length (outer) | 375 mm |
| Weight with packaging | 24 kg |
| Pump performance | 30 l/min, magnetic drive |
| Temperature control resolution | Display 0.1°C, control 0.1°C |
| Temperature fluctuation | ±0.2°C |
| Packing size | 640 x 450 x 500 mm |
| Flow rate | 30 l/Min |
