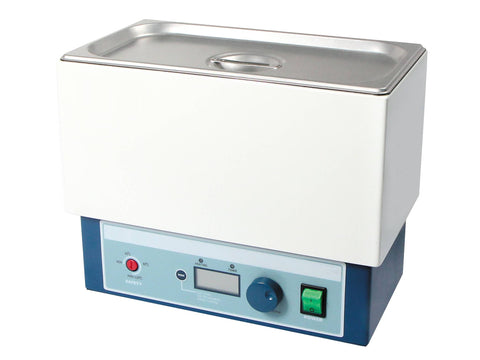

Witeg Baths WB Water Bath 6/11/22 Liter 100°C ±0,1°C
SKU: DH.WB000106
Witeg Baths WB Water Bath 6/11/22 Liter 100°C ±0,1°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Water bath for general purpose
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- User‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
- Stainless steel bath & lid for superior durability & high thermal efficiency / consistency, dome lid optional
- Digital timer function (99hr 59min): delay time and operation time can be controlled
- Storage function for the set values of temperature and timer
- Backlight LCD display
- CE-certified and unique serial number for tracing
Safety mechanism
- Locking mode
- Over- temperature and over-current protection
- Sensor error protection
Controller
- digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Technical data
| Width (inner) | 300 mm |
| Height (inner) | 150 mm |
| Length (outer) | 180 mm |
| Weight with packaging | 8 kg |
| Effective space | 300 x 155 x 110 mm |
| Temperature control resolution | Display 0.1°C, control 0.1°C |
| Temperature fluctuation | ±1.0°C |
| Packing size | 350 x 210 x 310 mm |
| Length (inner) | 155 mm |
| Width (Outer) | 325 mm |
| Height (outer) | 260 mm |
| Capacity | 6 l |
| Power consumption | 800 W |
| Temperature range | Room temperature +5°C - 100°C |
| Temperature accuracy | ±0.1°C |
| Controller | Temperature sensor PT100 |
Comparison
| SKU | Model | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Drain valve | Weight with packaging | Capacity | Effective space | Power consumption | Temperature control resolution | Temperature range | Temperature fluctuation | Temperature accuracy | Packing size | Controller |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WB000106 | WB-6 230 V | 300 mm | 155 mm | 150 mm | 325 mm | 180 mm | 260 mm | 8 kg | 6 l | 300 x 155 x 110 mm | 800 W | Display 0.1°C, control 0.1°C | Room temperature +5°C - 100°C | ±1.0°C | ±0.1°C | 350 x 210 x 310 mm | Temperature sensor PT100 | |
| DH.WB000111 | WB-11 230 V | 302 mm | 240 mm | 150 mm | 325 mm | 265 mm | 260 mm | 8 kg | 11 l | 302 x 240 x 110 mm | 1000 W | Display 0.1°C, control 0.1°C | Room temperature +5°C - 100°C | ±1.0°C | ±0.1°C | 350 x 300 x 310 mm | Temperature sensor PT100 | |
| DH.WB000122 | WB-22 230 V | 500 mm | 295 mm | 150 mm | 535 mm | 330 mm | 260 mm | mounted (Ø9.5 - 11mm) | 8 kg | 22 l | 500 x 295 x 110 mm | 2000 W | Display 0.1°C, control 0.1°C | Room temperature +5°C - 100°C | ±1.0°C | ±0.1°C | 570 x 360 x 310 mm | Temperature sensor PT100 |
