Titanium Working Disk Electrode 4mm Dia. - PEEK Body 6 mm dia., 70 mm long(Organic)

Titanium Working Disk Electrode 4mm Dia. - PEEK Body 6 mm dia., 70 mm long (Organic)

Buy Redox.me products from MSE Supplies at the best value.

Introduction

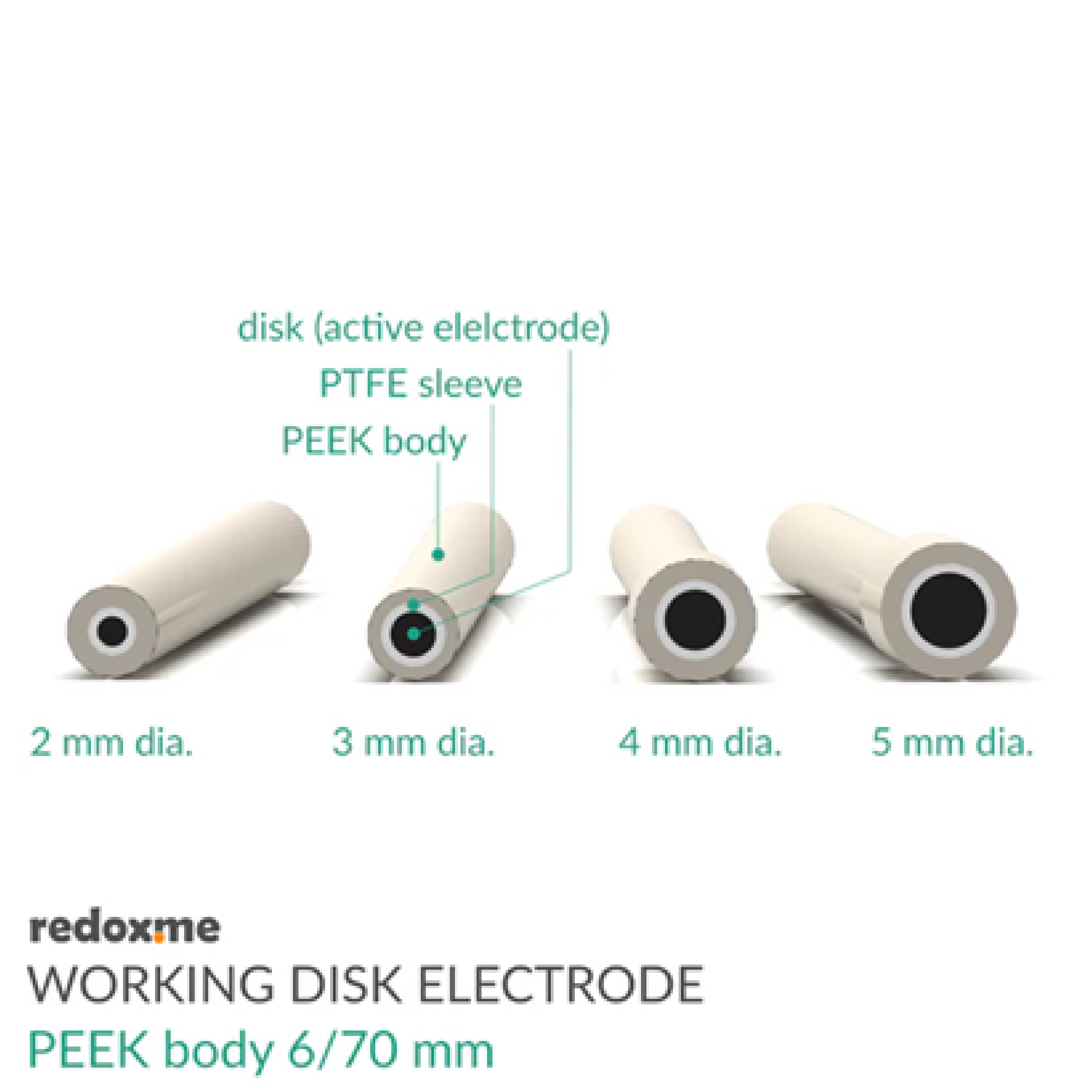

This is a Standard Working Electrode in which a disk of titanium electrode is embedded into the PEEK body by a compressed PTFE or PEEK sleeve. It well fits aqueous and organic solvent electrolyte requirements.

Application Note

The disk electrode is immersed in the ion-conducting solution as a working electrode. An electric current is passed between the working electrode and the counter electrode for a certain amount of time. After the experiment, the electrode should be washed several times with ethanol or isopropanol. If the disk electrode was used as a current collector with other electrode material, or when there are visible traces of material absorption, it should be polished down to the mirror surface after the experiment is completed. Store the working disk electrode in the glass tube sealed with an O-ring (all included in the package).

For maintenance, please use our electrode polishing kit.

Specification

*Actual product appearance might be different depending on electrodes.

Product Includes

1x working disk electrode
1x O-ring
1x glass tube

MSE offers a range of electrodes. Please contact us for more information.
