SO-LOW Explosion Proof-Manual Defrost Refrigerators

Model No.

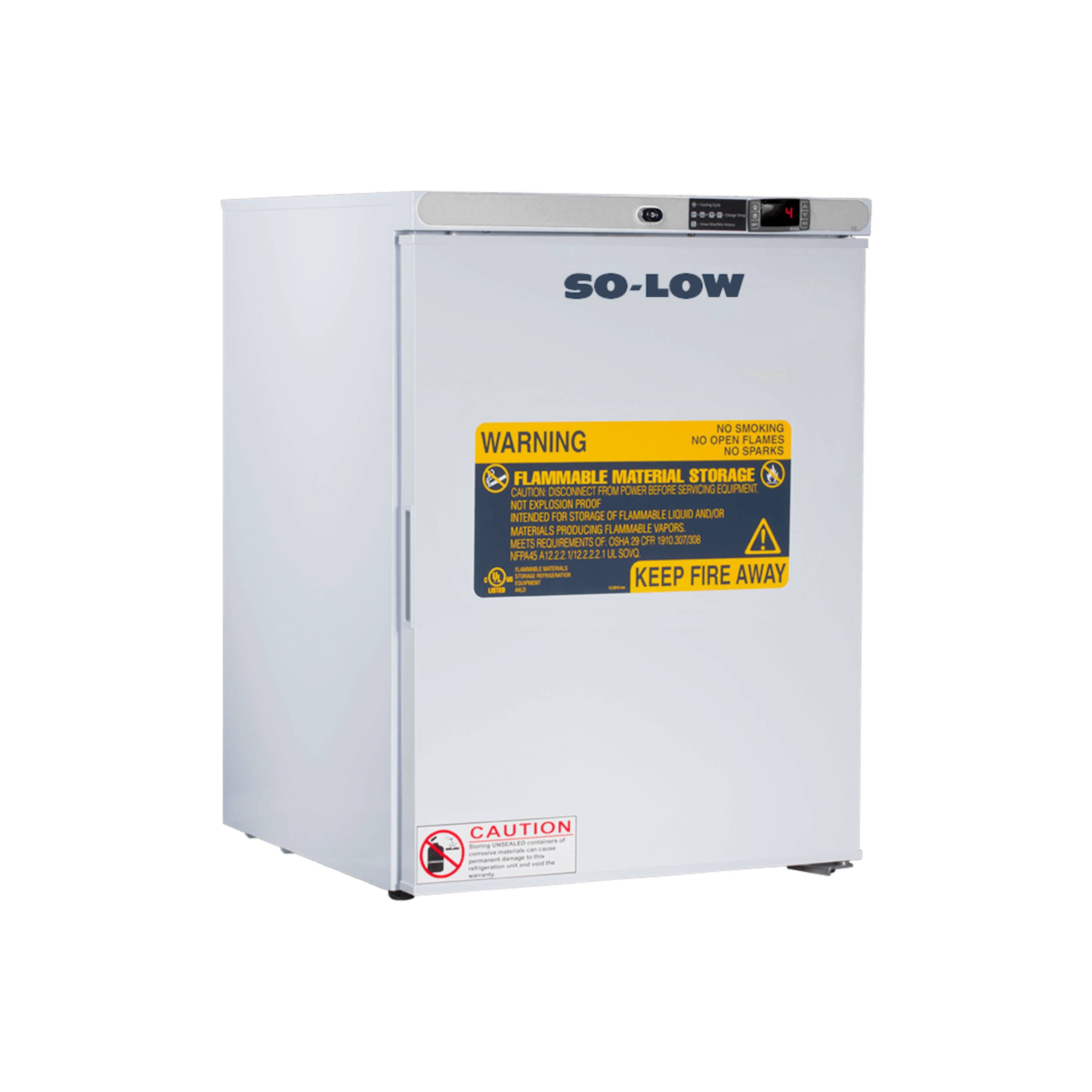

MV4-6UCXR

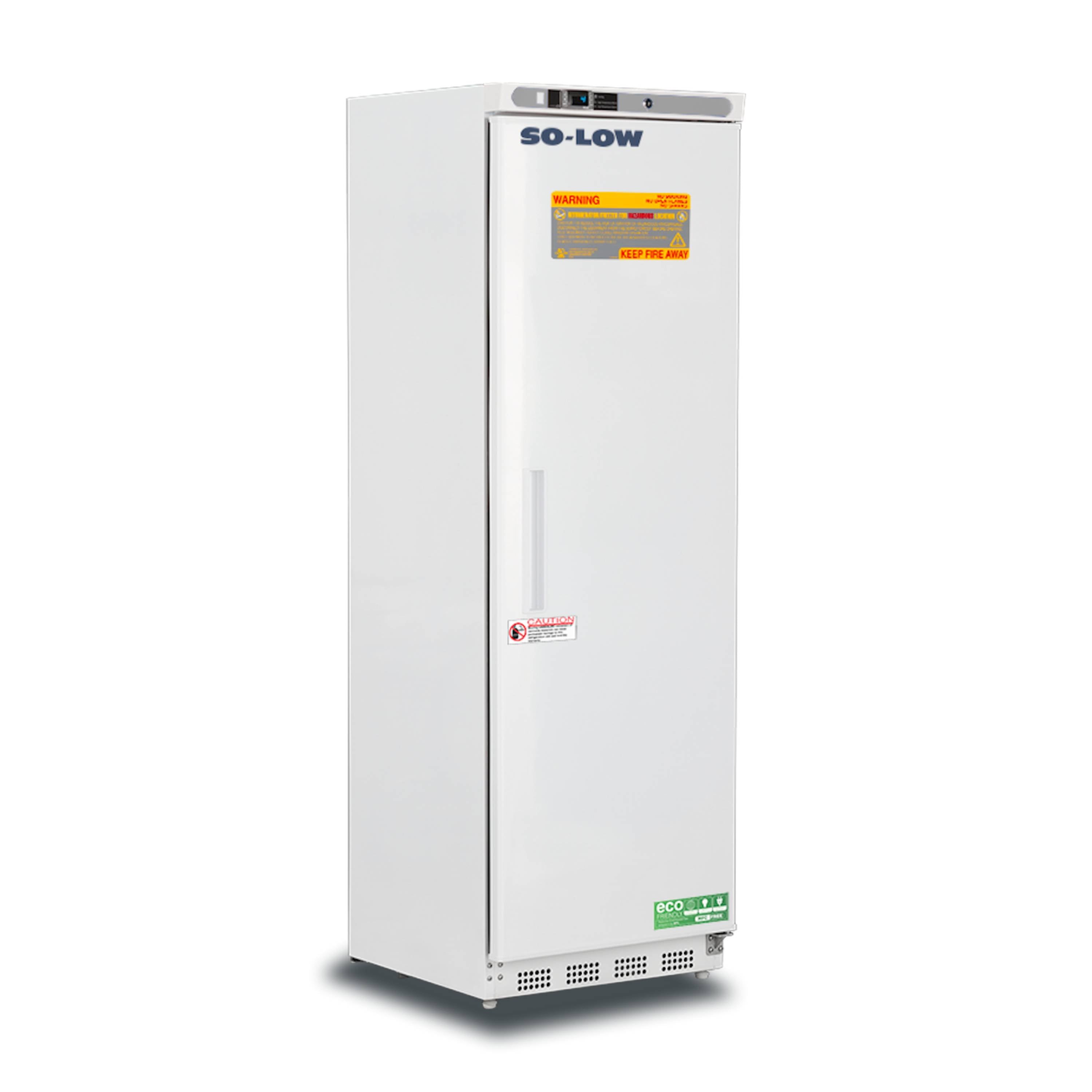

DHH4-14SDRX

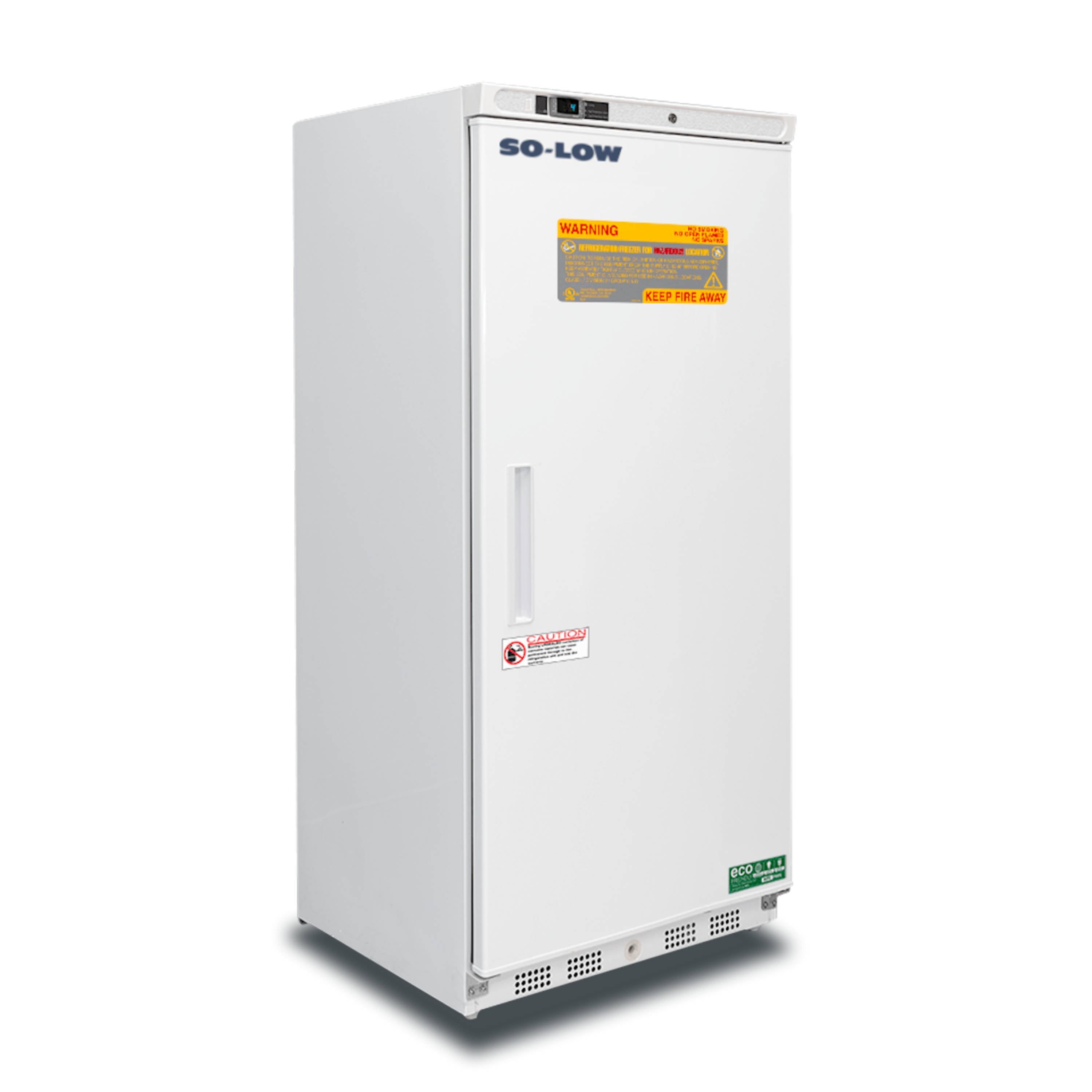

DHH4-17SDRX

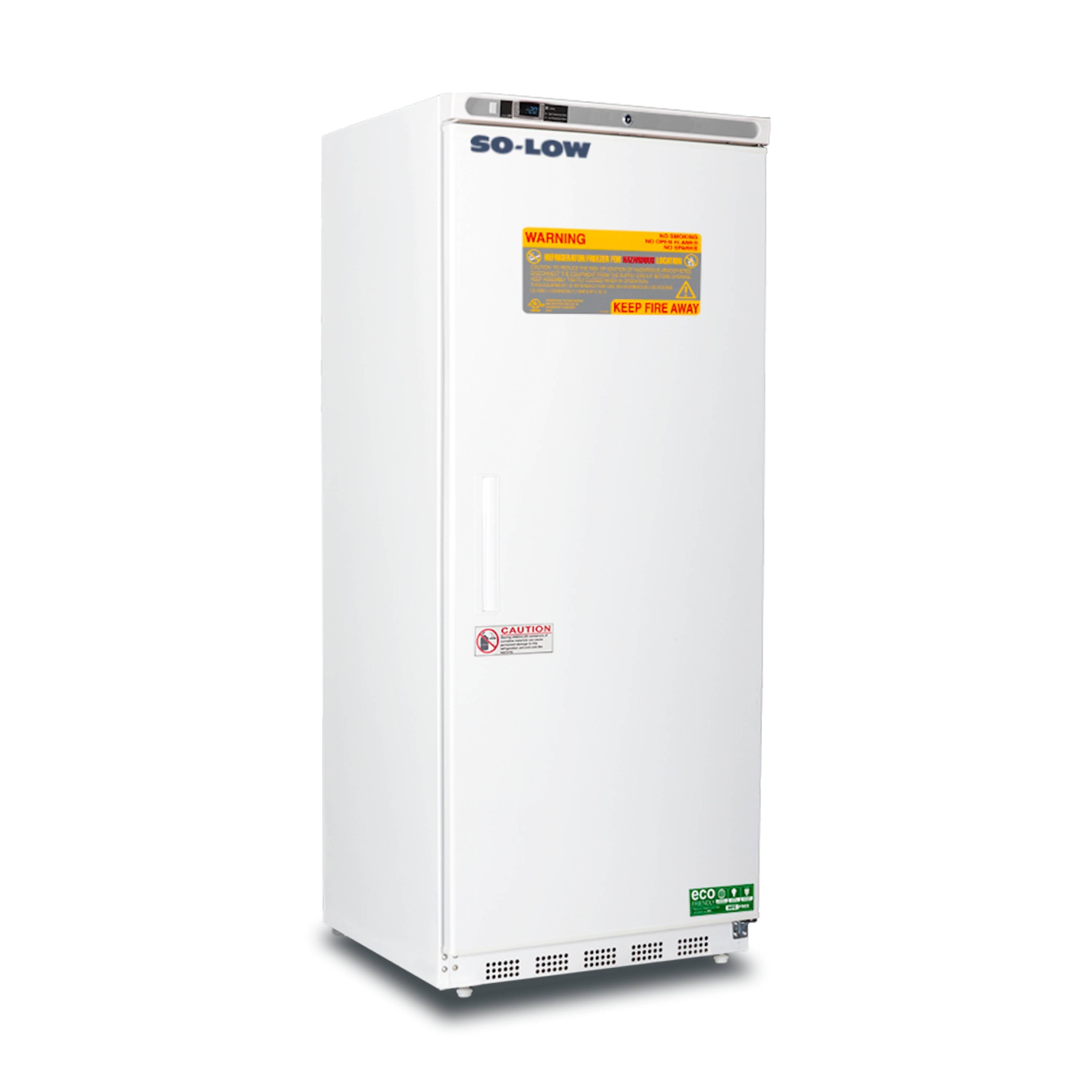

DHH4-20SDRX

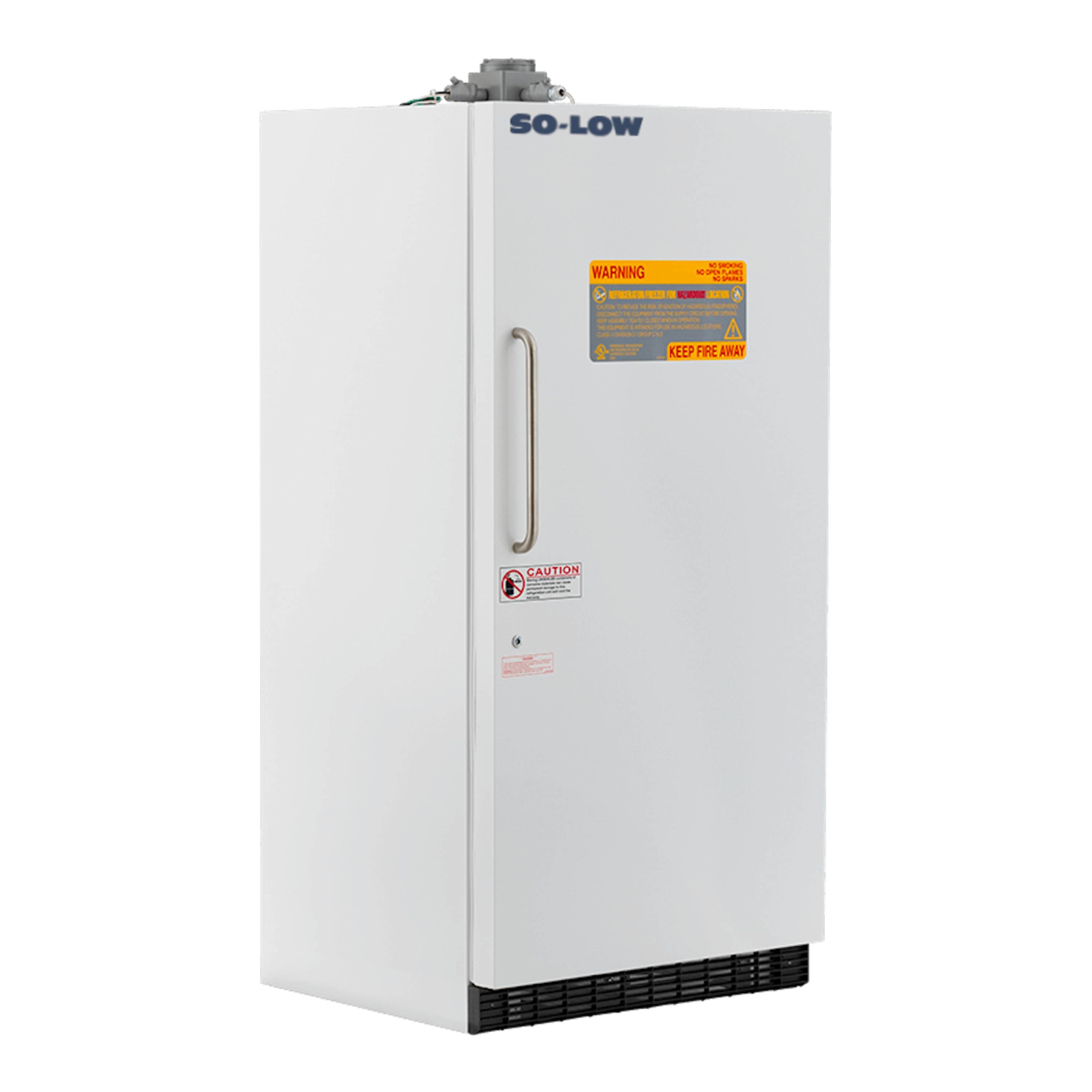

DHH4-30SDRX

Manufacturer

So-Low

Capacity [ Cubic Feet ]

5

14

17

20

30

Capacity [ Liters ]

141

396

481

566

849

Temperature Range [ °C ]

1°C to 10°C

Temperature Range [ °F ]

34°F to 50°F

 33°F to 50°F

Dimensions

[ W x D x H ]

Exterior [ Inches ]

23.75" x 23.75" x 32.25"

 23.5" x 24.5" x 73"

30.75" x 28.5" x 67.75"

34.75" x 29" x 74.50"

35.75" x 35" x 77.5"

Interior [ Inches ]

20.25" x 17.25" x 27"

19.75" x 16.75" x 63"

26.25" x 20.75" x 58.50"

24.75" x 20.75" x 65.25"

32" x 22.5" x 65"

Model No.

MV4-6UCXR

DHH4-14SDRX

DHH4-17SDRX

DHH4-20SDRX

DHH4-30SDRX

Voltages Available

115 Volts 60 Hertz 1 Phase

Amperage

15 Amp Dedicated Line
1.2 Running Amps

3 Running Amps

6 Running Amps

Plug Configuration

3-Wire Hardwired

-

-

-

-

Supply Plug

 -

Not Supplied. Must be Hardwired

Certification(s)

ETL Listed
ATEX Non-sparking components

 ETL Listed

 UL Listed

Model No.

MV4-6UCXR

DHH4-14SDRX

DHH4-17SDRX

DHH4-20SDRX

DHH4-30SDRX

Temperature

Control

                             Digital Display

Adjustable Mechanical Thermostat

Min / Max Temperature

Display and Reset

Temperature

Alarm

Audible High / Low Alarm

Alarm Relay

Dry Contacts

Model No.

MV4-6UCXR

DHH4-14SDRX

DHH4-17SDRX

DHH4-20SDRX

DHH4-30SDRX

Defrost

Cycle

Manual

Air Circulation

Direct Cooling

Forced Air

Gravity Flow

Compressor(s)

Hermetic Compressor

Refrigeration

R600a

R404A

Insulation

EPA compliant H.D.U.F.

High Density Urethane

Polyurethane

Foam

Opening

1 Front Door

Opening Type

Hinged

Door Material

Insulated Steel

Lockable Door

Keyed Lock

Storage

3 Adjustable Shelves

5 Adjustable Shelves

Exterior

Painted Steel

Interior

Painted Steel

Leveling Legs

4

Warranty

2 Years Parts and Labor
