This is a horizontally mounted, double compartment photo-electrochemical H-Cell used to simultaneously investigate thin film photo-anodes and cathodes. The cell elements are made of PEEK. It well fits aqueous (EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane), so the electrochemical products appearing at photo-anode and cathode do not affect the opposite electrode.

Application note:

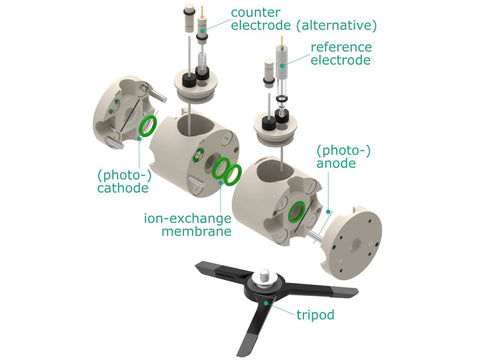

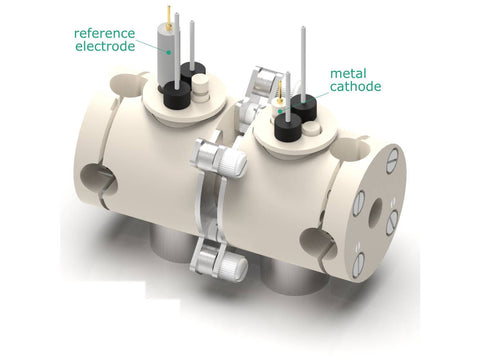

This cell allows several approaches to perform measurements in 2- or 3-electrode setups. It is designed to investigate performance of a thin film photo-anode (e.g. nanocrystalline material or conducting polymer) deposited on a rigid or flexible transparent substrate (typically fused quartz glass). The cathode (counter electrode) is mounted in the second chamber either in a top casing or attached on the side of the cell as a thin film deposited on rigid or flexible substrate. The reference electrode is mounted in a top casing of the same chamber as the photo-anode. Various auxiliary electrodes are suitable for this cell including metal wire, gauze and foil electrodes as well as non-metal electrodes and thin films. Typical applications include: basic photochemistry, photolytic water splitting, photoinduced charge separation and photocorrosion.

Specification:

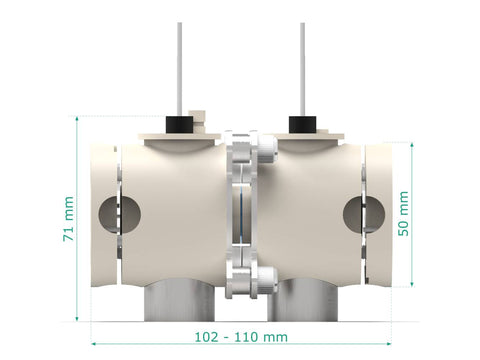

Nominal exposure area: 1 cm² or 4.155 cm²
Minimum electrolyte volume: 2x10 mL
Maximum electrolyte volume: 2x15 mL
Electrode plug diameter: 6 mm
Recommended substrate size: 25 mm x 25 mm
Maximum substrate thickness: 3 mm

Product Includes:

2 x lid – 0001CPEMA
2 x chamber
2 x sample mount
2 x pillar – 0031PSSMA
4 x plug
