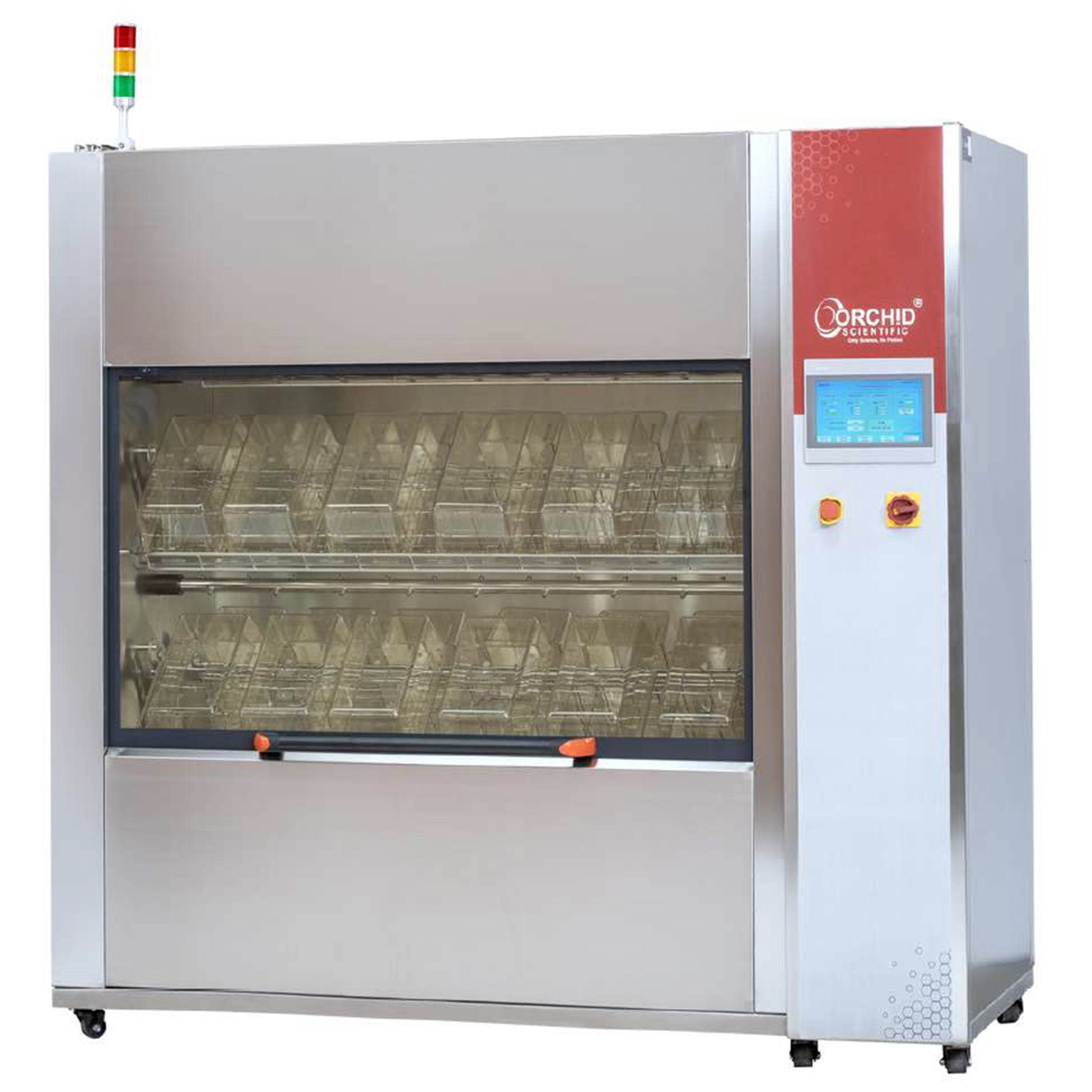

Orchid Scientific Animal Cage and Bottle Washer (Cabinet Type)
Orchid Scientific's CW-C1 Series Cage and Bottle Washer is designed for facilities that require a heavy-duty washer with the same features as a floor mounted cage washer but in a cabinet configuration. The automatic cage washer equipment designed by Orchid Scientific is according to the requirements of users in the laboratory animal industry for cage cleaning. It uses hot water combined with acidic or alkaline cleaning agent, high pressure and large flow spray method to achieve the automatic spray cleaning process for cage boxes, box covers, metal gride and drinking bottles.
Designed To Match Requirements of Users in the Laboratory Animal Industry for Cage Cleaning.
Principle: Water in the cleaning chamber is circulated using the circulating pump and sprayed at higher pressure over the uncleaned cages through the spraying arm and nozzles so as to clean the cages. High-temperature purified rinsing water is recycled as the cleaning water for the next process, saving resources.
Structure
- Door: Vertical lift glass door.
- Door sealing system: Inflatable expansion silicon resin seal.
Material
- The shell material is stainless steel 304.
Control System
- PLC control with 9-inch touch screen HMI.
- Two cleaning types: Quick Clean (without detergent) and Standard Cleaning (with detergent) with 12 protocols in each type.
- Equipped with automatic start program.
Cleaning System
- Standard Cycle: Cleaning temperature ≥55℃, rinse temperature up to 80℃. In case of Standard cleaning method, provision for detergent time from 1 to 200sec is given and rinsing time is 1 to 18 sec with 1 to 3 times repeatability selectable as per user requirement.
- Equipment fitted with two peristatic pump/ dosing pump for acid & alkaline detergent.
- Quick cleaning method is without detergent with washing time in the range of 1 to 20min, rinsing time in the range of 1 to 200sec selectable as per user requirement.
- Cleaning volume upto 32cages/cycle, upto 100 drinking bottle/cycle (depending on cage and bottle sizes).
- Washing arm design: Three sparing arms fitted with 44 washing nozzles and 86 rinsing holes.
- Circulating pump spray cleaning (1200 L/min), equipped with variable frequency soft start function, reduce the damage to the cages.
- The rinsing system is equipped with an independent temperature control water tank, spray pipelines and spray water pumps.
- The pressure of the cleaning faucet is ≥1.5 Bar, the rinsing tap is ≥ 1.4 Bar.
- Cages and bottles can be in placed in different angles by adjusting/ tilting the angle of baskets. For increasing the holding capacity of the cages and cleaning efficiency, appropriate angle of basket must be selected.
- Equipment is fitted with Door locking device which prevents the machine from working when door is open.
- The control Panel has the emergency stop device.
- Power-off protection: automatically close the water supply and steam pipelines when the power is off.
- Pressure protection for cleaning chamber: It has a pressure release device to avoid excessive pressure in the cleaning chamber.
- Abnormal situation alarm: buzzer and visual.
Cage Capacity per Cycle
Ordering Information
MSE Supplies offers a variety of Orchid Scientific Products. Please contact us for more information.
